Accelerator Pedal: Inspection

Lightly move pedal pad in lateral the direction to ensure pedal deflection is in specified range.
If excessive deflection is noted, replace bushing and clip with new ones.
Deflection of accelerator pedal:

Service limit

+/-2.0 mm (+/-0.079 in) or less

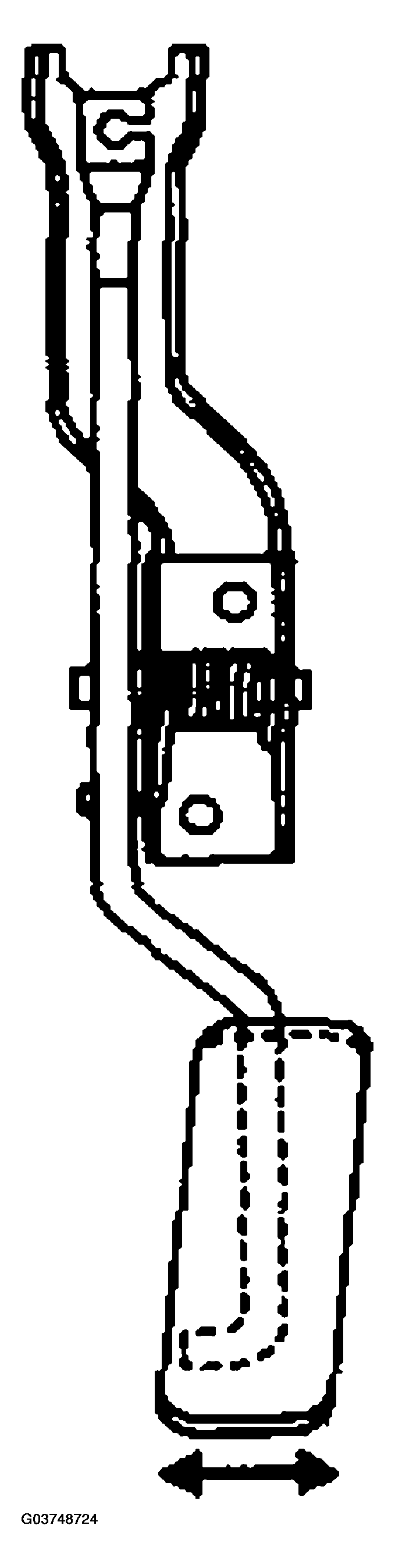

Fig 1: Identifying Pedal Deflection
Courtesy of SUBARU OF AMERICA, INC.
