Accelerator Pedal: Disassembly

Remove the clip, and then remove the accelerator pedal from the bracket.
Pull out the spring pin, and then remove the accelerator pedal from the accelerator pedal lever.

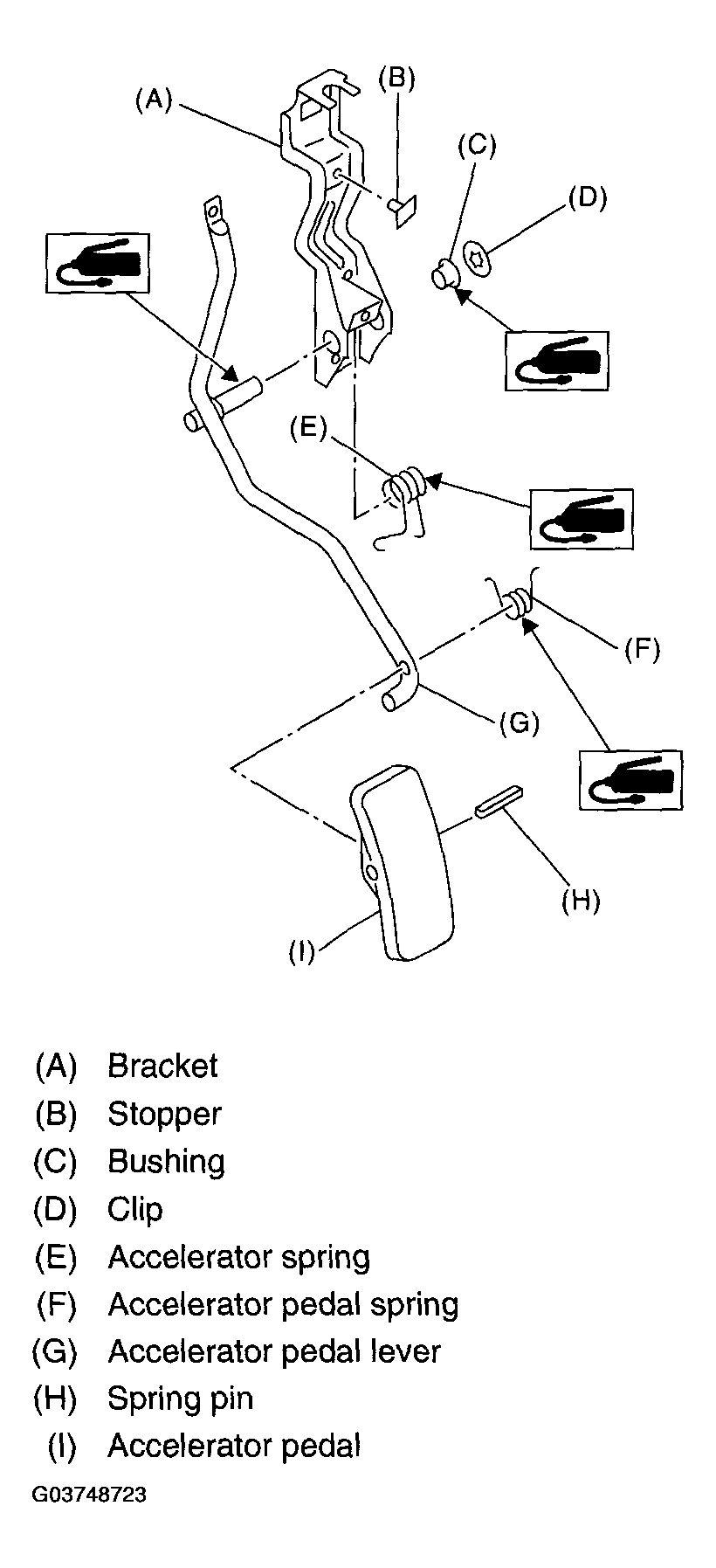

Fig 1: Identifying Accelerator Pedal Components
Courtesy of SUBARU OF AMERICA, INC.
