Fuel Line

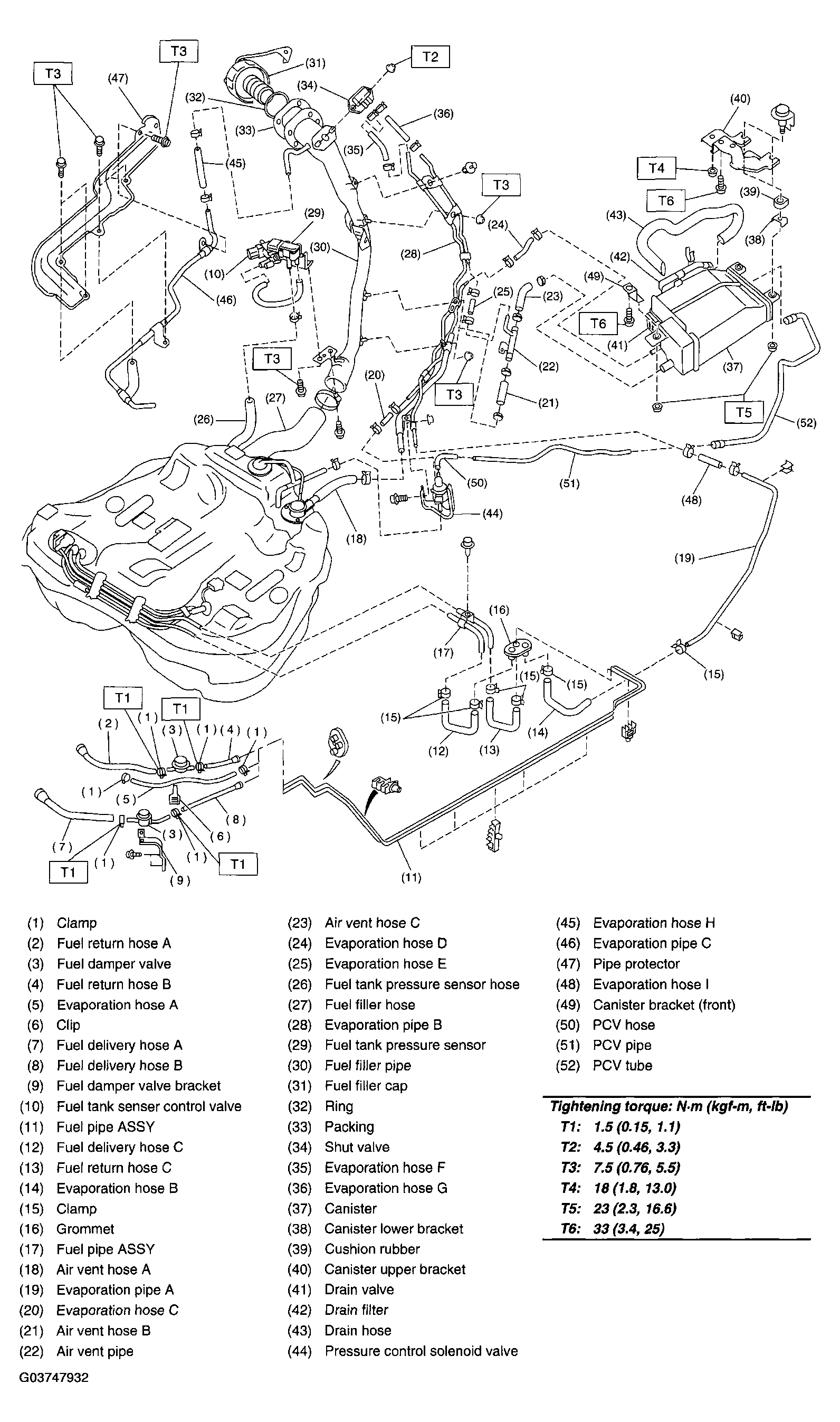

Fig 1: Exploded View Of Fuel Line With Torque Specifications
G03747932Courtesy of SUBARU OF AMERICA, INC.
