Fuel Pump Relay: Removal

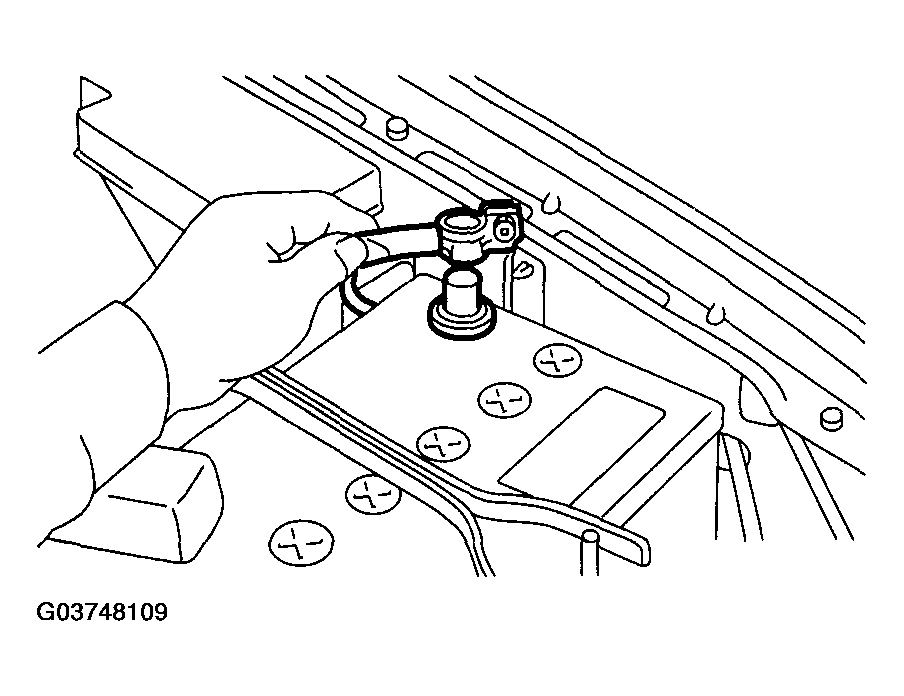

- Disconnect ground cable from battery.
Courtesy of SUBARU OF AMERICA, INC.
- Remove lower cover. < Ref. to
REMOVAL
, Instrument Panel Assembly. >

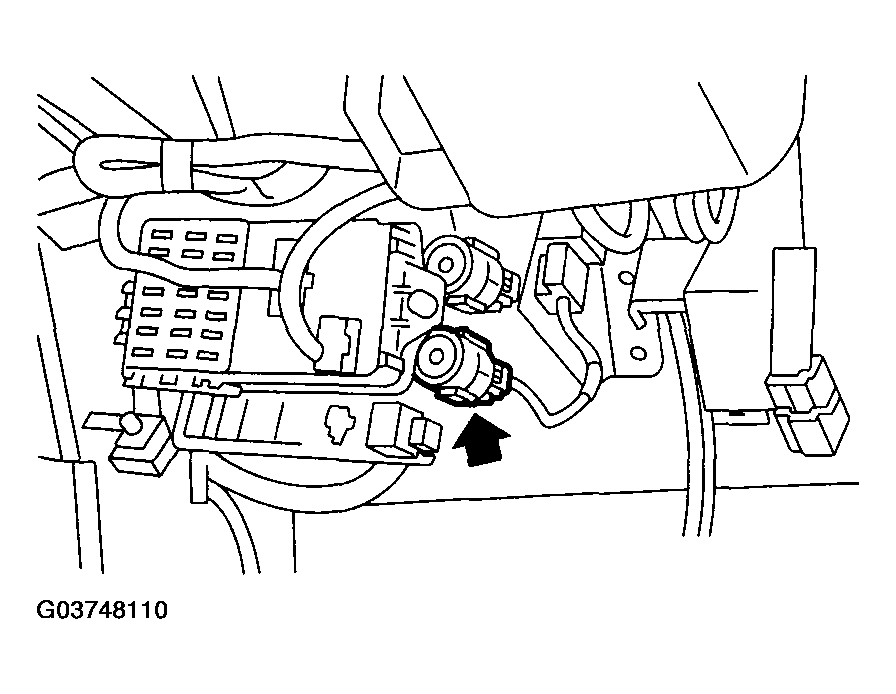

- Disconnect connector from fuel pump relay.
Courtesy of SUBARU OF AMERICA, INC.
- Remove fuel pump relay from mounting bracket.
