LH Side

Install in the reverse order of removal.

NOTE: Replace O-rings with new ones.

Fig 1: Replacing O-Rings (LH Side)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

5.0 N.m (0.51 kgf-m, 3.7 ft-lb)

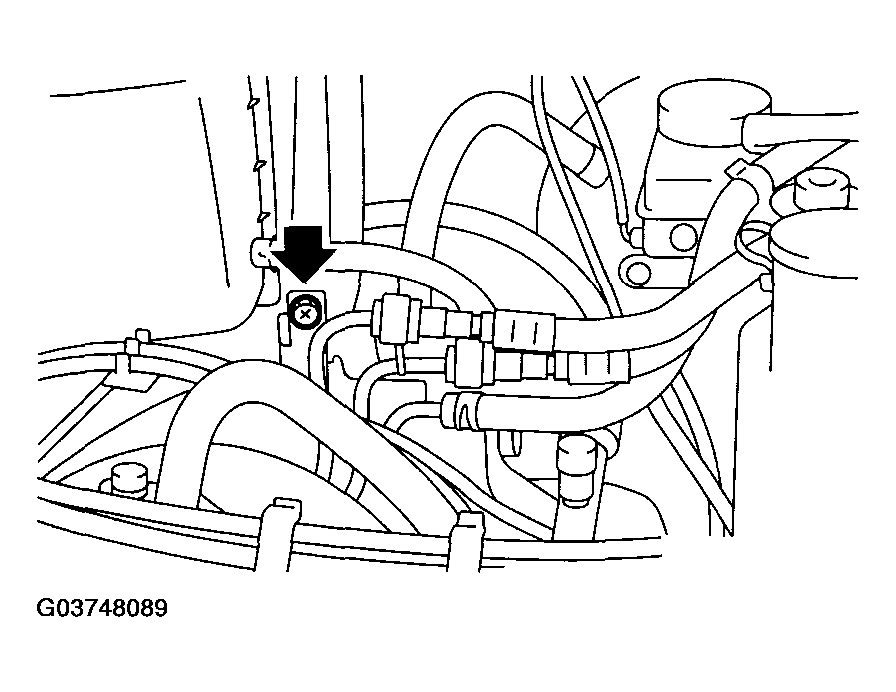

Fig 2: Tightening Bolt Holding Fuel Pipe On Left Side Intake Manifold (LH Side)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

19 N.m (1.9 kgf-m, 13.7 ft-lb)

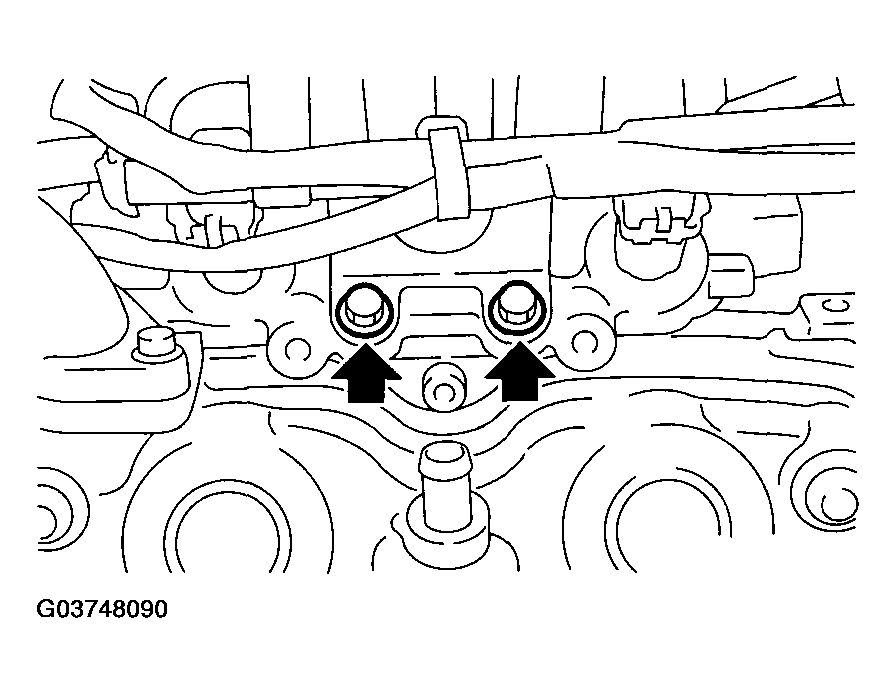

Fig 3: Tightening Bolt Holding Injector Pipe To Intake Manifold (LH Side)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

19 N.m (1.9 kgf-m, 13.7 ft-lb)

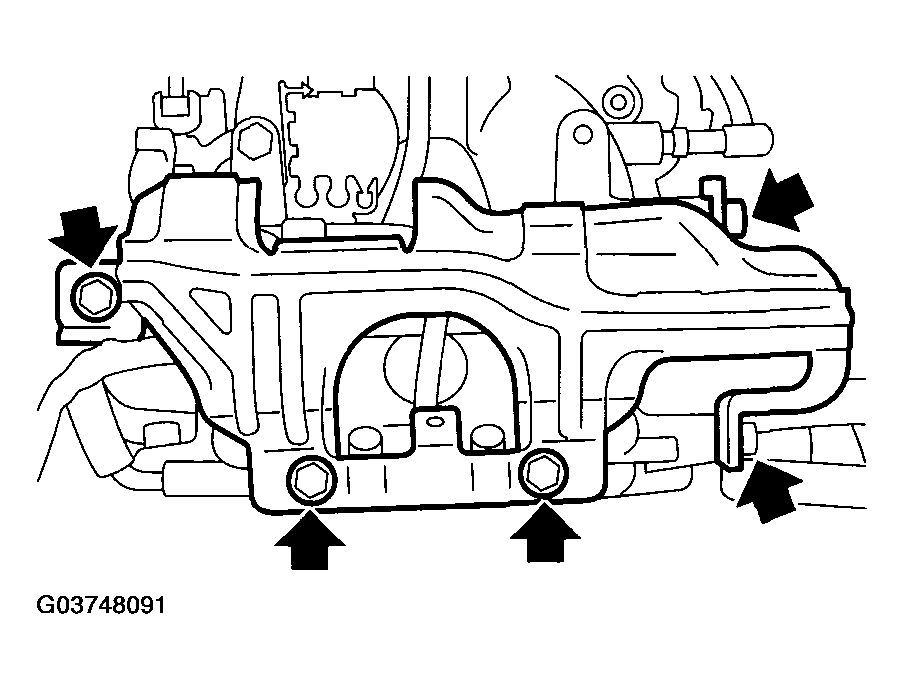

Fig 4: Installing Fuel Pipe Protector LH

Courtesy of SUBARU OF AMERICA, INC.
