Engine Coolant Temperature Sensor: Removal

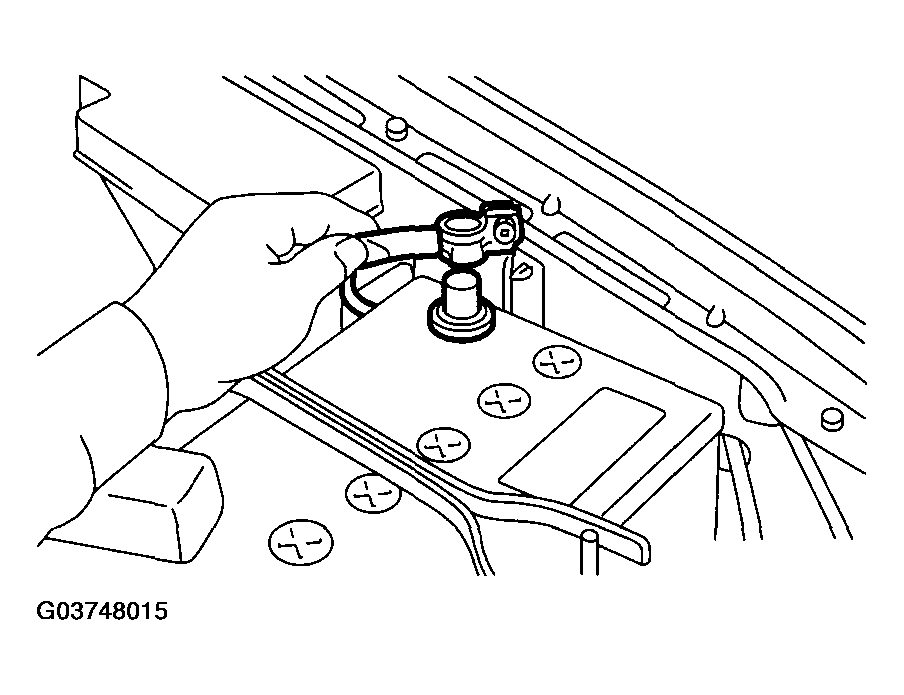

- Disconnect ground cable from battery.
Courtesy of SUBARU OF AMERICA, INC.
- Remove air intake duct and air cleaner case.
< Ref. to
REMOVAL
, Air Intake Duct. > and < Ref. to
REMOVAL
, Air Cleaner Case. >

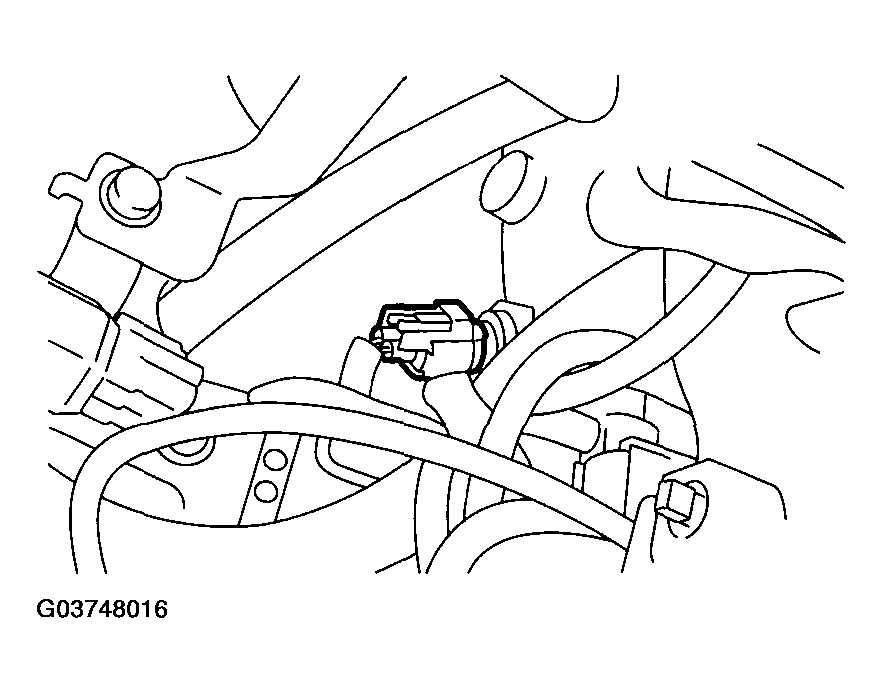

- Disconnect connector from engine coolant temperature sensor.
Courtesy of SUBARU OF AMERICA, INC.
- Remove engine coolant temperature sensor.
