Camshaft Position Sensor: Removal
- Disconnect ground cable from battery.
Courtesy of SUBARU OF AMERICA, INC.

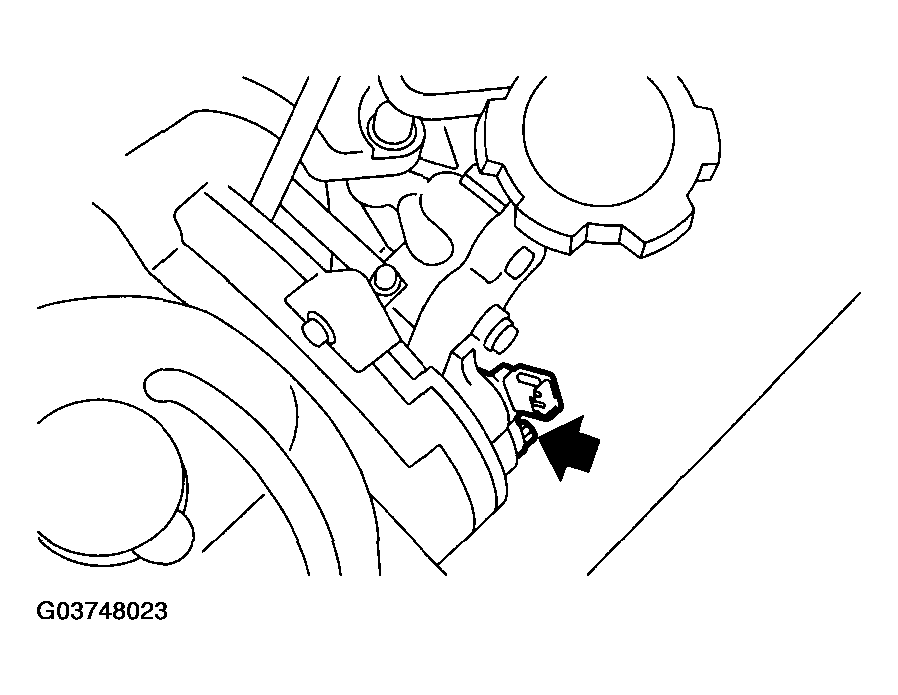

- Disconnect connector from camshaft position sensor.
Courtesy of SUBARU OF AMERICA, INC.
- Remove bolt which installs camshaft position sensor to camshaft position sensor support.
Courtesy of SUBARU OF AMERICA, INC.
- Remove bolt which installs camshaft position sensor support to camshaft cap LH.
Courtesy of SUBARU OF AMERICA, INC.
- Remove camshaft position sensor and camshaft position sensor support as a unit.
- Remove camshaft position sensor itself.
Courtesy of SUBARU OF AMERICA, INC.
