Front Regulator and Motor Assembly: Removal
- Remove door trim. < Ref. to
REMOVAL
, Front Door Trim . >
- Remove sealing cover. < Ref. to
REMOVAL
, Front Sealing Cover .>
- Remove inner remote. < Ref. to
REMOVAL
, Front Inner Remote .>
- Remove door glass. < Ref. to
, REMOVAL , Front Door Glass. >
- Disconnect electrical connector of regulator motor.

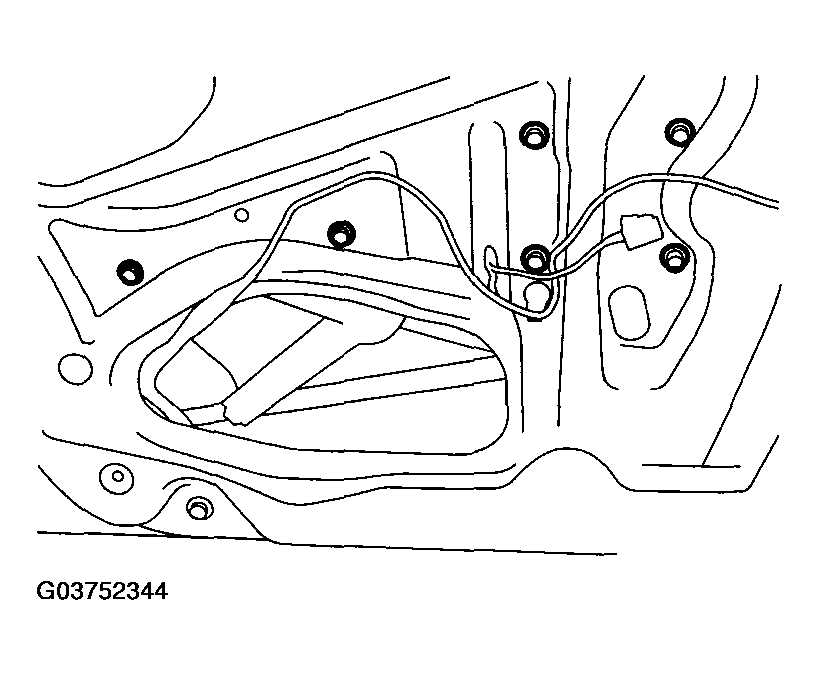

- Loosen four bolts and two nuts to pull out regulator assembly.
Courtesy of SUBARU OF AMERICA, INC.
- Loosen screws to remove motor assembly.
Courtesy of SUBARU OF AMERICA, INC.
