Pinout Values and Diagnostic Parameters

Transmission Control Module (TCM) I/O Signal

Part 1:

Part 2:

Part 3:

Part 4:

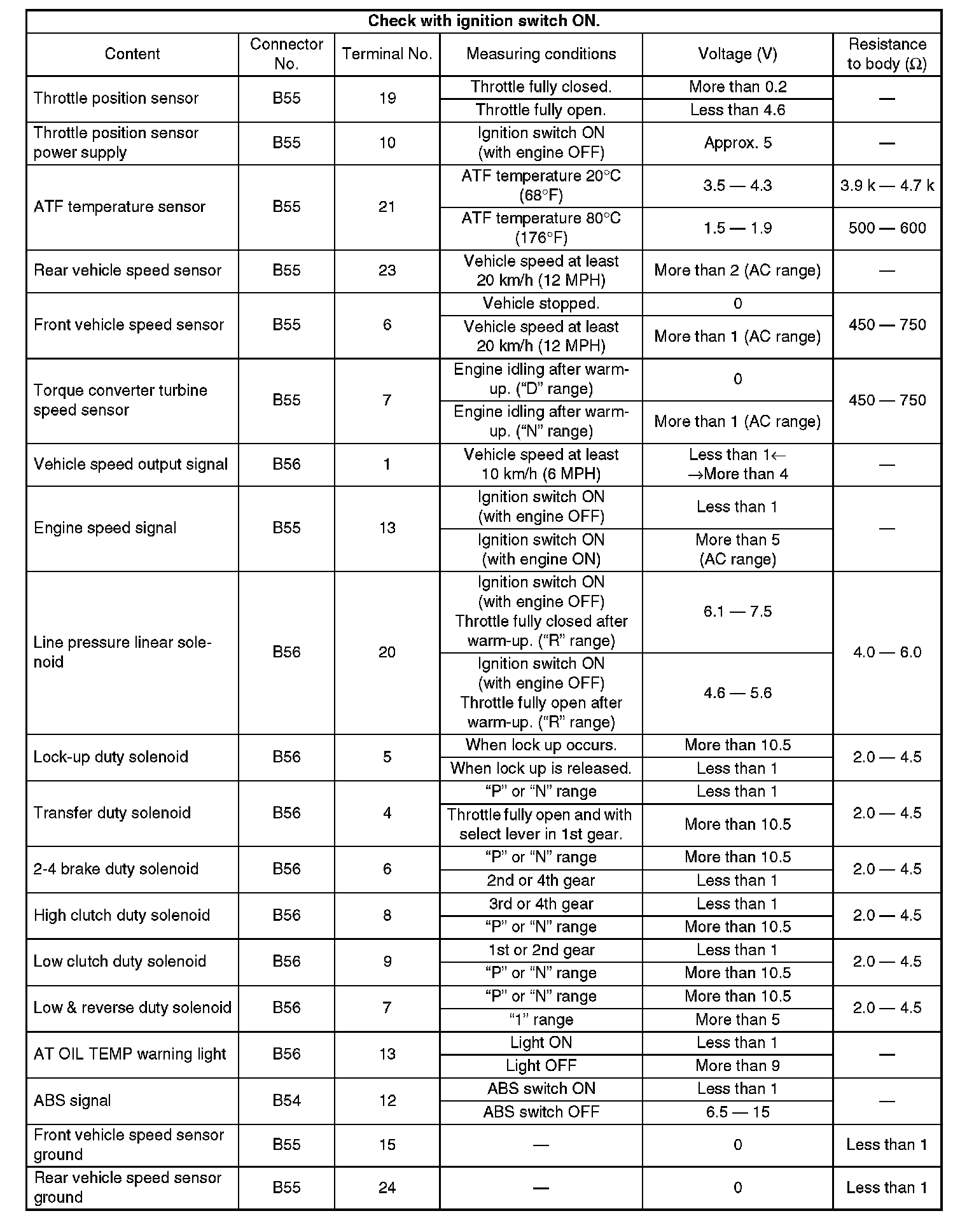

Transmission Control Module (TCM) I/O Signal Part 1:

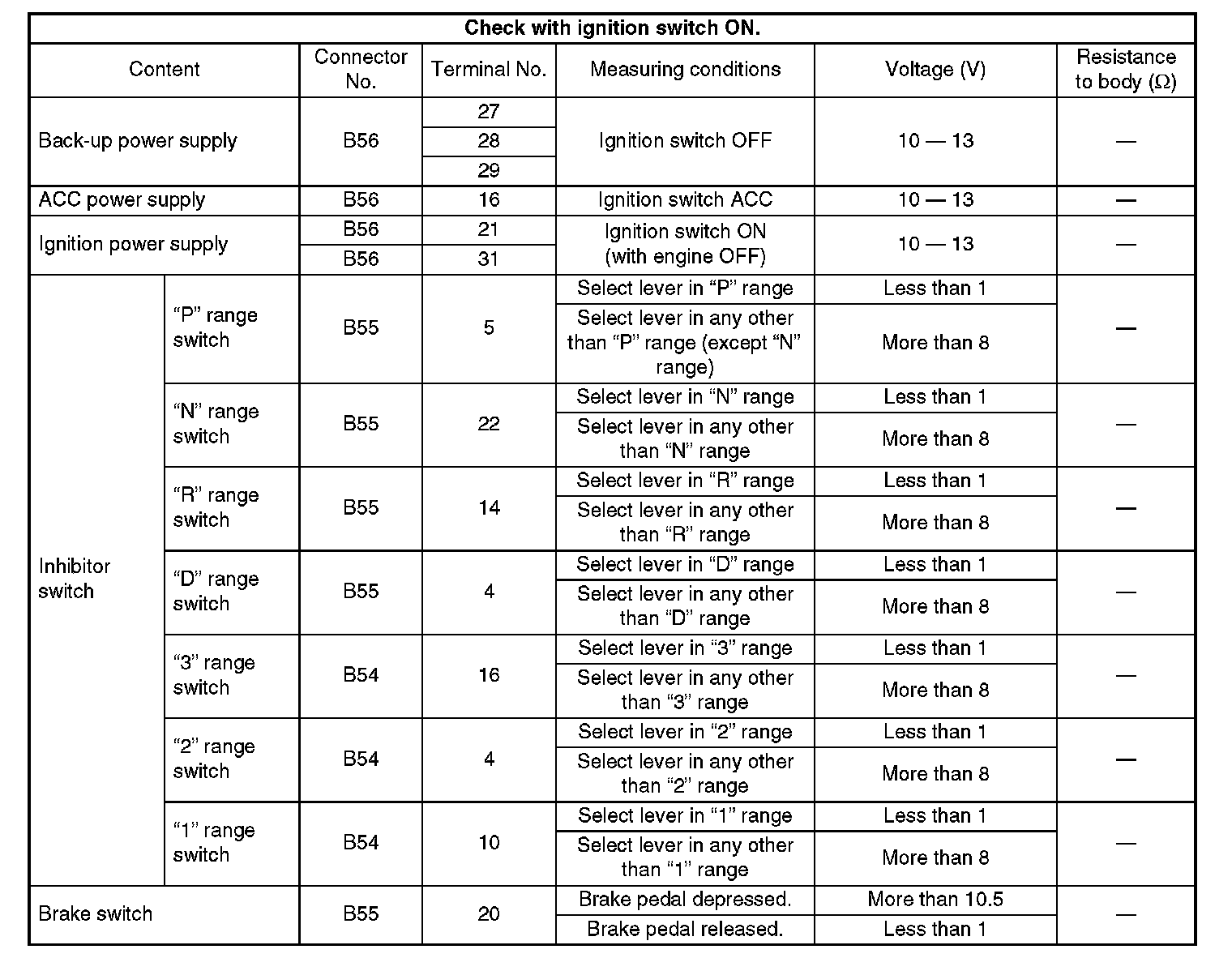

Transmission Control Module (TCM) I/O Signal Part 2:

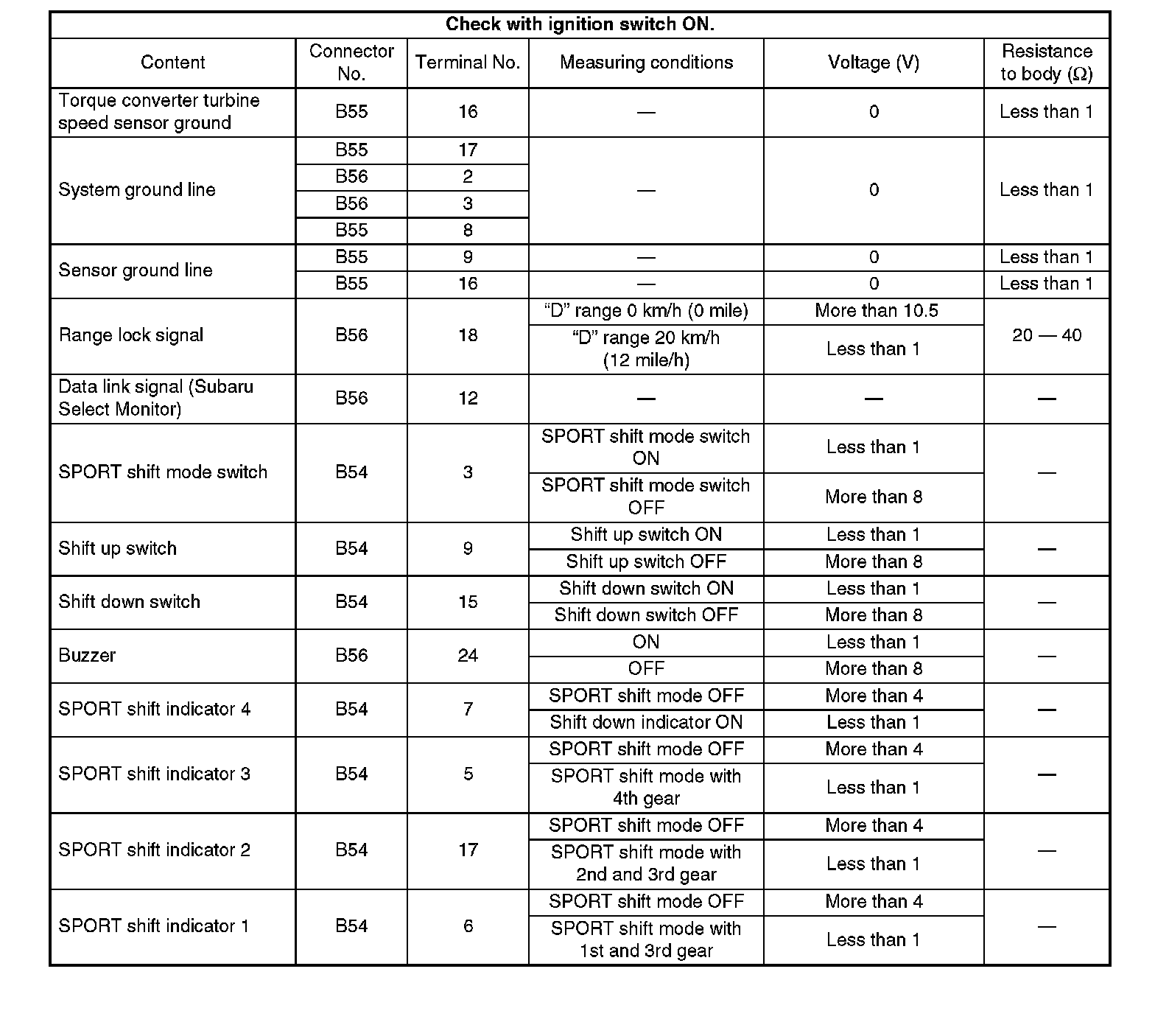

Transmission Control Module (TCM) I/O Signal Part 3:

ELECTRICAL SPECIFICATION
