Diagnostic Procedure For Select Monitor Communication

Diagnostic Procedure for Subaru Select Monitor Communication
COMMUNICATION FOR INITIALIZING IMPOSSIBLE

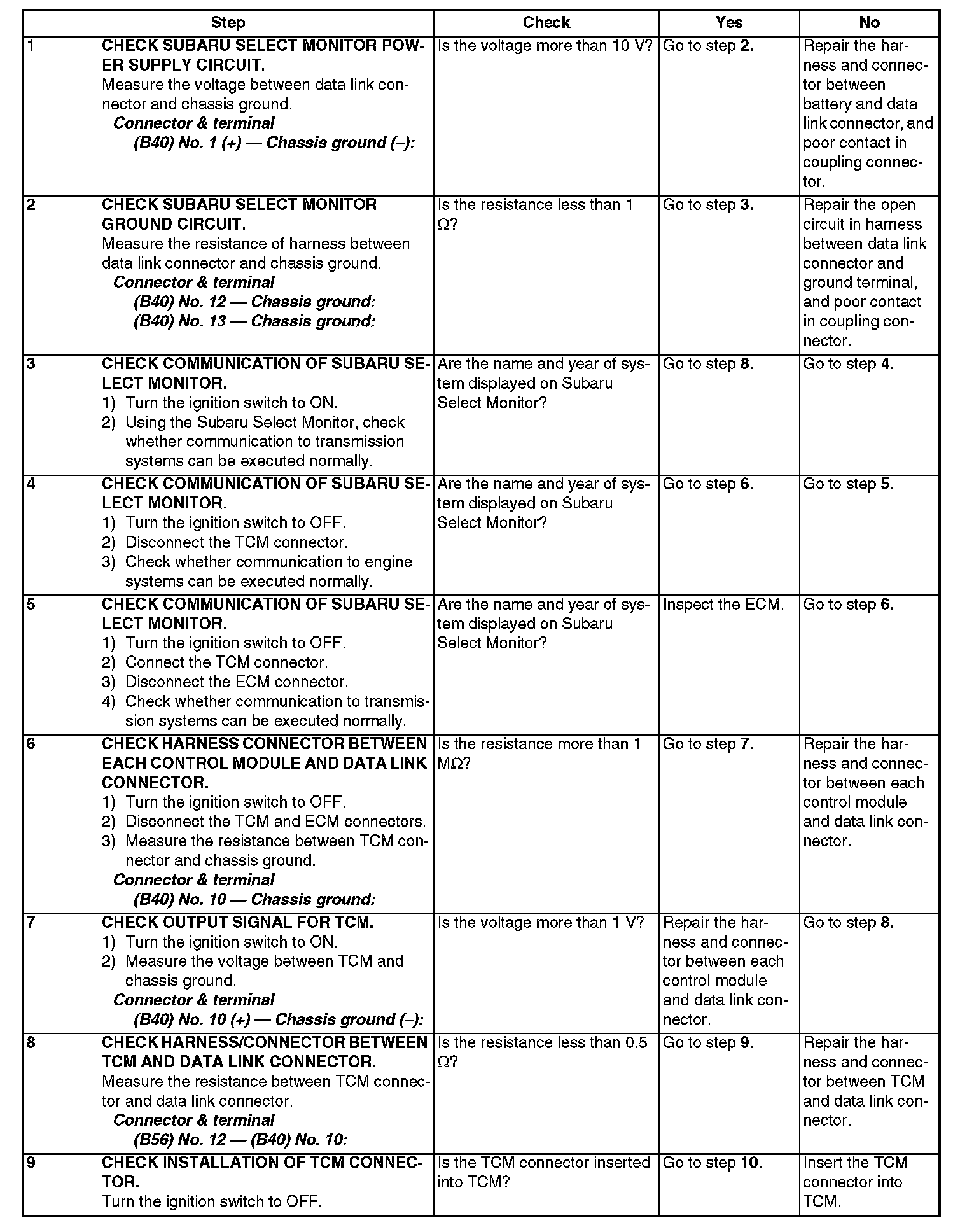

Steps 1-9:




Steps 10 & 11:






DIAGNOSIS:
^ Faulty harness connector

TROUBLE SYMPTOM:
^ Subaru Select Monitor communication failure

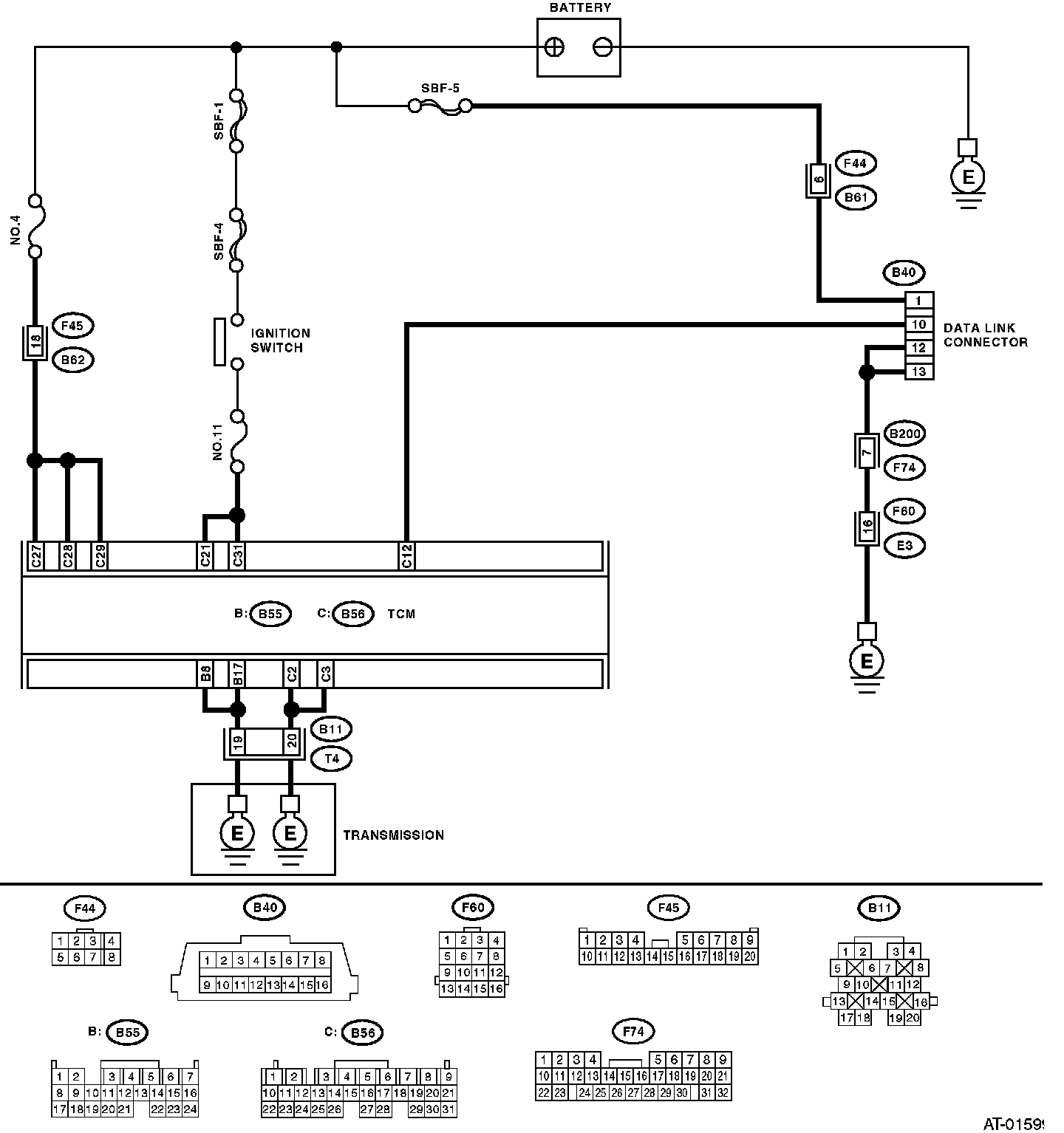

WIRING DIAGRAM
