Check Sport Shift Indicator

CHECK SPORT SHIFT INDICATOR

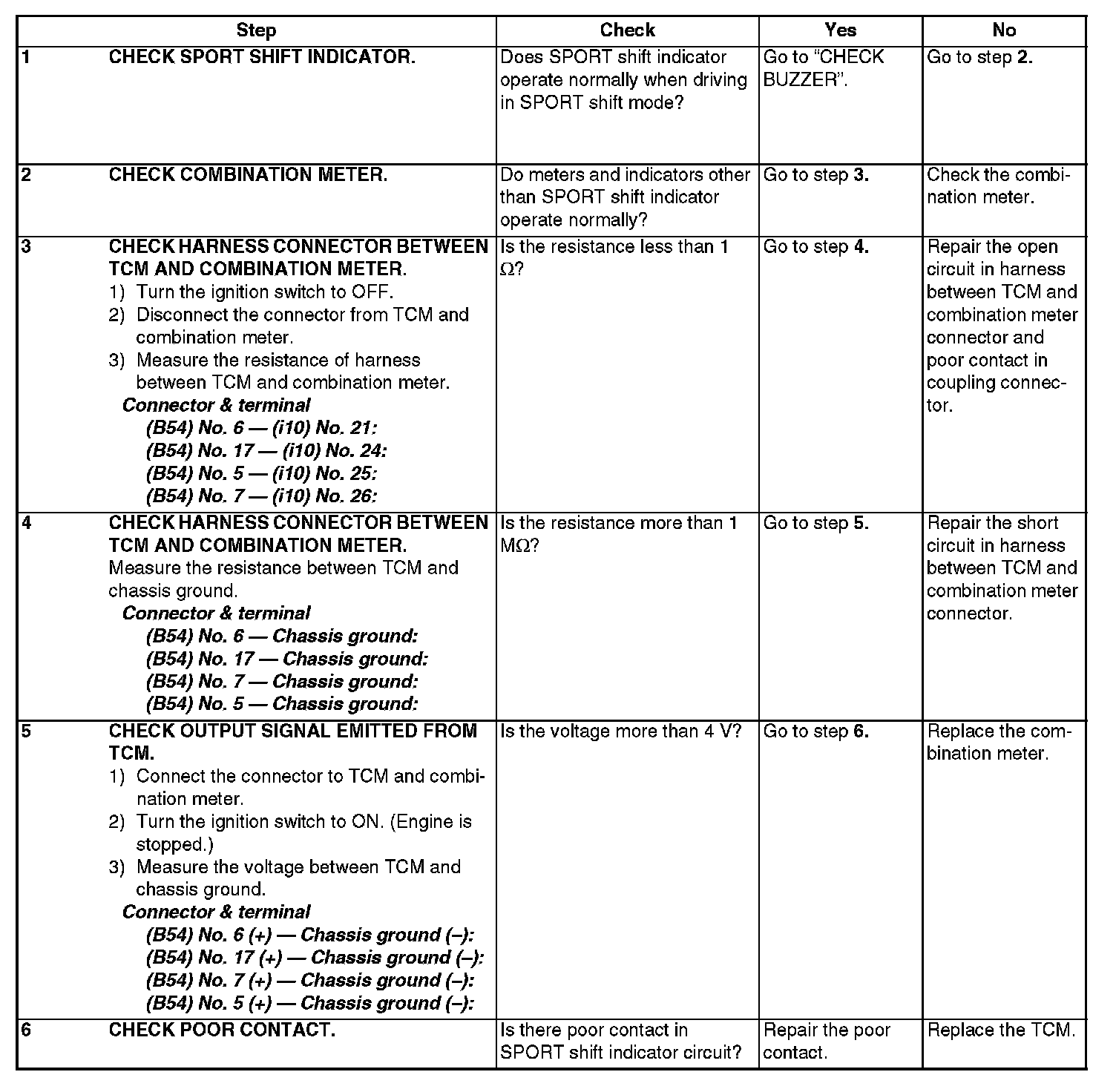

Steps 1-6:

DIAGNOSIS:
The SPORT shift indicator output signal circuit is open or shorted.

TROUBLE SYMPTOM:
^ SPORT shift indicator does not illuminate or remains illuminated.
^ SPORT shift indicator display does not change.

WIRING DIAGRAM
