Check Cruise Control Command Switch

CHECK CRUISE CONTROL COMMAND SWITCH

TROUBLE SYMPTOM:
Cruise control cannot be set. (Cancelled immediately.)

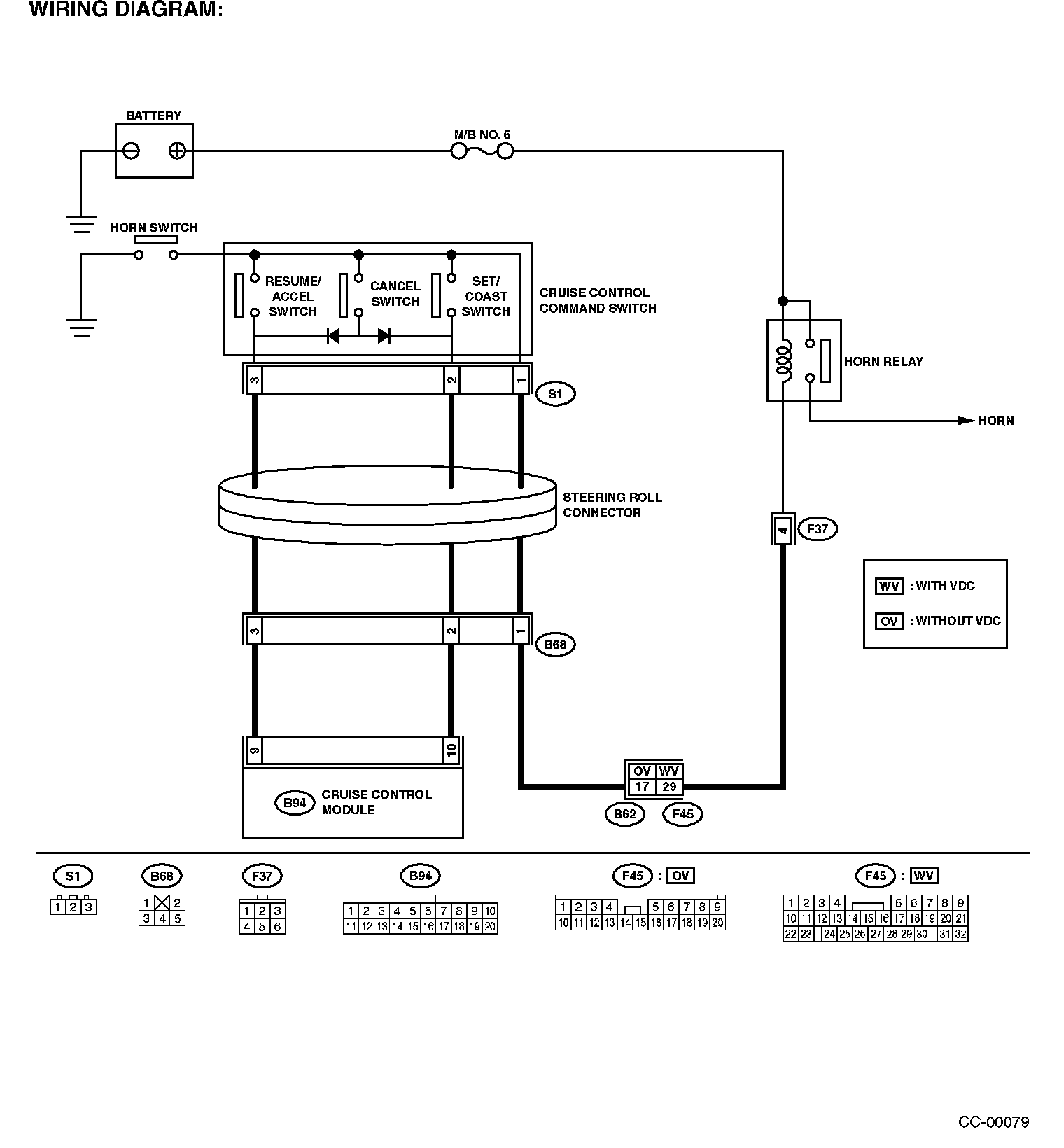

Wiring Diagram:




WIRING DIAGRAM:

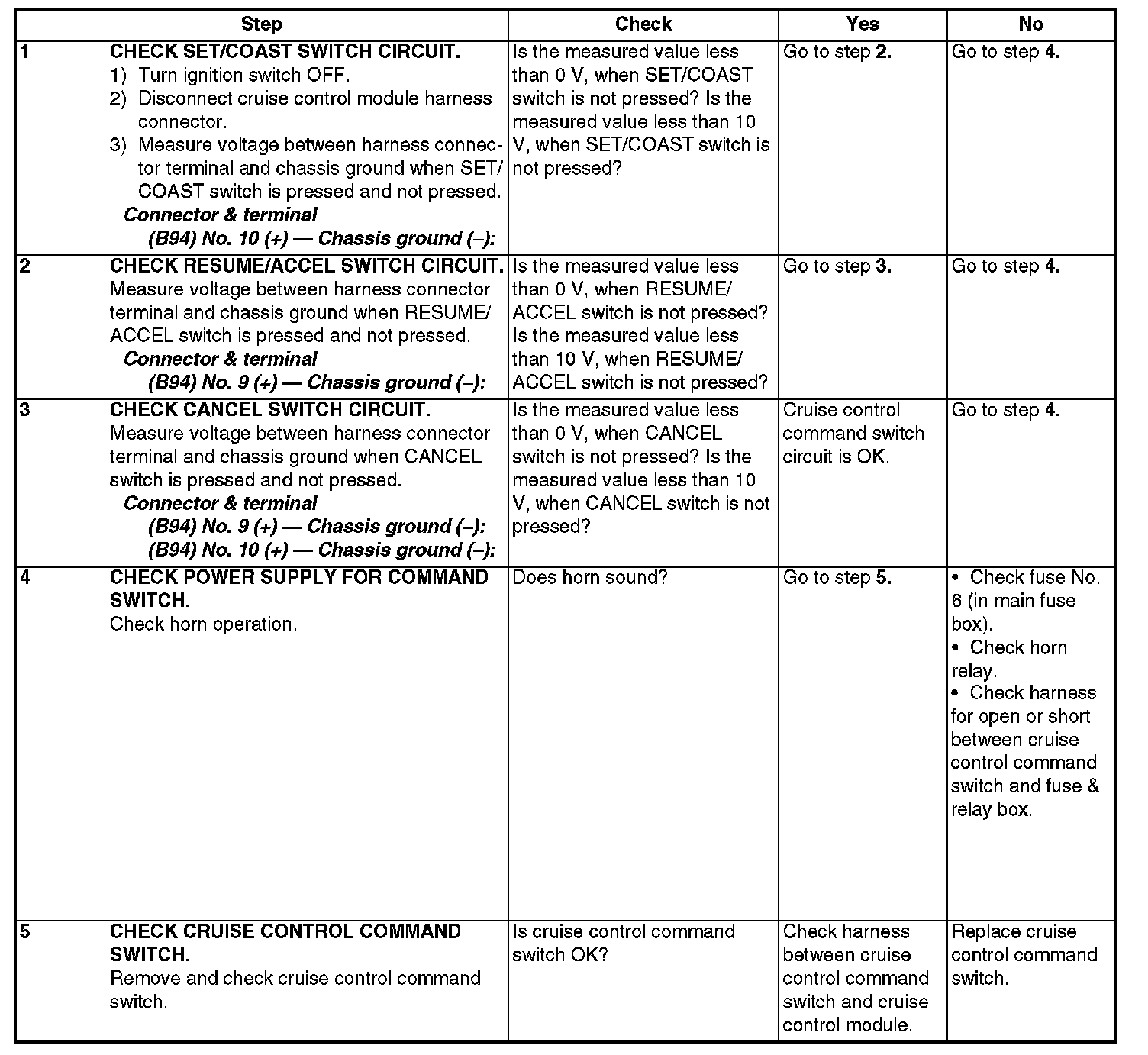

Step 1 - 5:
