Gear Train: Construction

The gear train consists of two sets of planetary gears, three sets of multi-plate clutches, two sets of multi-plate brakes and one set of one-way clutch.

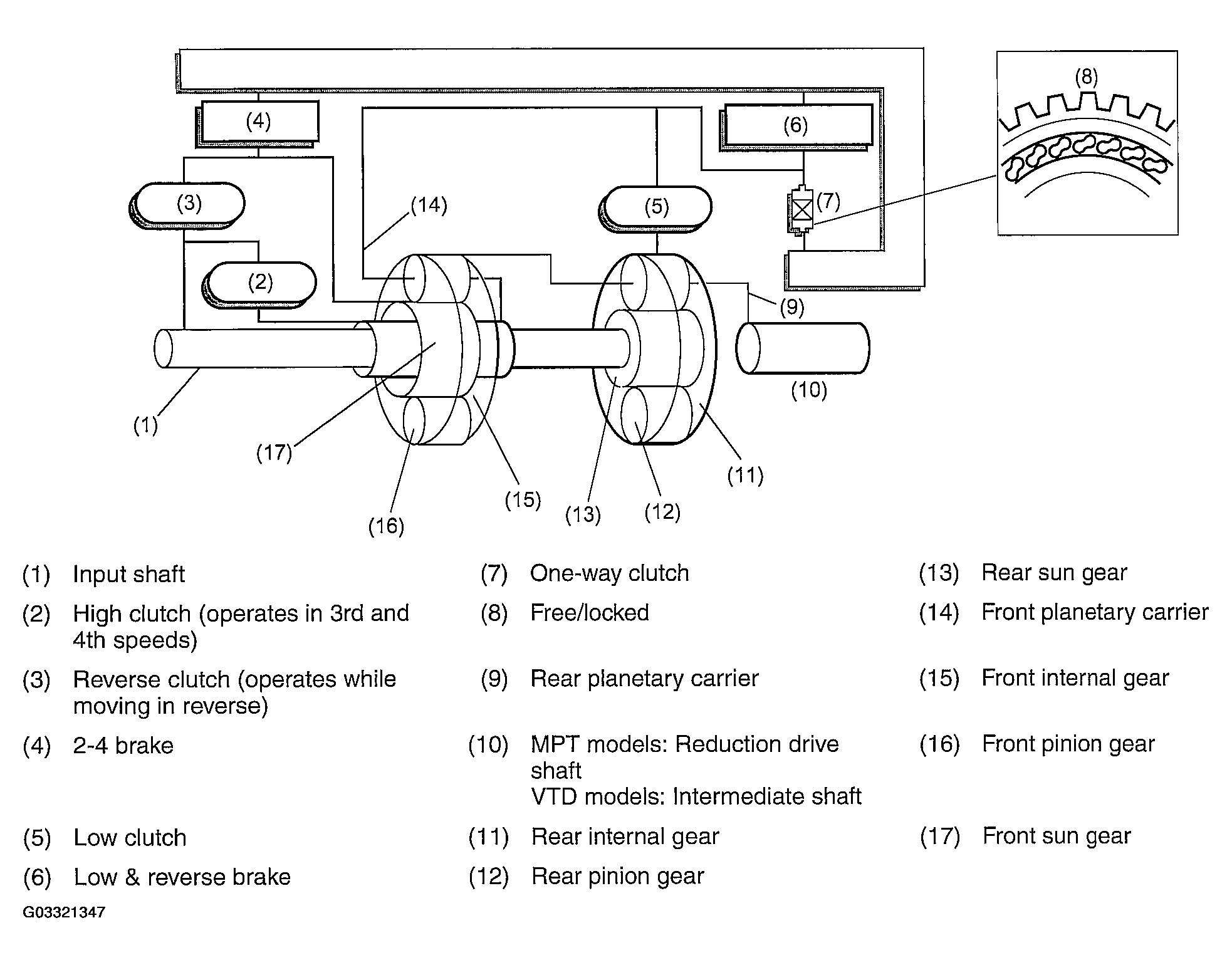

Fig 1: Identifying Gear Train Component
G03321347Courtesy of SUBARU OF AMERICA, INC.
