Turbo Models

This solenoid is mounted on the transmission hydraulic control valve. Its duty ratio is controlled by signals from the TCM. It then regulates the pressure applied to the transfer clutch to control the drive power distributed to the front and rear wheels.

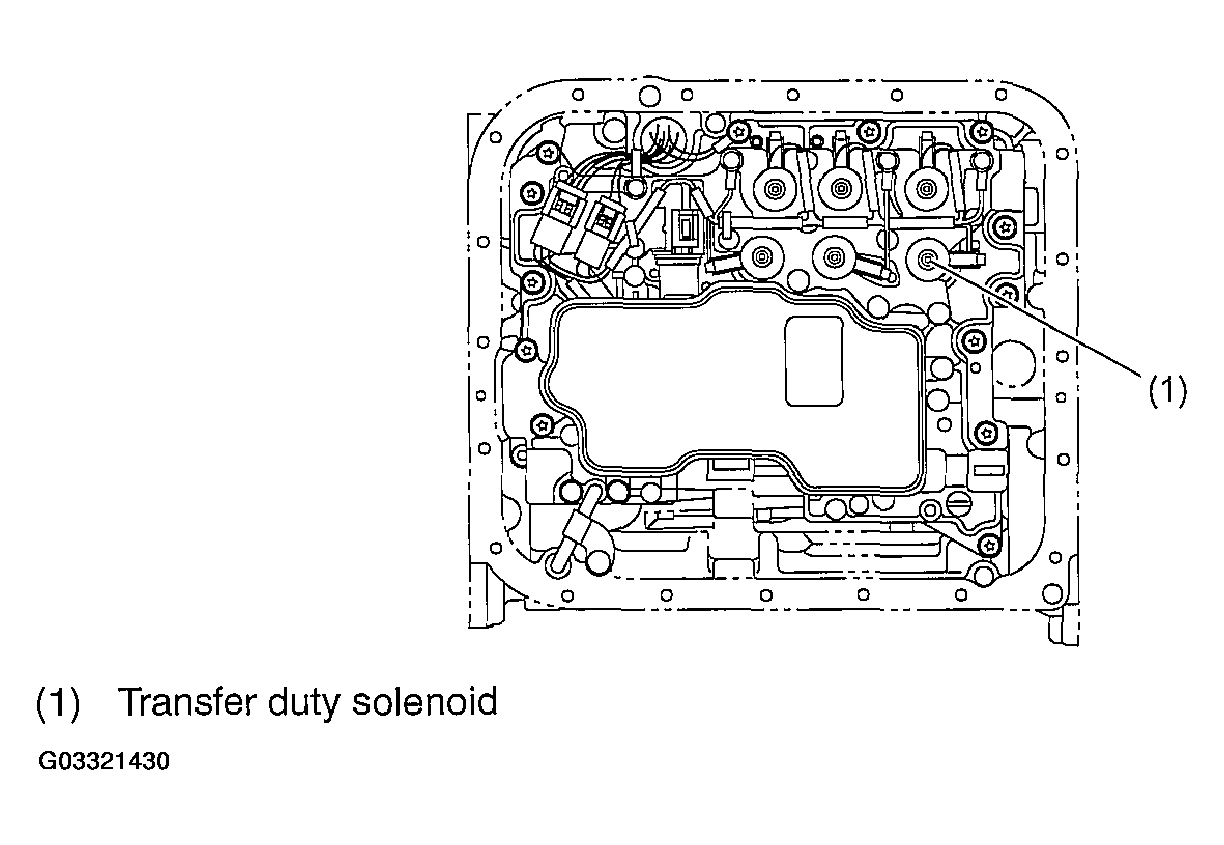

Fig 1: Identifying Transfer Duty Solenoid Turbo Models

Courtesy of SUBARU OF AMERICA, INC.
