Sports Shift Solenoid

This solenoid is mounted on the transmission hydraulic control valve body. It is turned ON or OFF according to signals from the TCM. Thus the sports shift control valve is controlled when 1st speed gear is selected in sports shift mode, (non-turbo models)

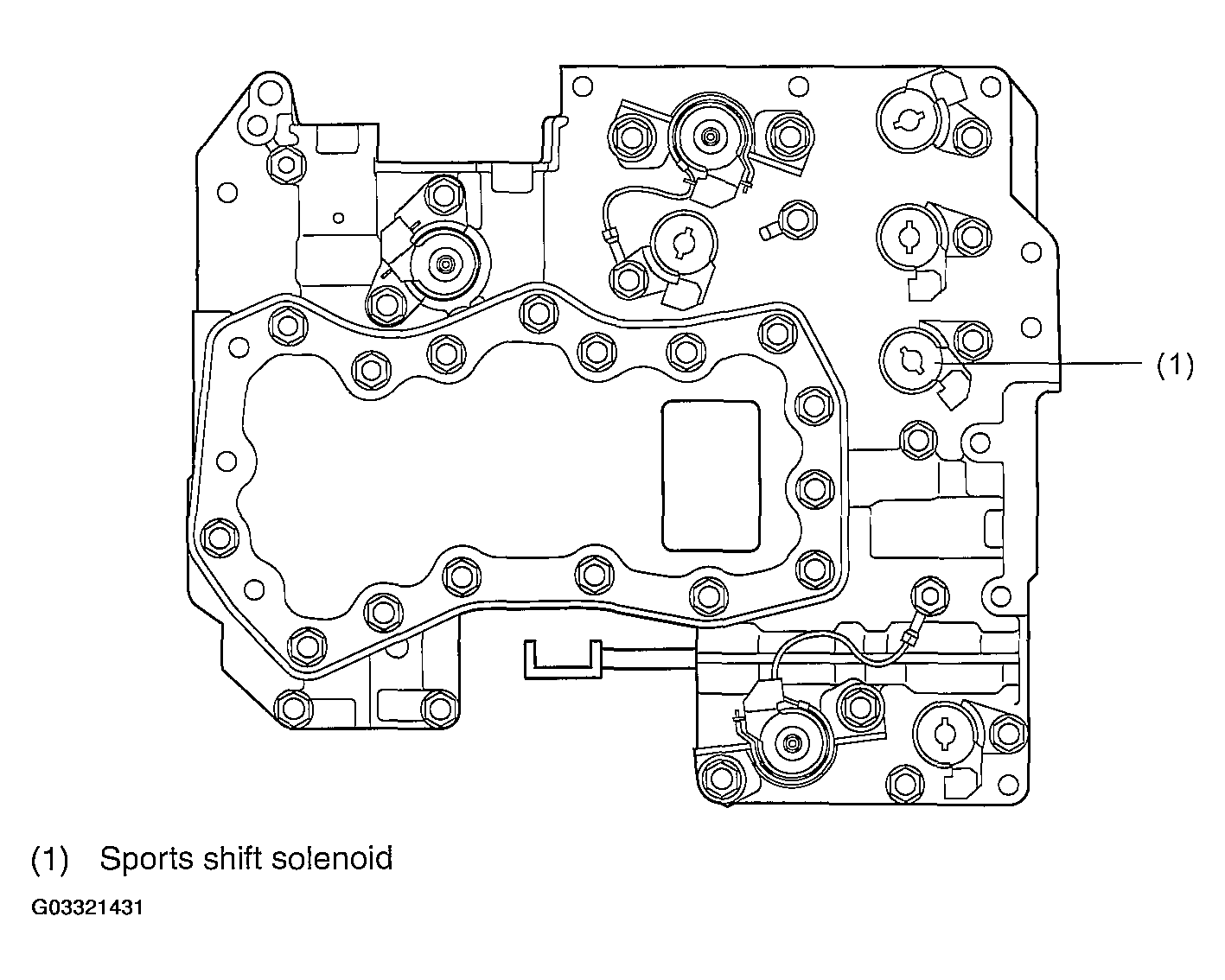

Fig 1: Identifying Sports Shift Solenoid
G03321431Courtesy of SUBARU OF AMERICA, INC.
