General Diagnostic Table: Inspection

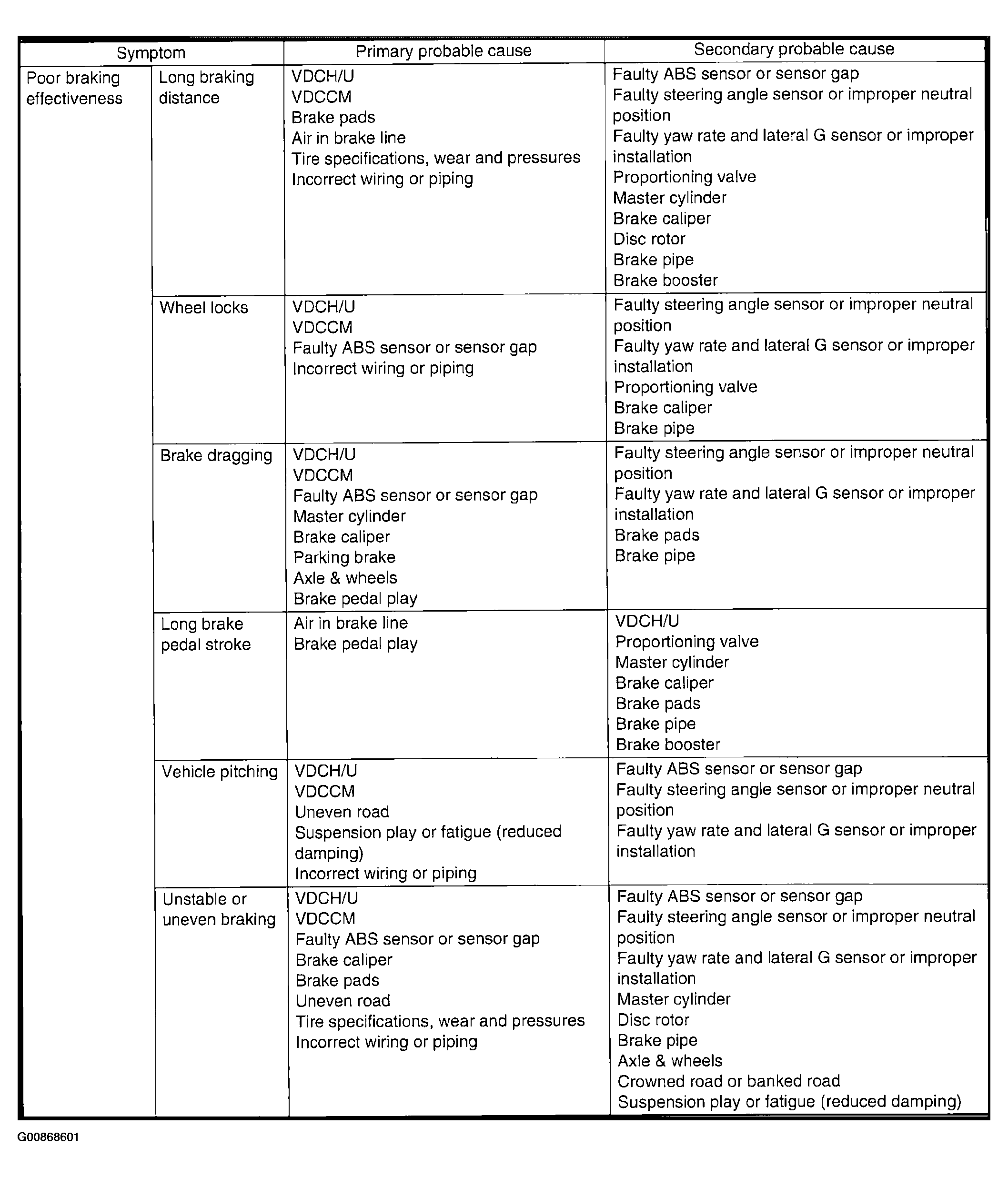

Fig 1: General Diagnostic Inspection Diagnostic Chart (1 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

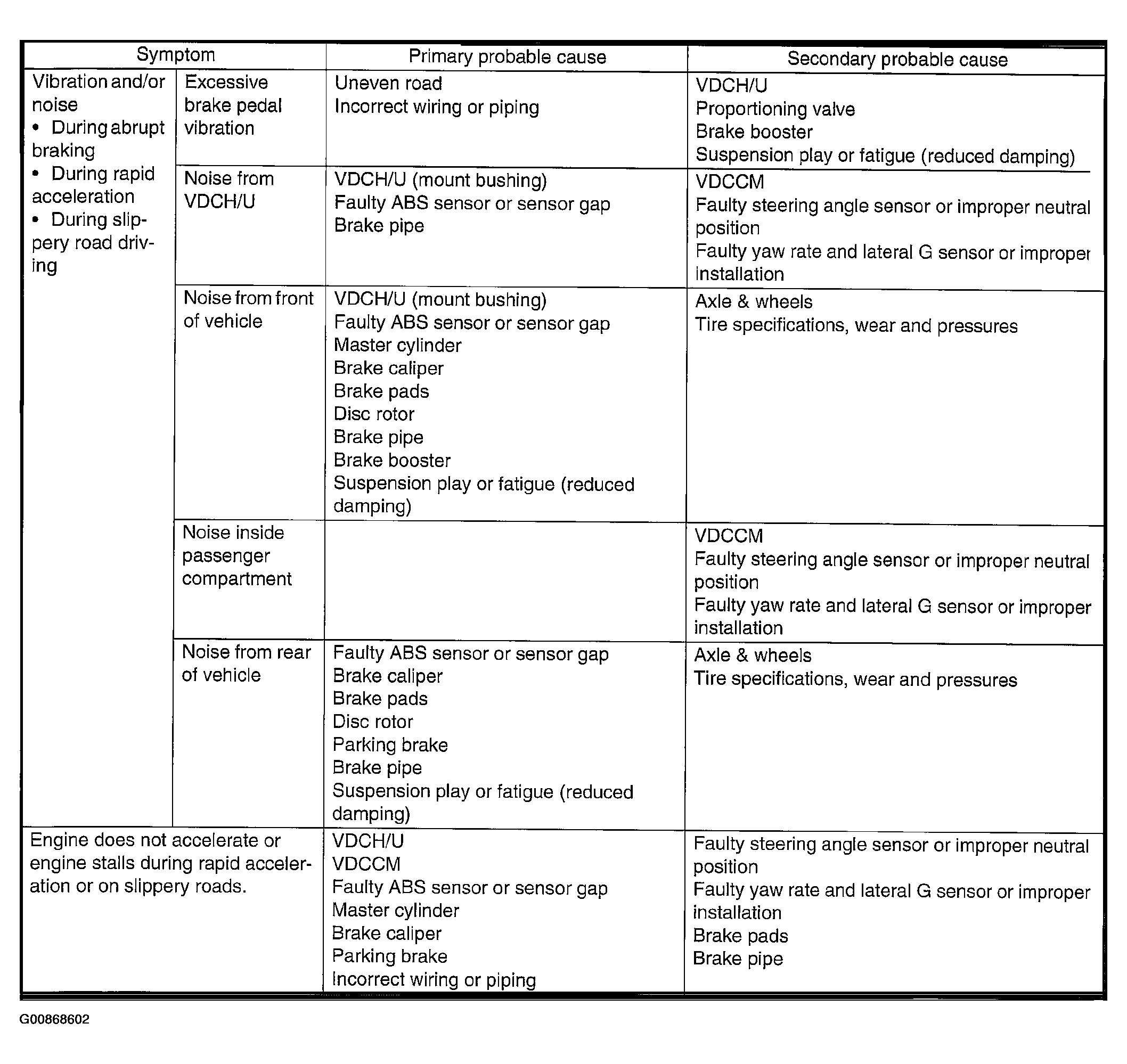

Fig 2: General Diagnostic Inspection Diagnostic Chart (2 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

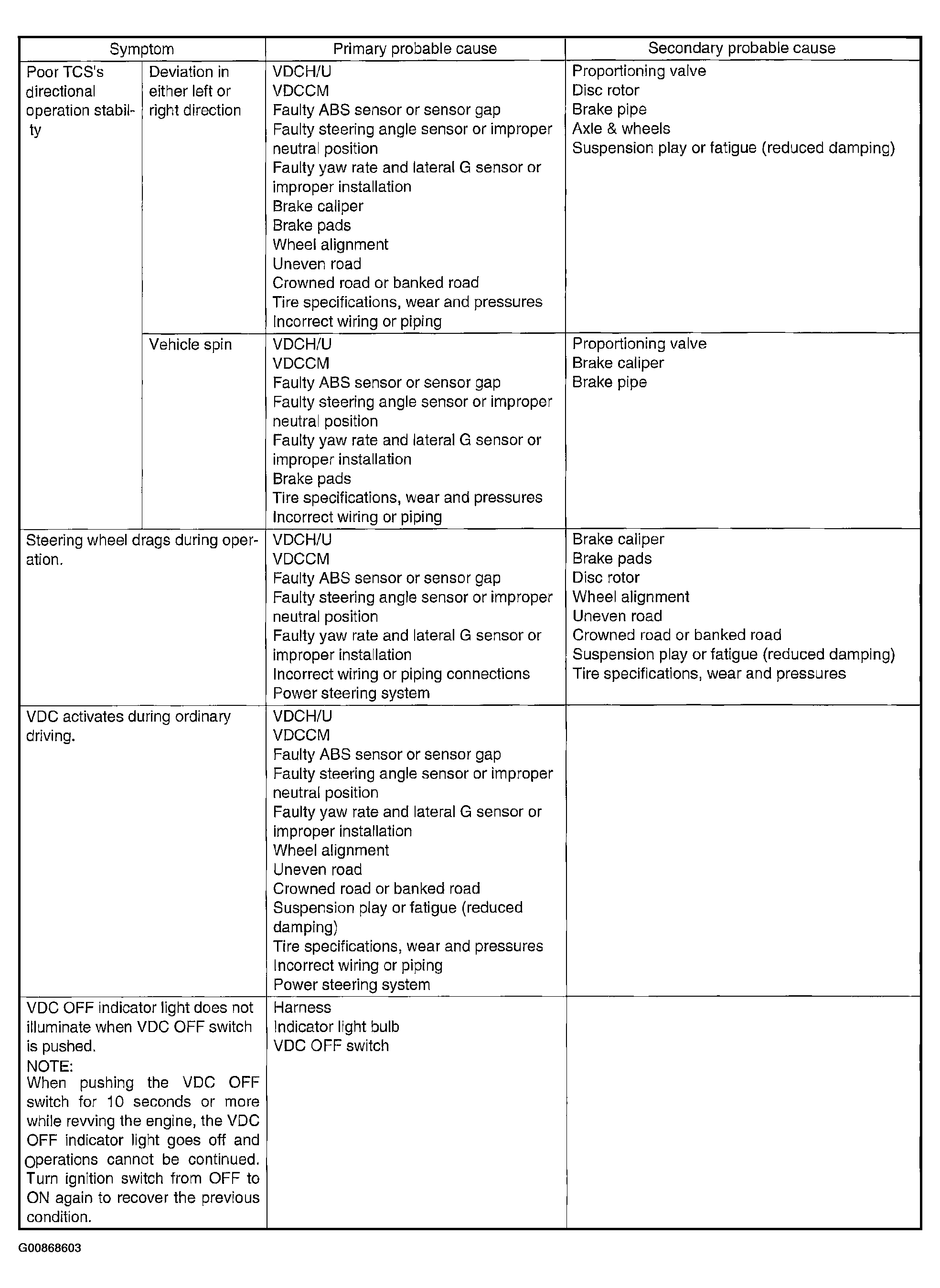

Fig 3: General Diagnostic Inspection Diagnostic Chart (3 Of 3)
Courtesy of SUBARU OF AMERICA, INC.
