DTC 56: Battery Short In G Sensor Circuit
DIAGNOSIS:
- Faulty G sensor output voltage
TROUBLE SYMPTOM:

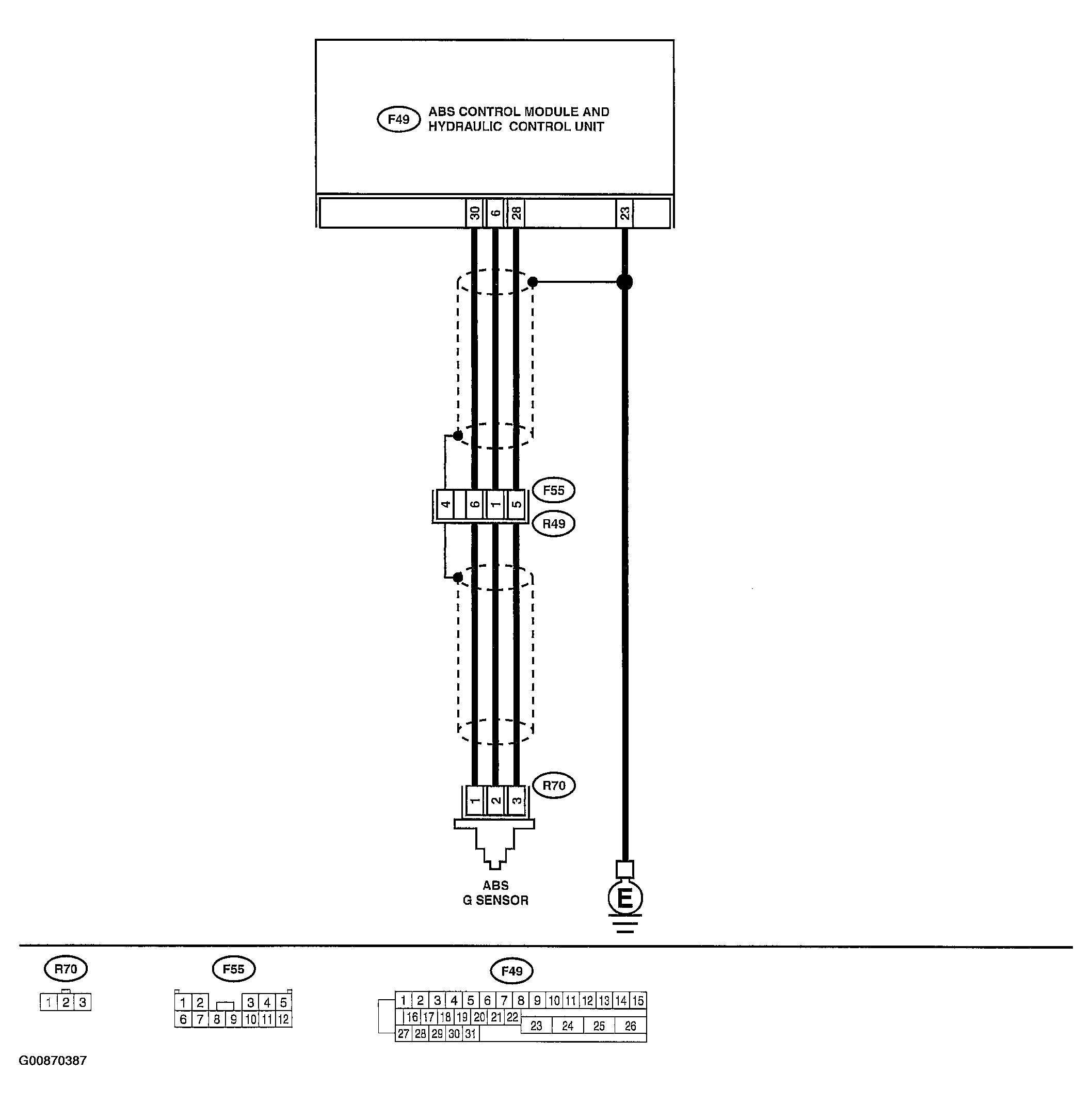

WIRING DIAGRAM:
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
