Read Current Data For Engine. (Normal Mode)

On the << Main Menu >> display screen, select the {Each System Check} and press the [YES] key.
On the << System Selection Menu >> display screen, select the {Engine Control System} and press the [YES] key.
Press the [YES] key after the information of engine type is displayed.
On the << Engine Diagnosis >> display screen, select the {Current Data Display & Save} and press the [YES] key.
On the << Data Display Menu >> display screen, select the {Data Display} and press the [YES] key.
Using the scroll key, move the display screen up or down until desired data is shown.
A list of the support data is shown in the following table.

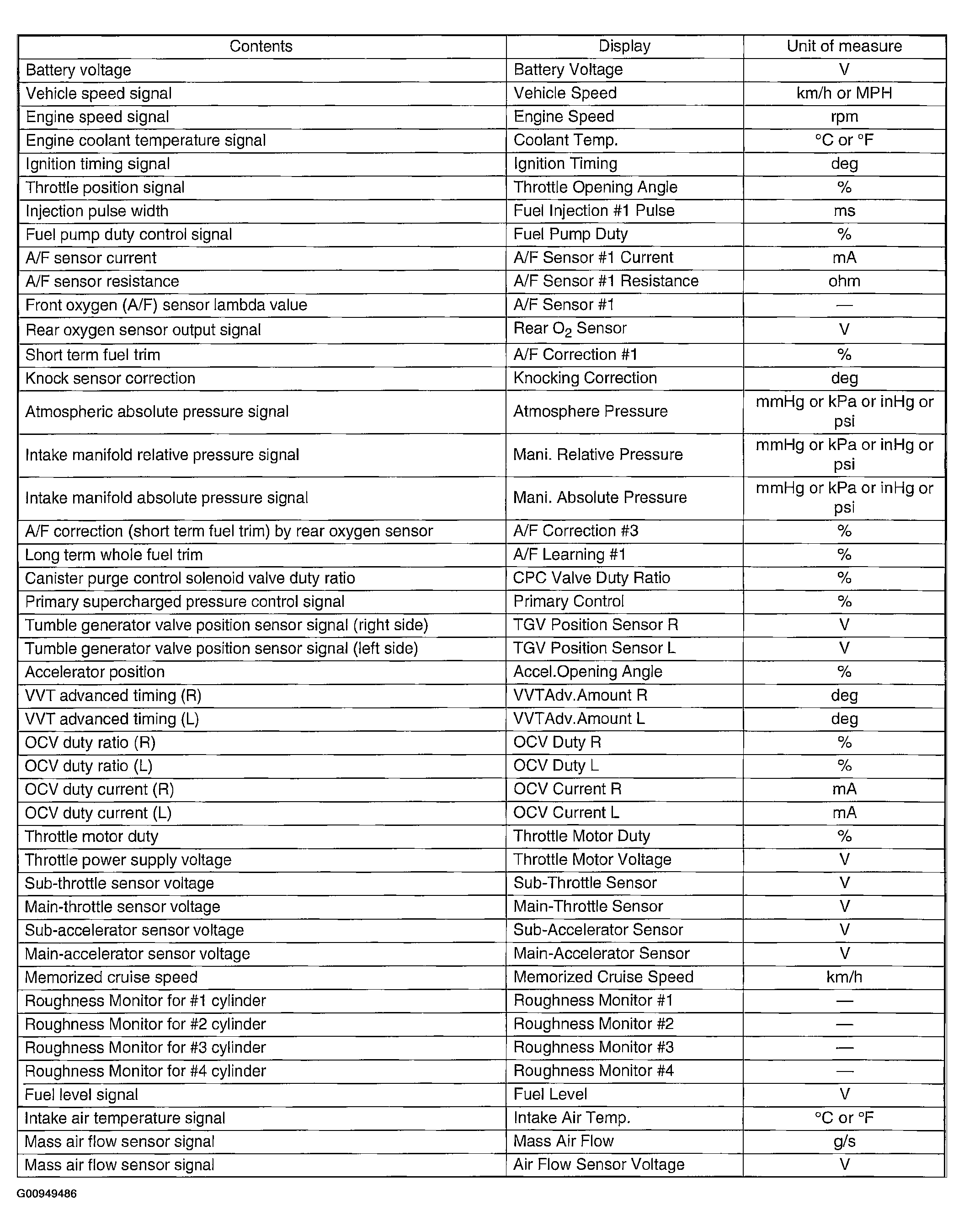

Fig 1: Engine Current Data List (Normal Mode) (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

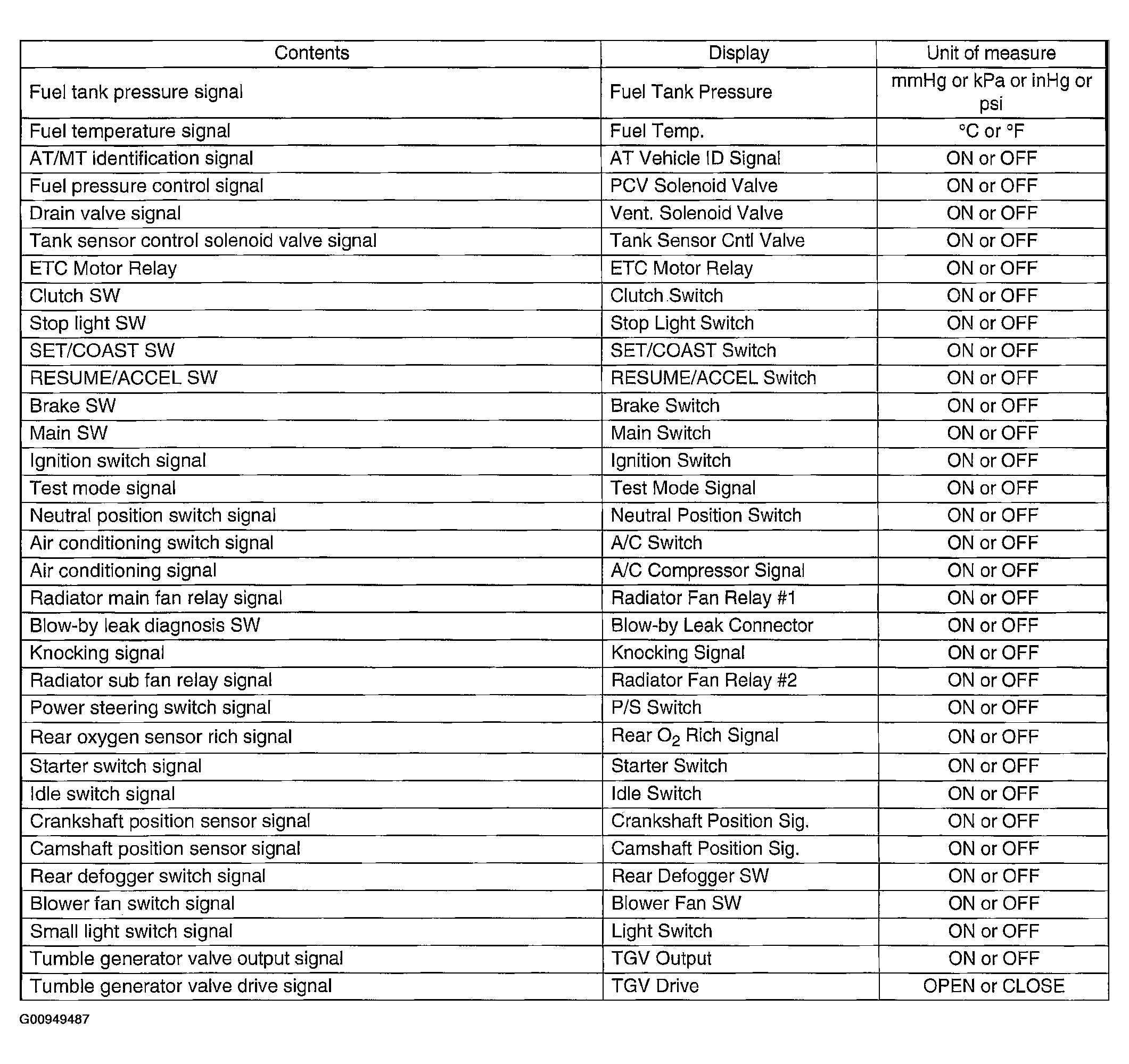

Fig 2: Engine Current Data List (Normal Mode) (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

NOTE: For detailed operation procedure, refer to the Subaru Select Monitor Operation Manual .
