Diagnostic Chart:

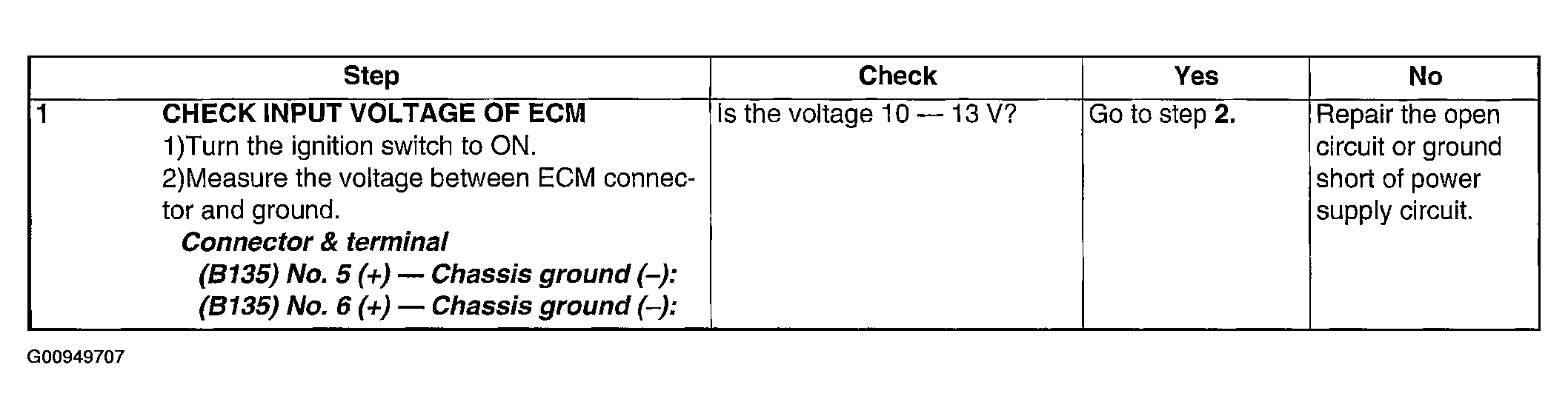

Fig 1: Diagnosis Chart (1 Of 2)
G00949707Courtesy of SUBARU OF AMERICA, INC.

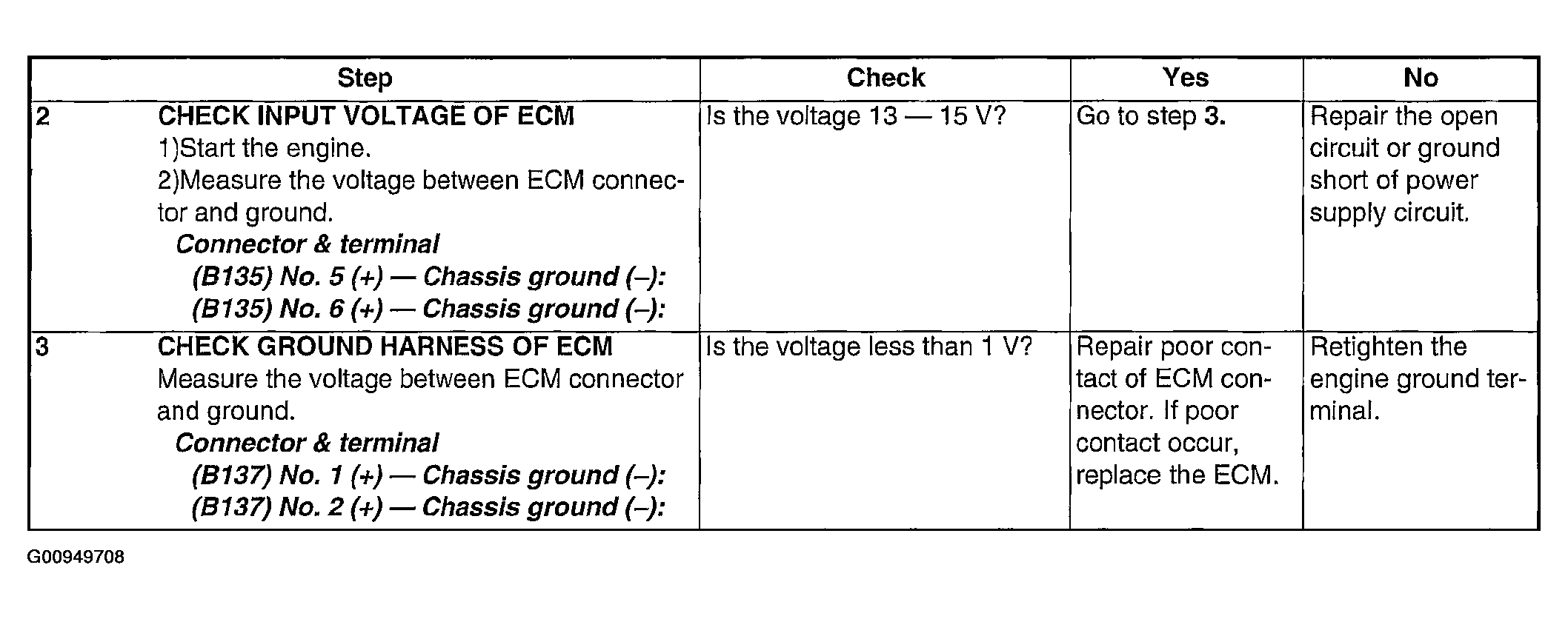

Fig 2: Diagnosis Chart (2 Of 2)
G00949708Courtesy of SUBARU OF AMERICA, INC.
