Subaru
>>
2004
>>
Impreza TS, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine (Diagnostics) (H4SO)
>>
Diagnostics for Engine Starting Failure
>>
Control Module Power Supply And Ground Line
>>
Diagnostic Chart:
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Diagnostic Chart:

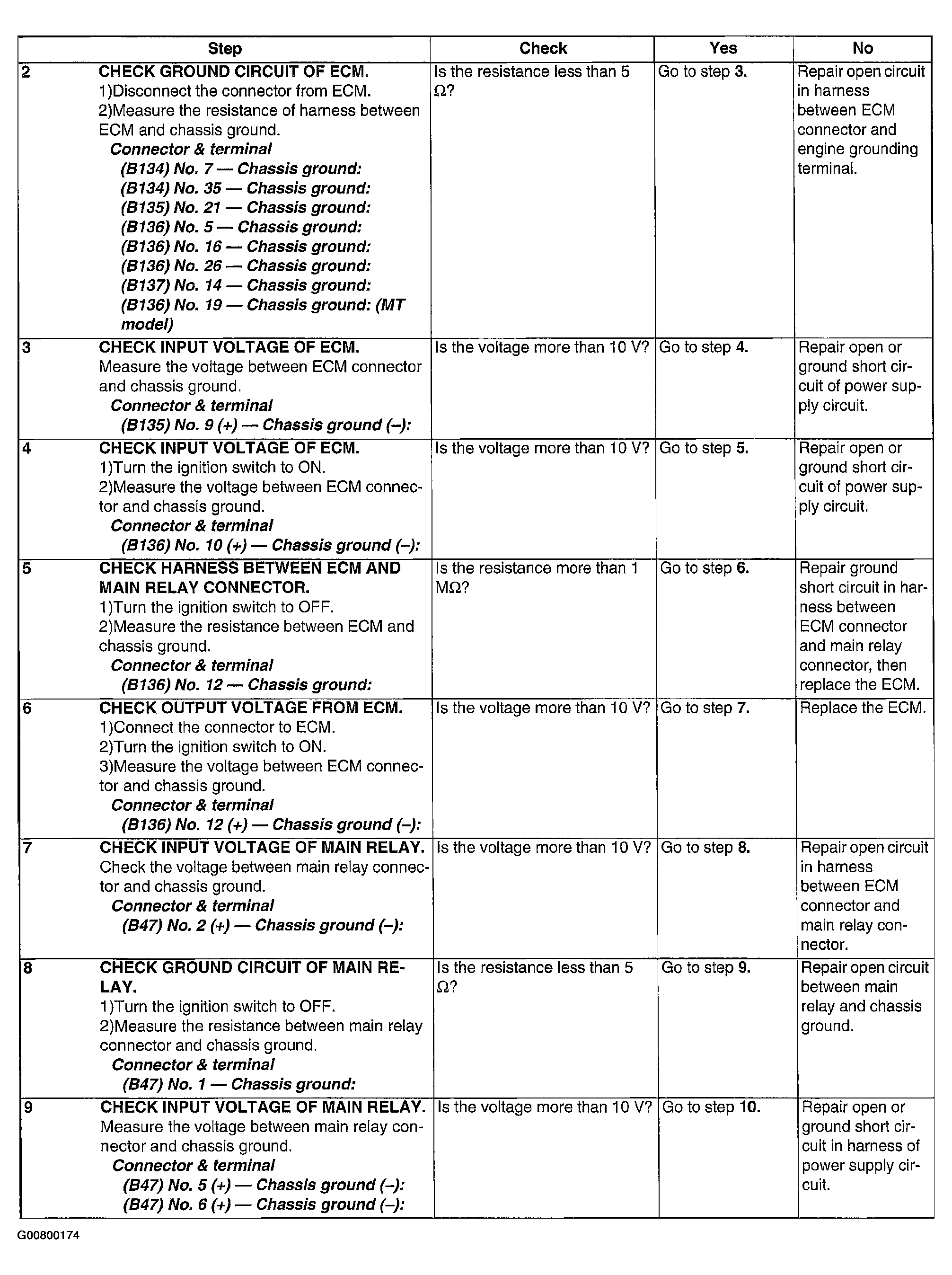

Fig 1: Control Module Power Supply And Ground Line - Diagnostic Chart (1 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

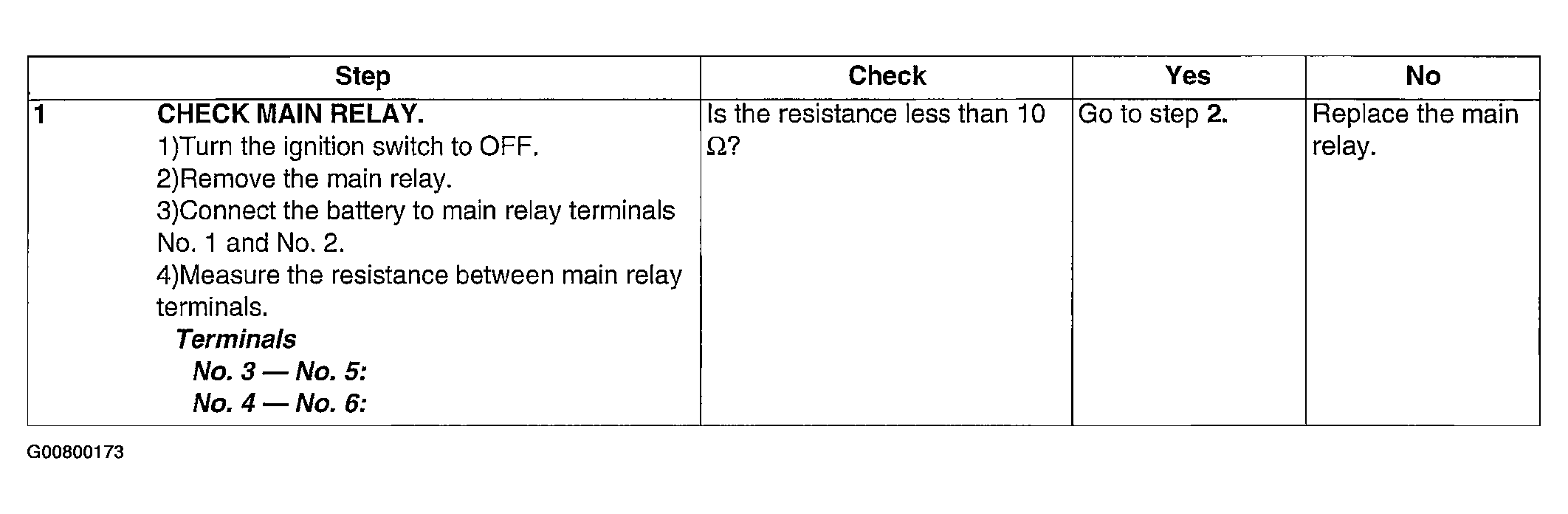

Fig 2: Control Module Power Supply And Ground Line - Diagnostic Chart (2 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

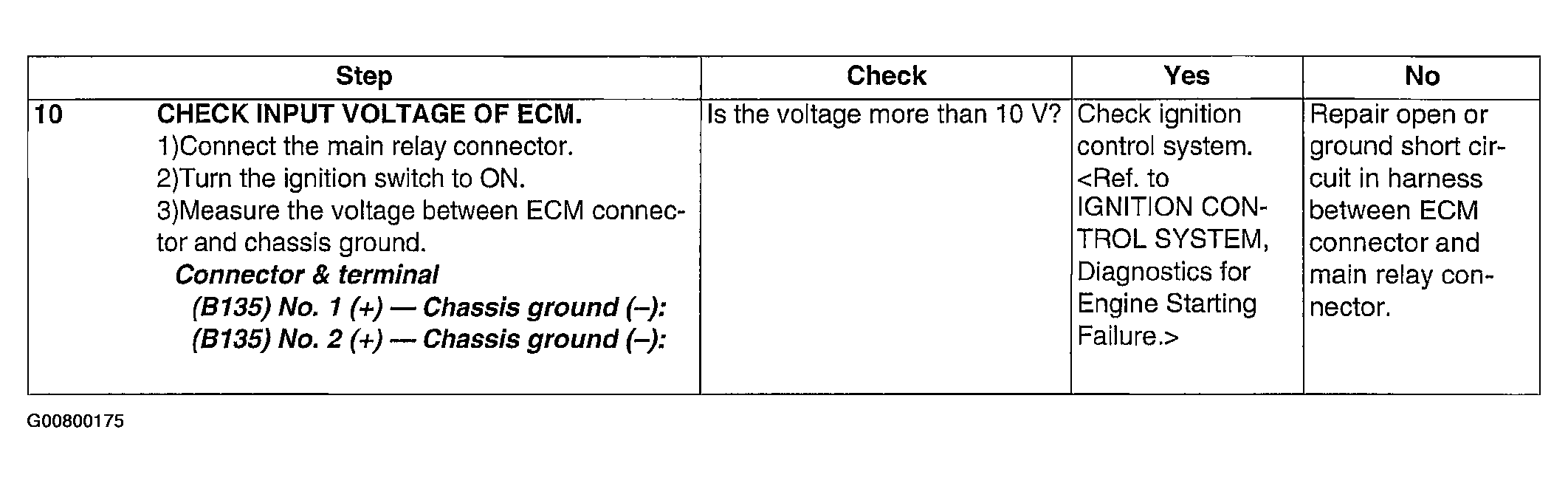

Fig 3: Control Module Power Supply And Ground Line - Diagnostic Chart (3 Of 3)
Courtesy of SUBARU OF AMERICA, INC.
