Diagnostics for Engine Starting Failure
>>
Ignition Control System
>>
Diagnostic Chart:
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Diagnostic Chart:

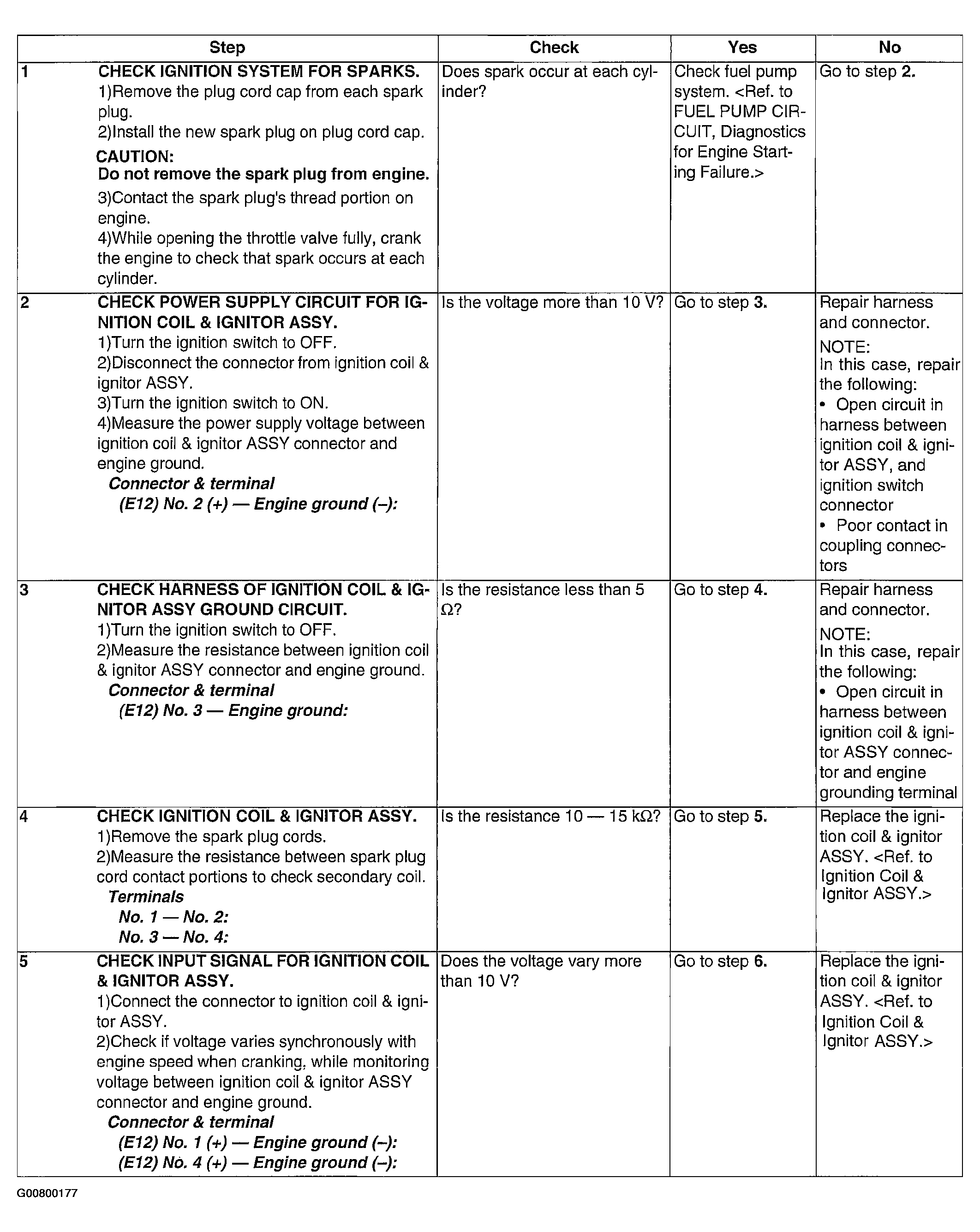

Fig 1: Ignition Control - Diagnostic Chart (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

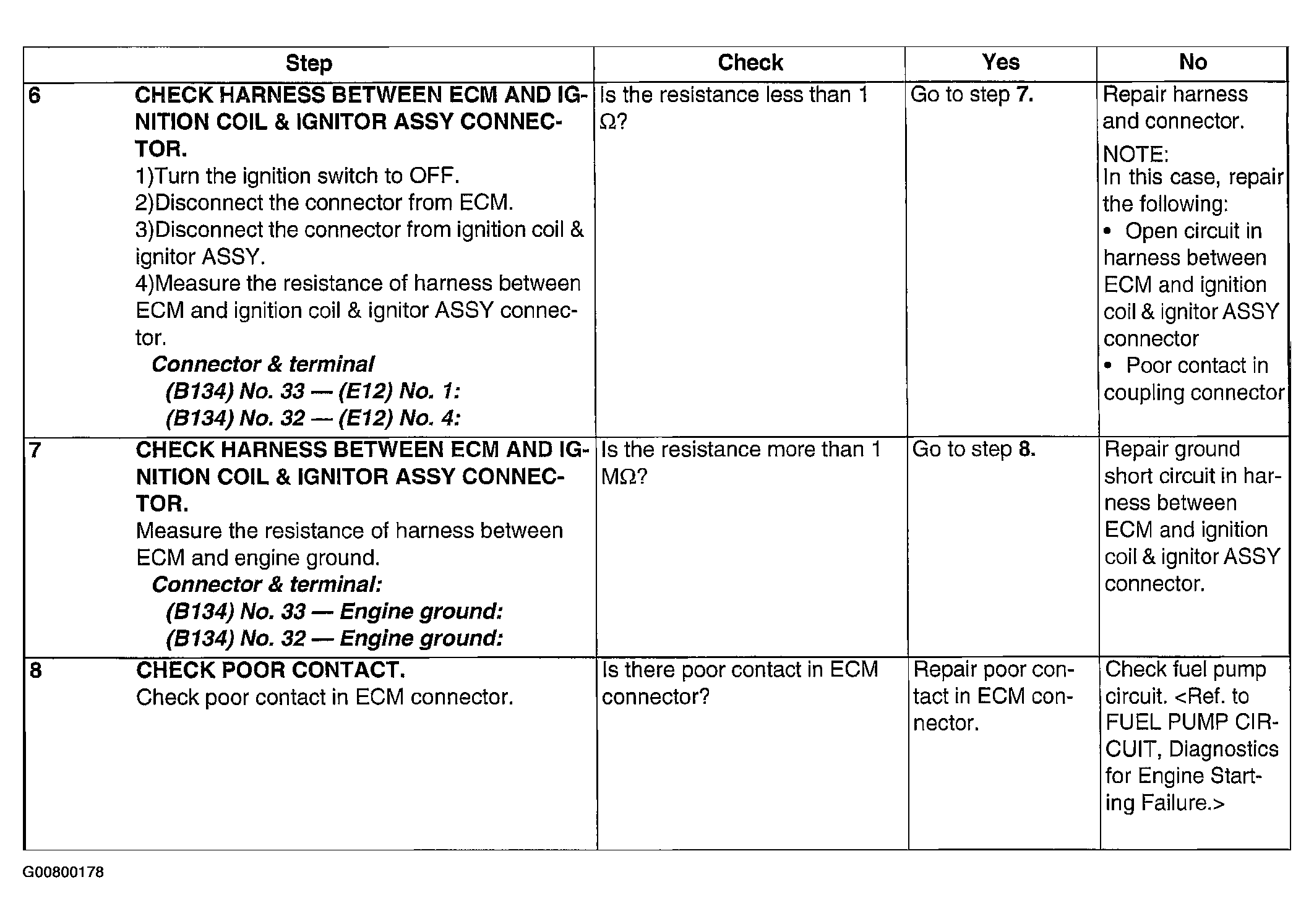

Fig 2: Ignition Control - Diagnostic Chart (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
