Impreza RS, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine (Diagnostics) (H4SO)
>>
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
>>
DTC P0133: O2 Sensor Circuit Slow Response (Bank 1 Sensor 1)
>>
Diagnostic Chart:
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Diagnostic Chart:

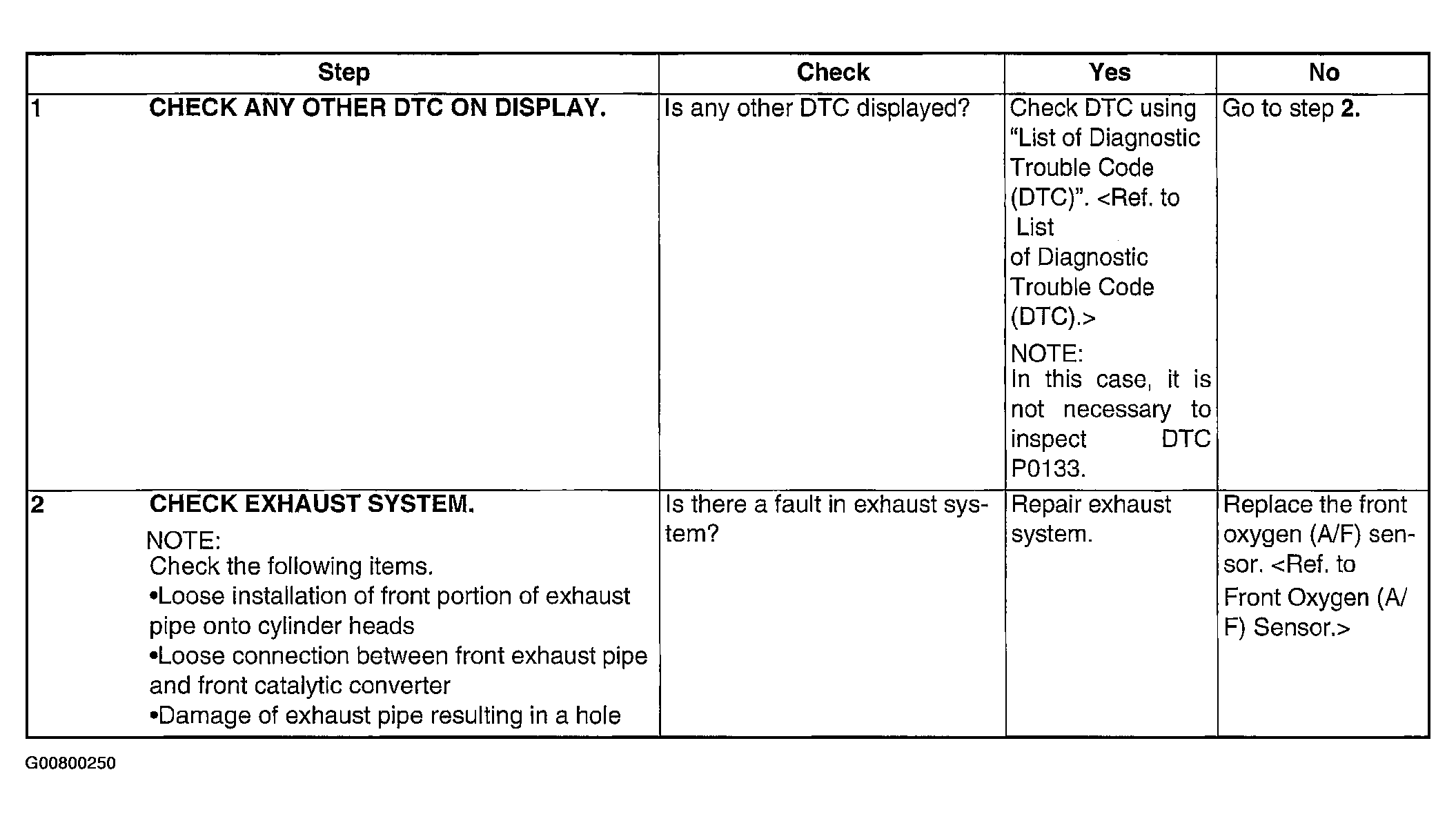

Fig 1: DTC P0133 - Diagnostic Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
