Computers and Control Systems: Locations

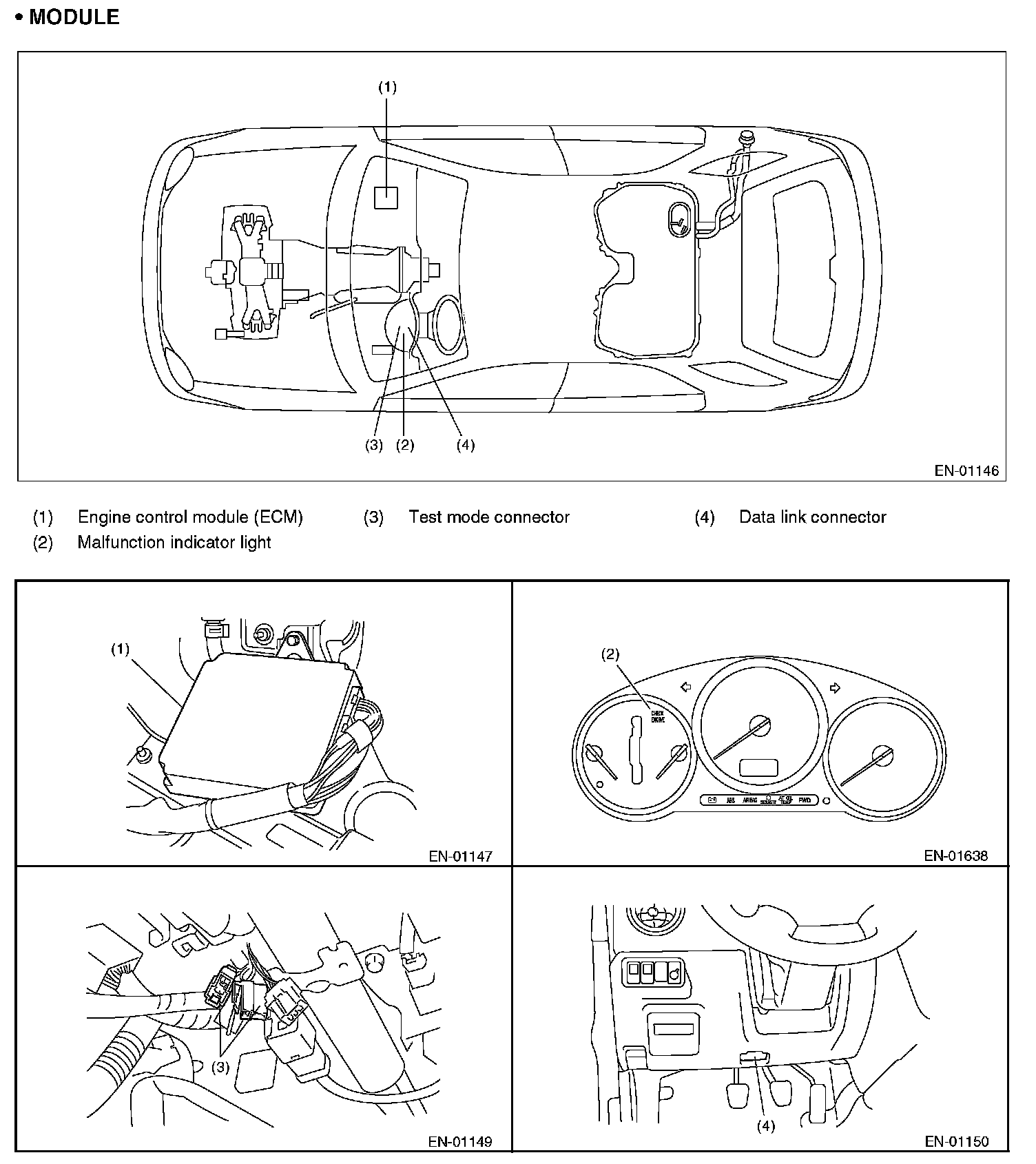

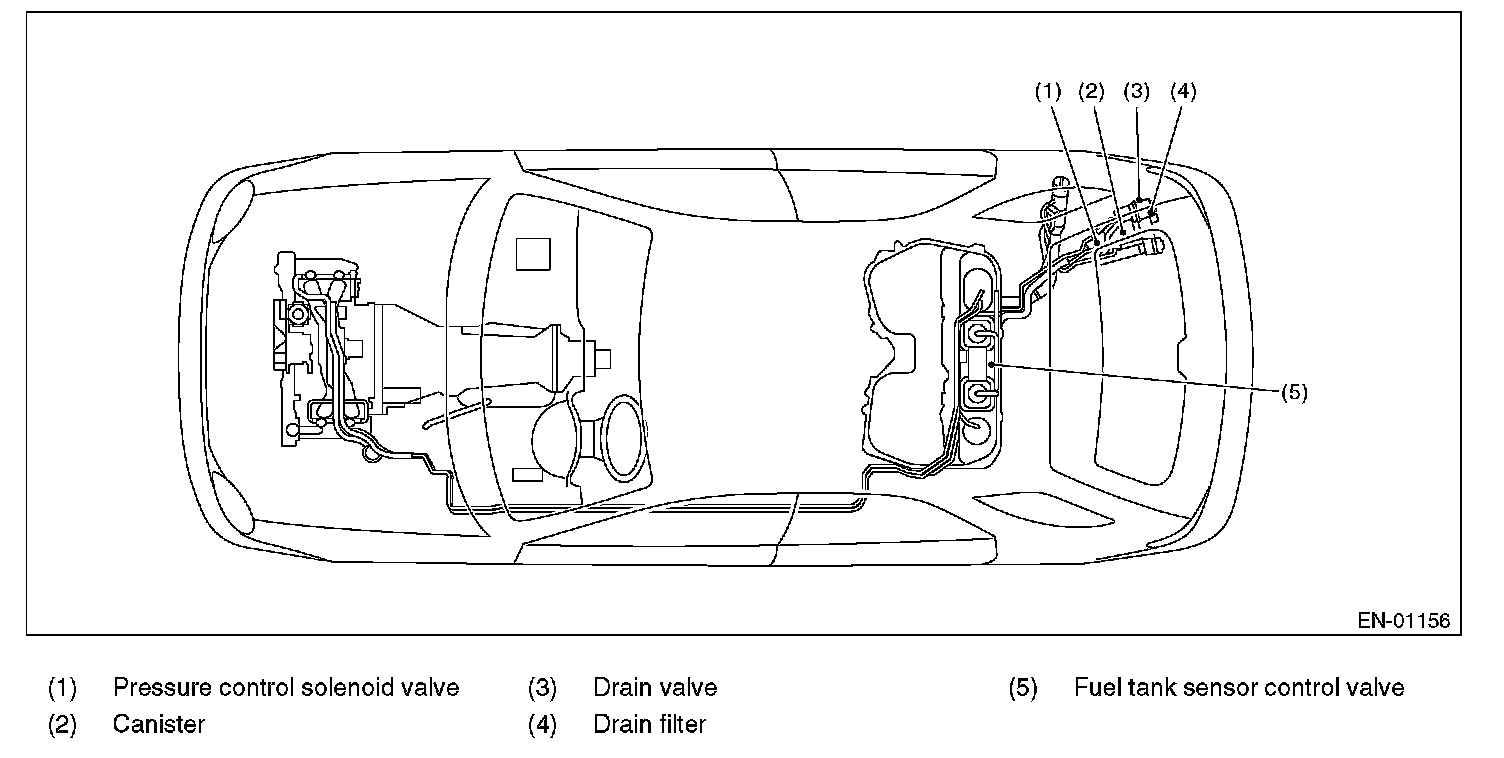

Electrical Components Location - Module:

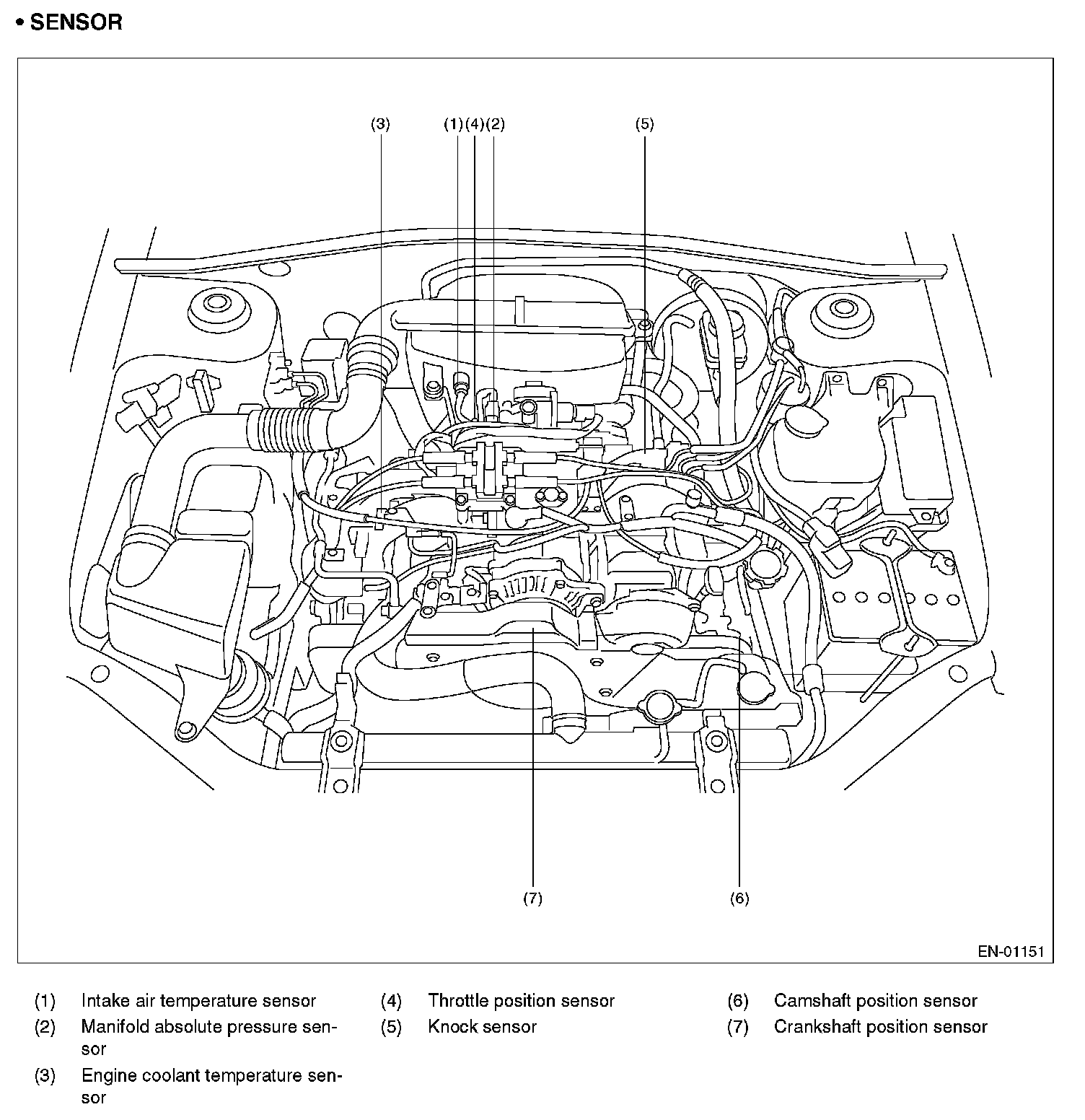

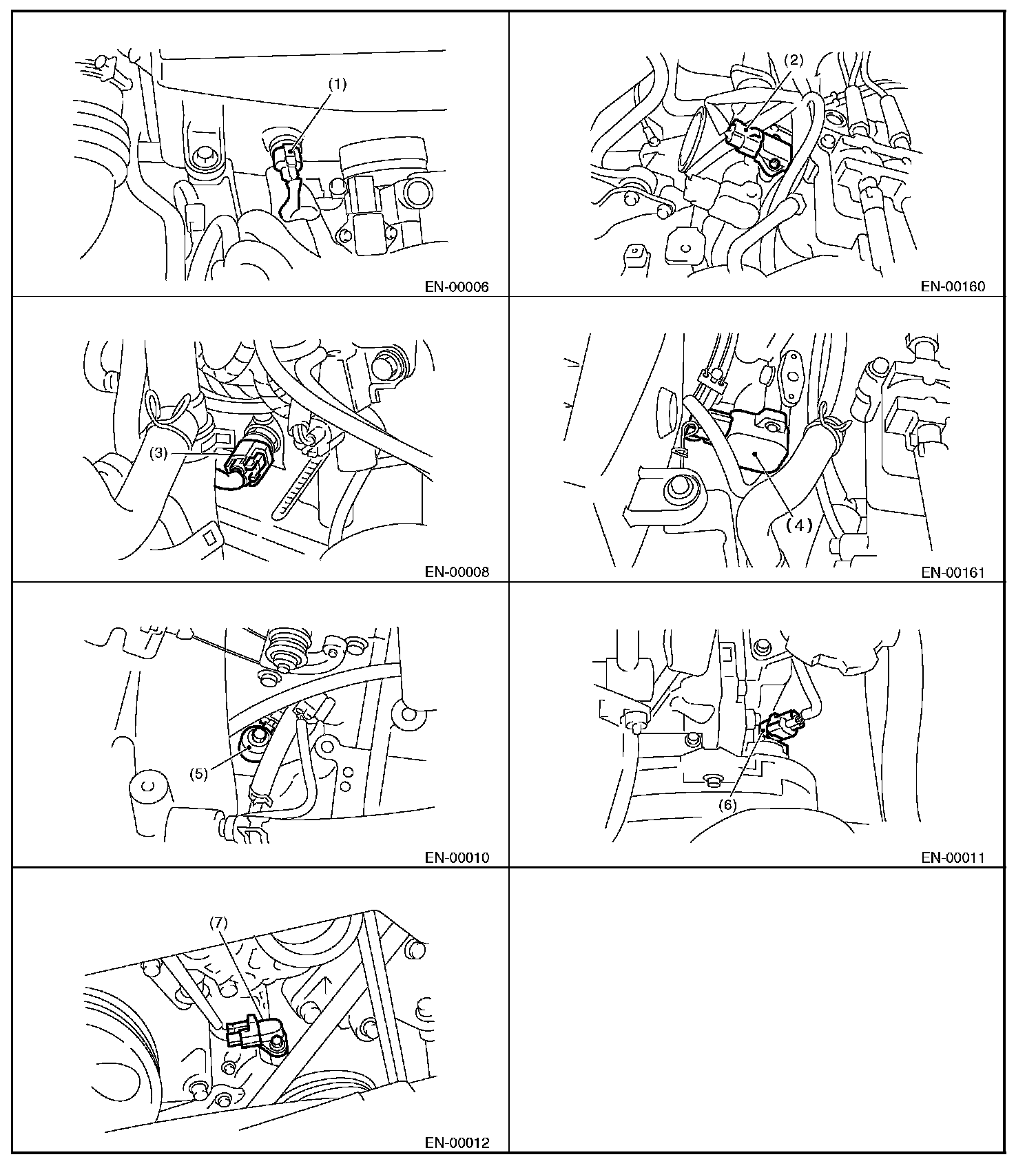

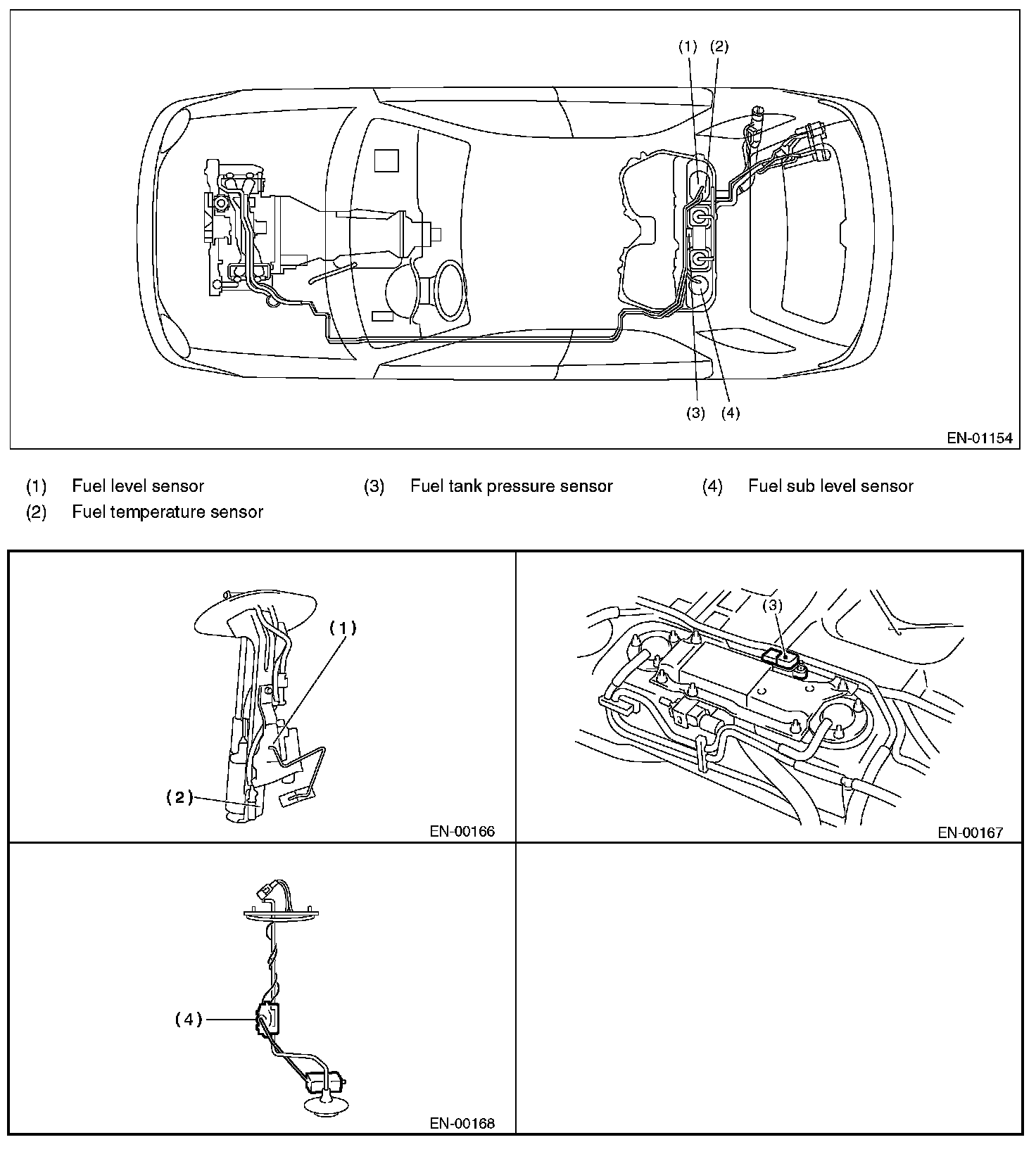

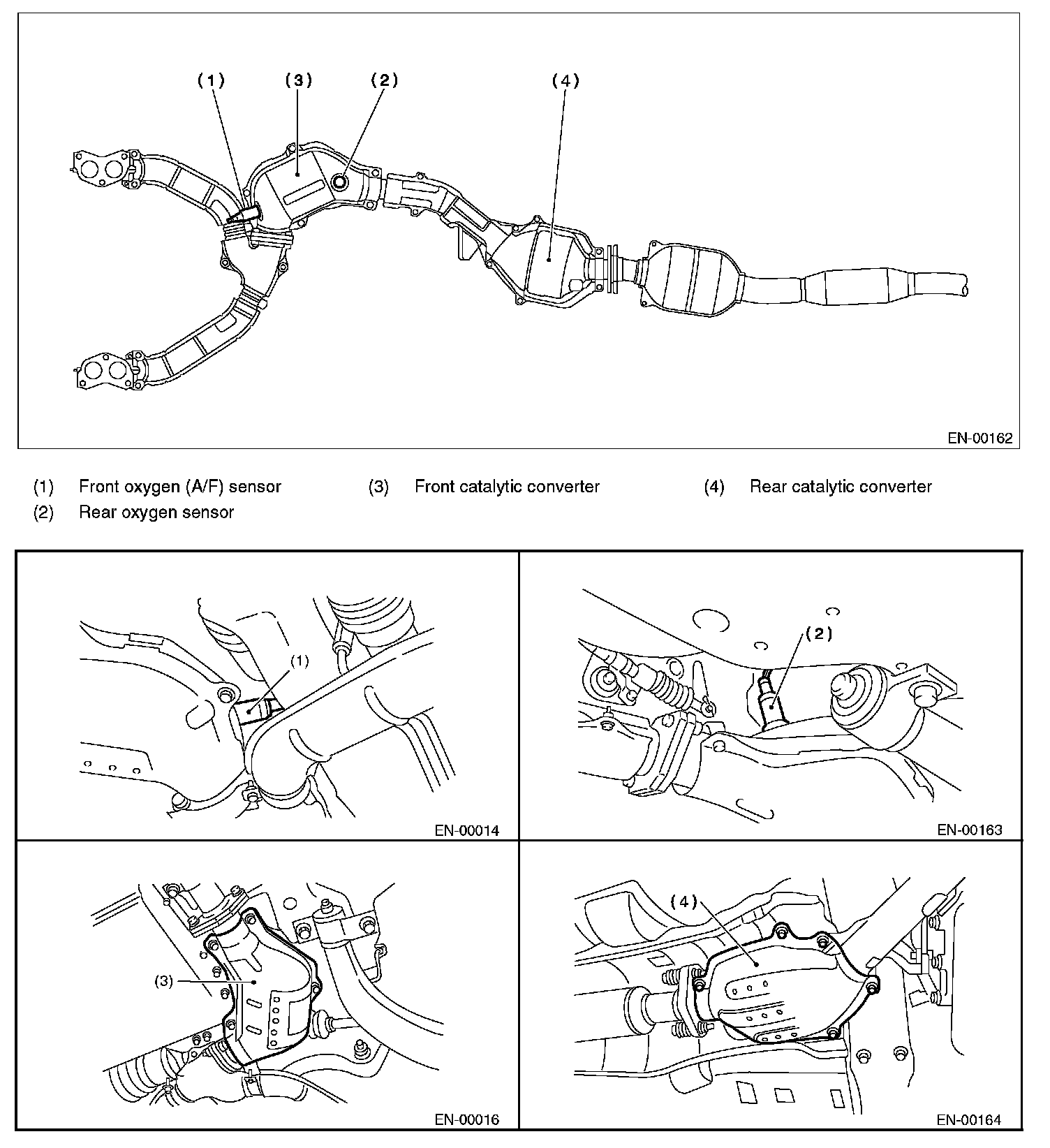

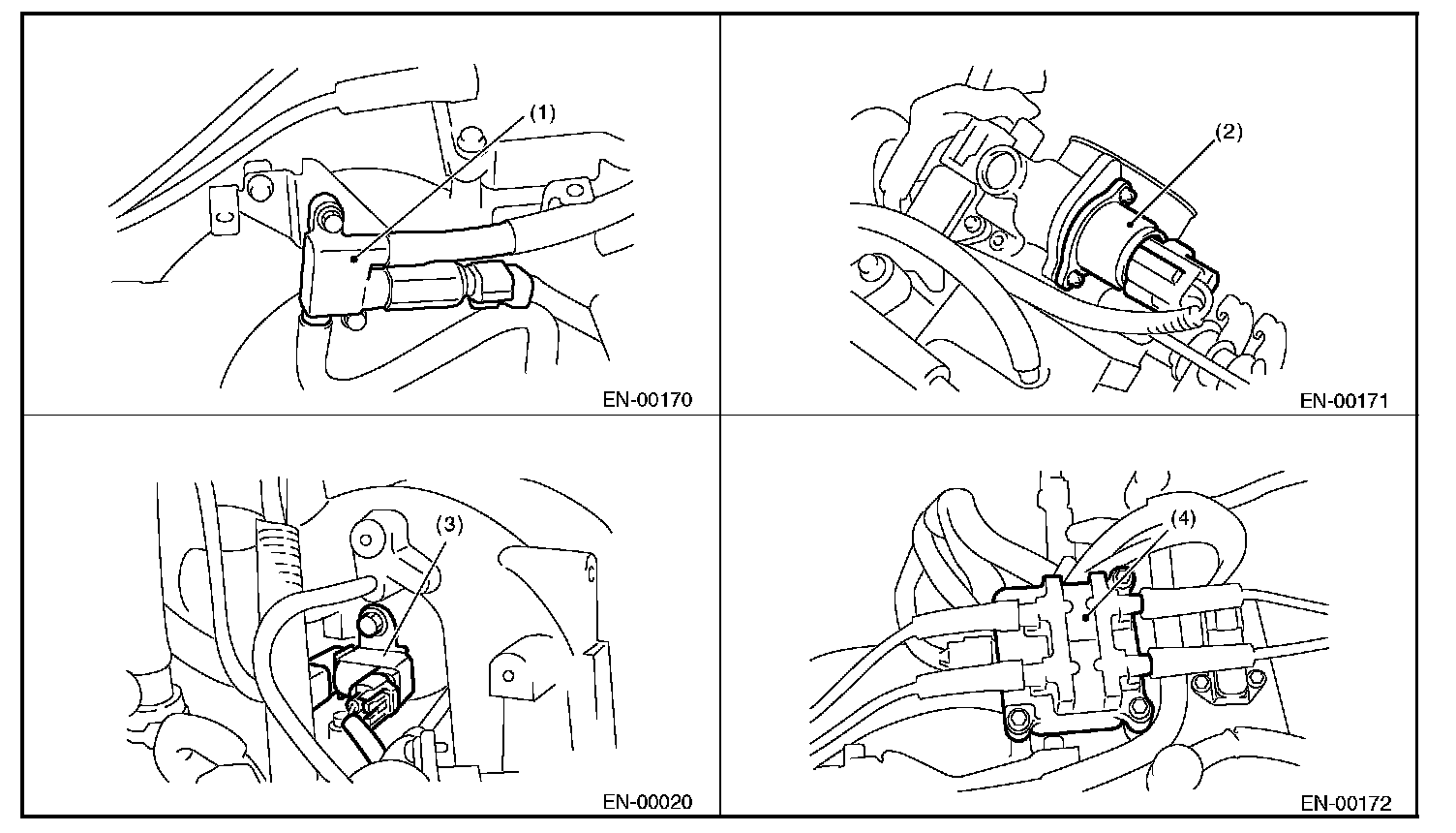

Electrical Components Location - Sensor:
