At Models

WARNING: This page is about a different variant/trim than selected.

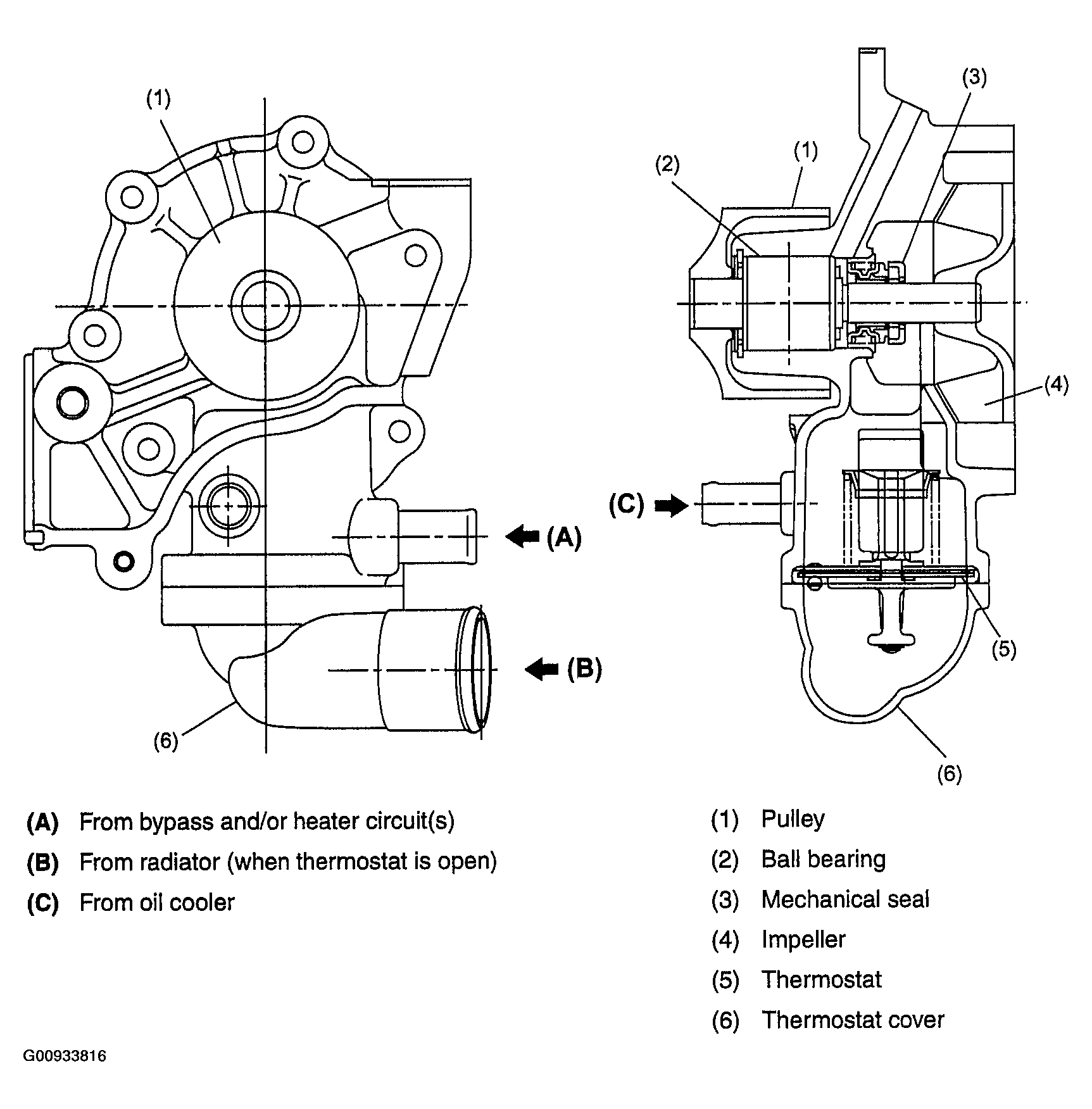

Fig 1: Identifying Components Water Pump A/T Model
G00933816Courtesy of SUBARU OF AMERICA, INC.
