Front Door Glass

The rear sash of the front door glass regulator is moved to a forward position and a guide rail is added. Thus, vibration caused by opening and closing the door is reduced while the passenger protecting ability in case of a side collision is enhanced.

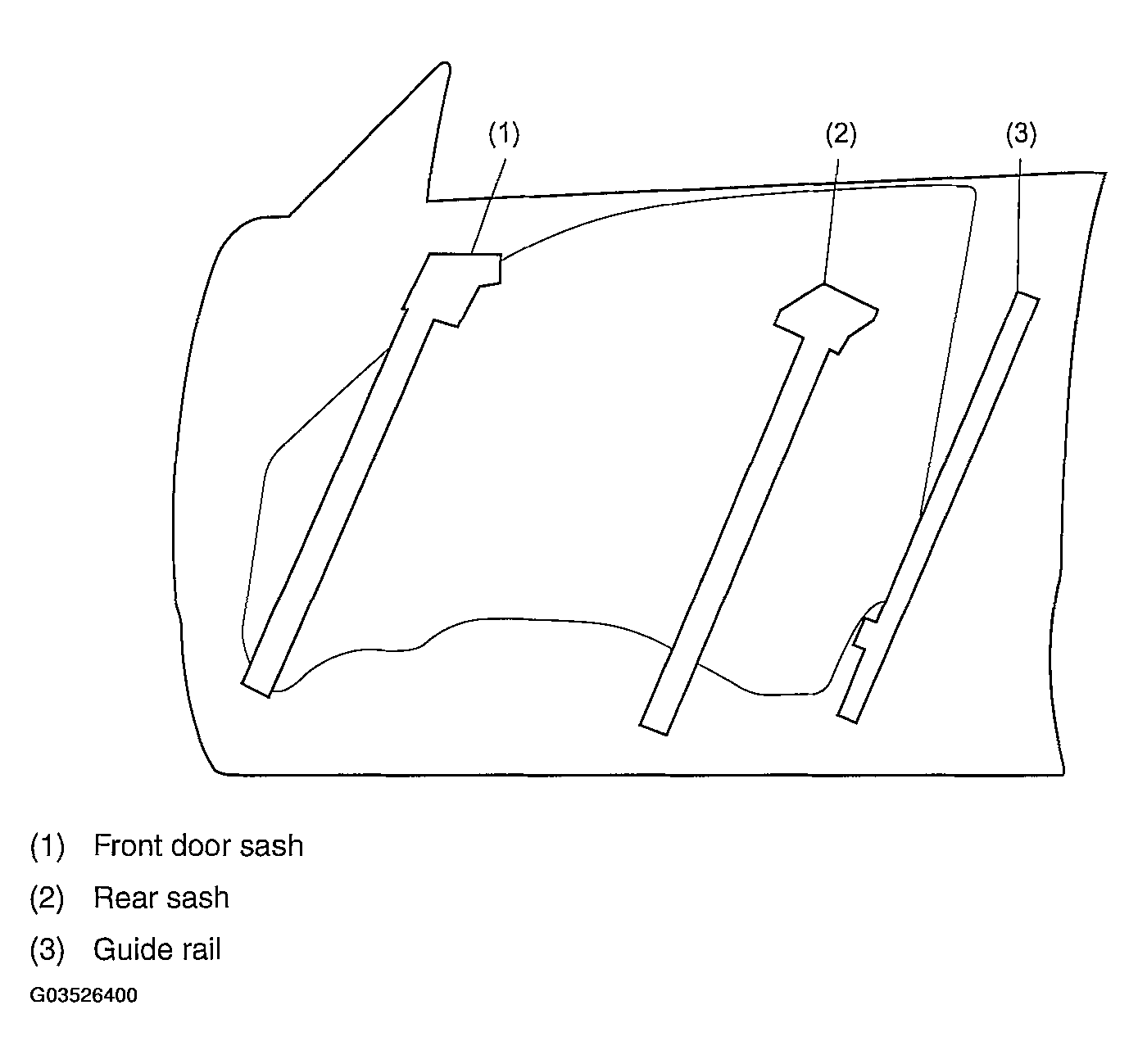

Fig 1: Identifying Internal Door Glass Components

Courtesy of SUBARU OF AMERICA, INC.
