Reduction Gear

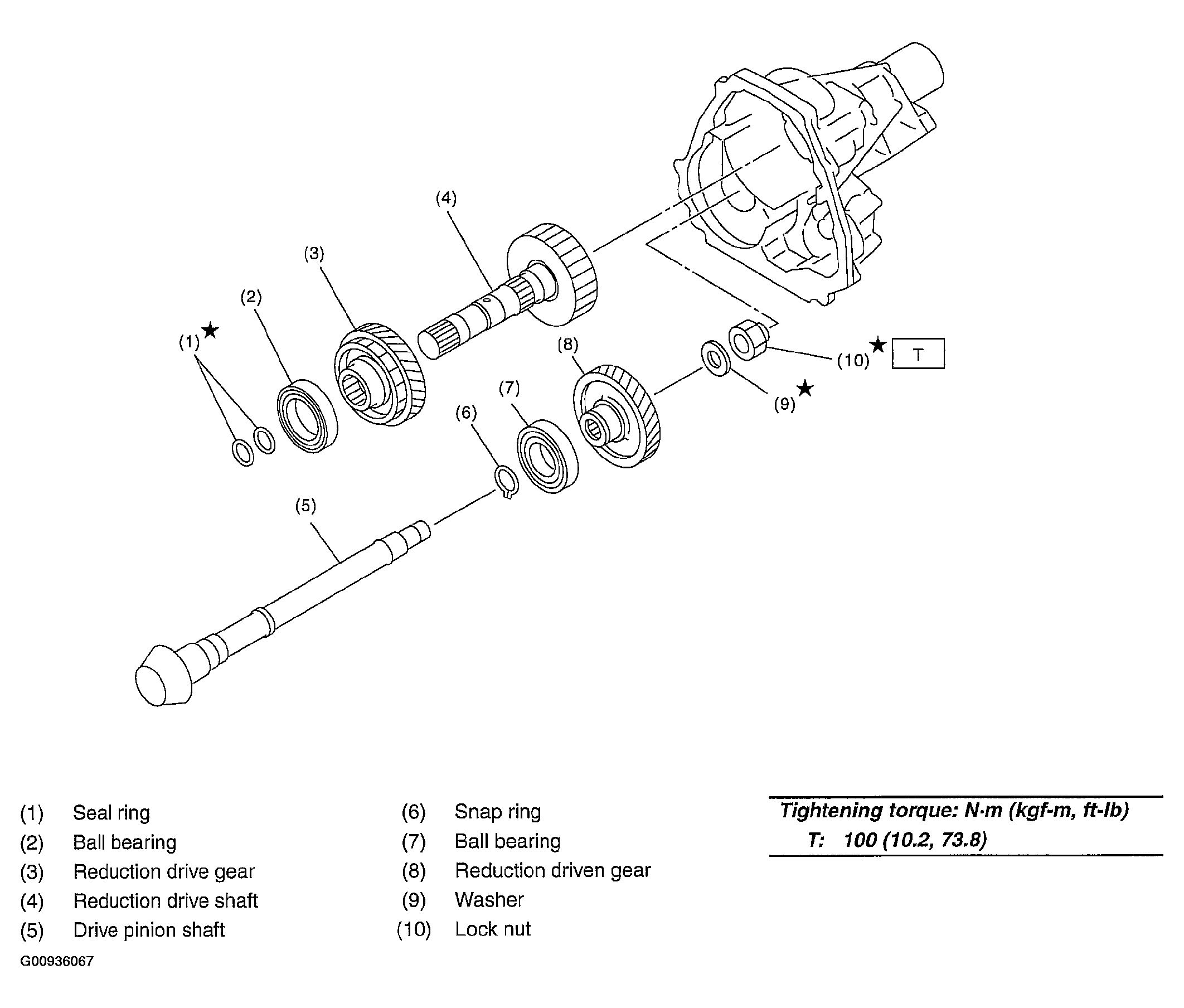

Fig 1: Education Gear Components With Torque Specifications

G00936067

Courtesy of SUBARU OF AMERICA, INC.
