Diagnostics for Engine Starting Failure
>>
Control Module Power Supply And Ground Line
>>
Diagnostic Procedures:
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Diagnostic Procedures:

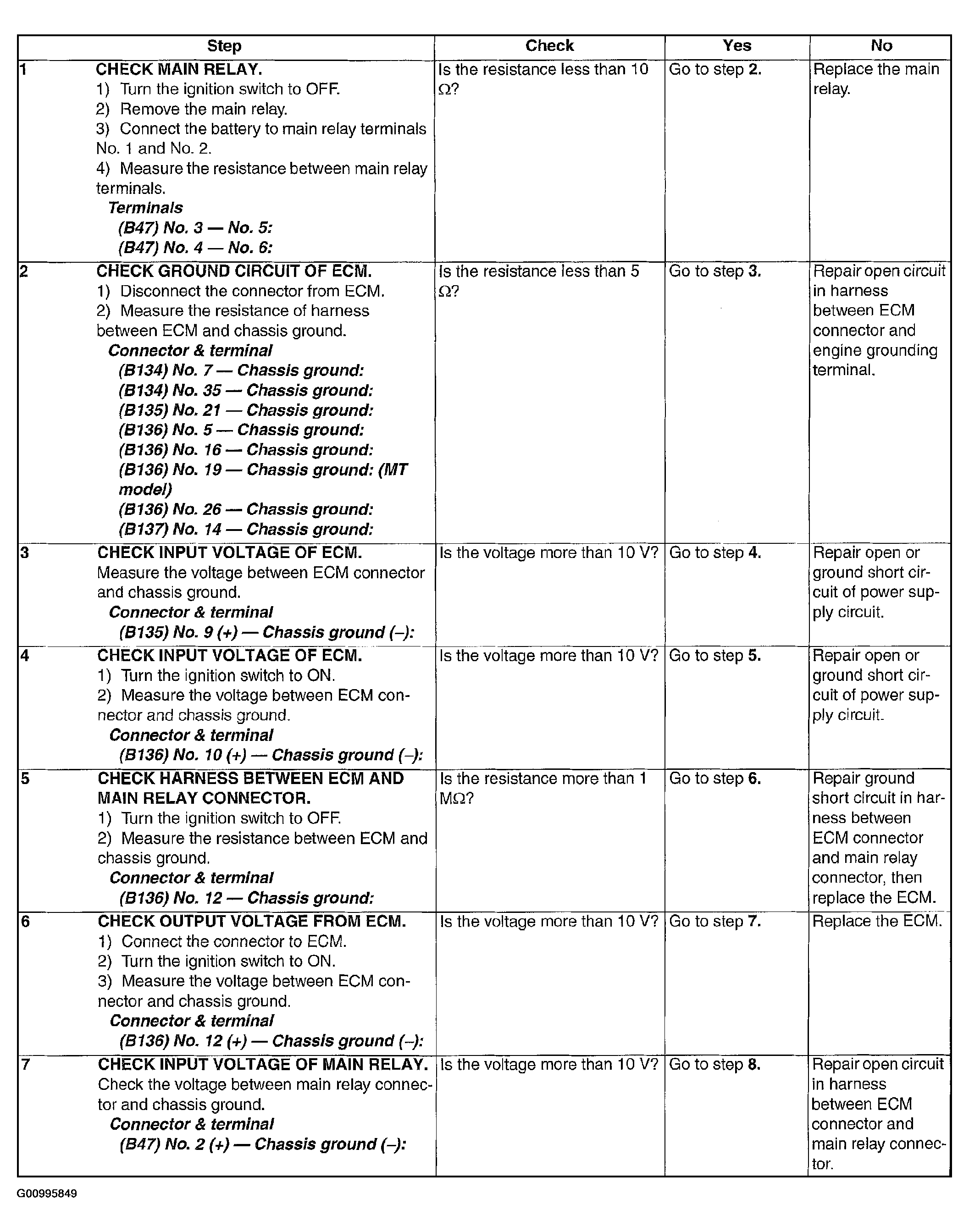

Fig 1: Control Module Power Supply & Ground Line Diagnostic Chart (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

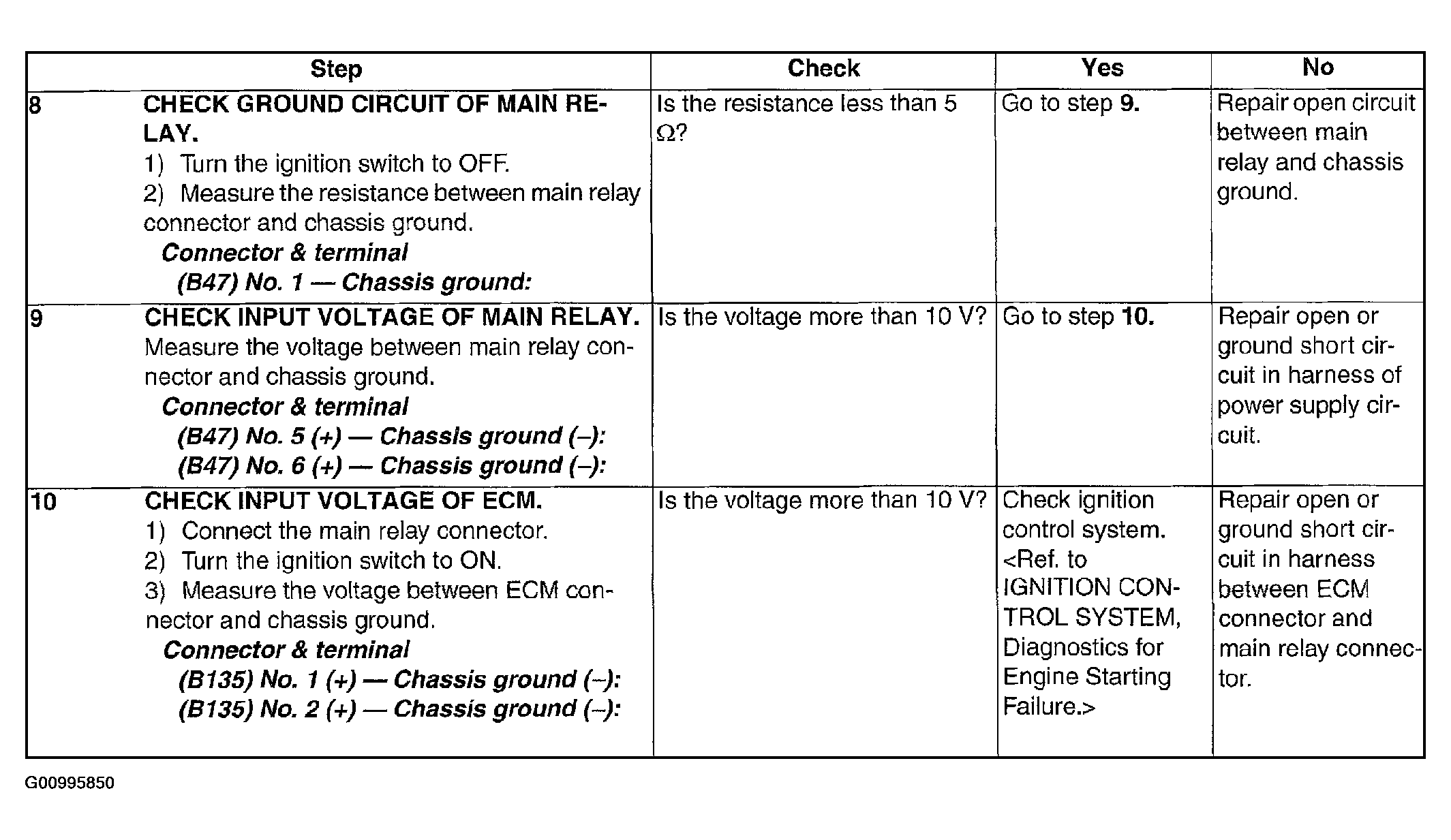

Fig 2: Control Module Power Supply & Ground Line Diagnostic Chart (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
