Transmission Control Module (TCM): Removal

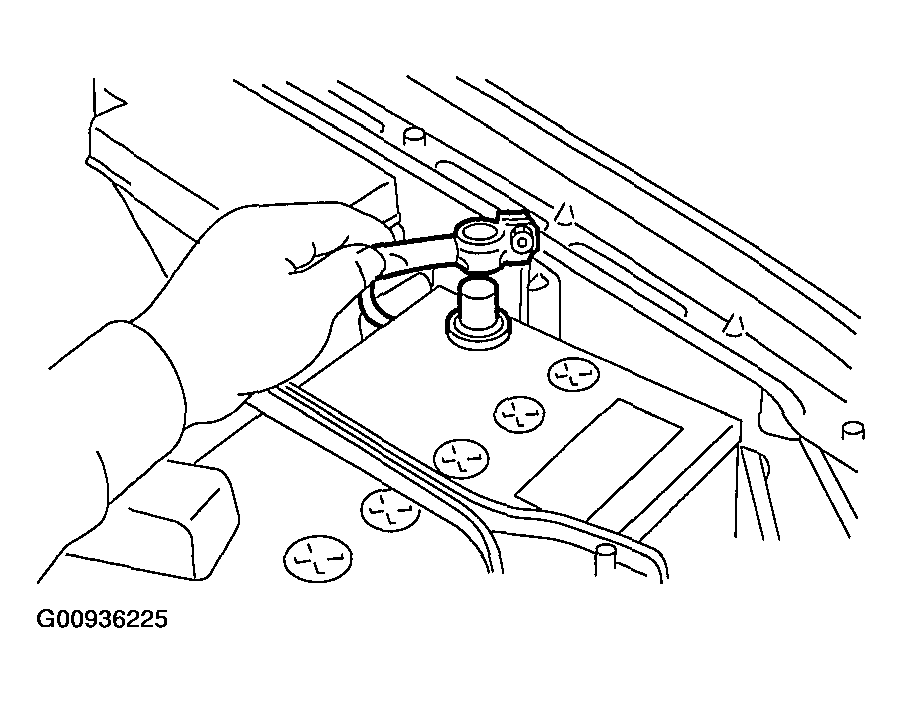

- Disconnect the ground cable from battery.
Courtesy of SUBARU OF AMERICA, INC.
- Remove the lower cover and then disconnect the connector.

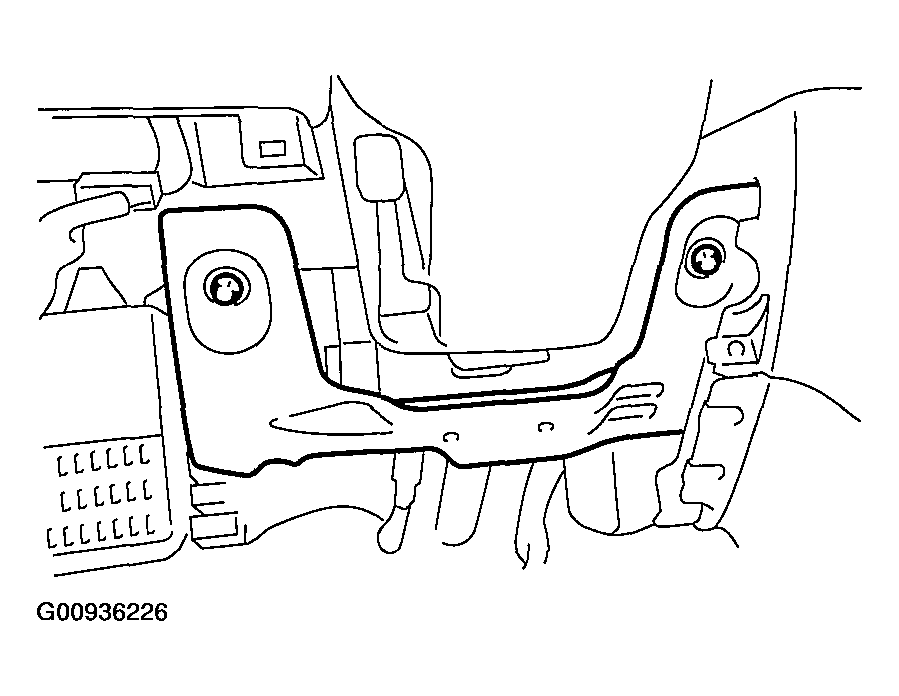

- Remove the knee bolster.
Courtesy of SUBARU OF AMERICA, INC.

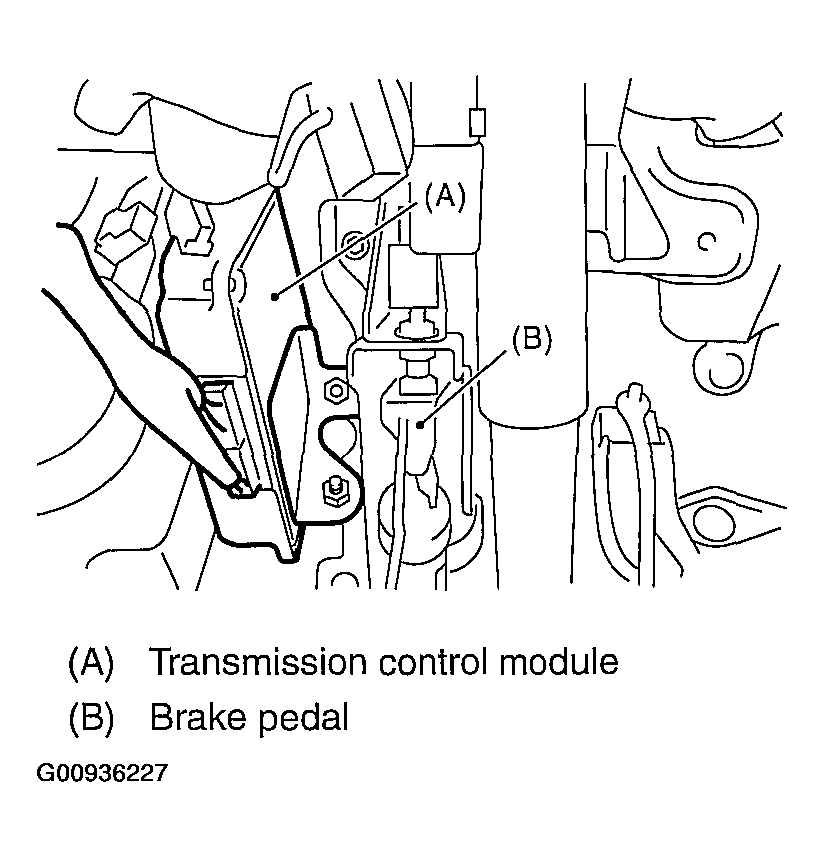

- Disconnect the connectors from transmission control module.
Courtesy of SUBARU OF AMERICA, INC.

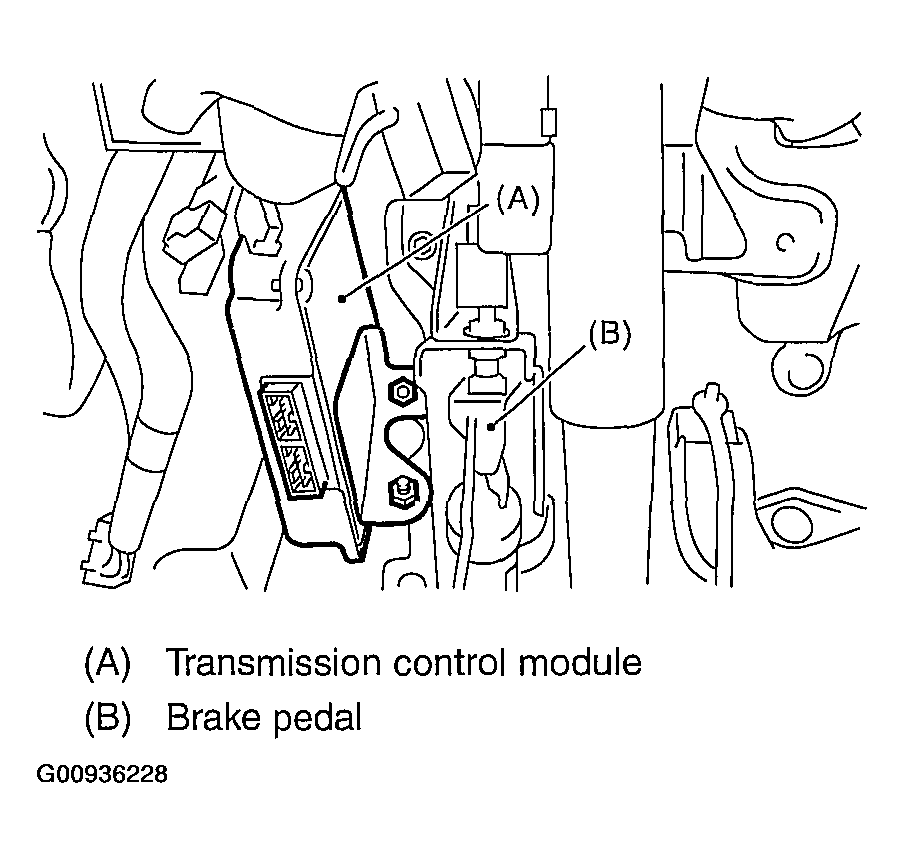

- Remove the transmission control module.
Courtesy of SUBARU OF AMERICA, INC.
