Transmission Control Module (TCM): Installation

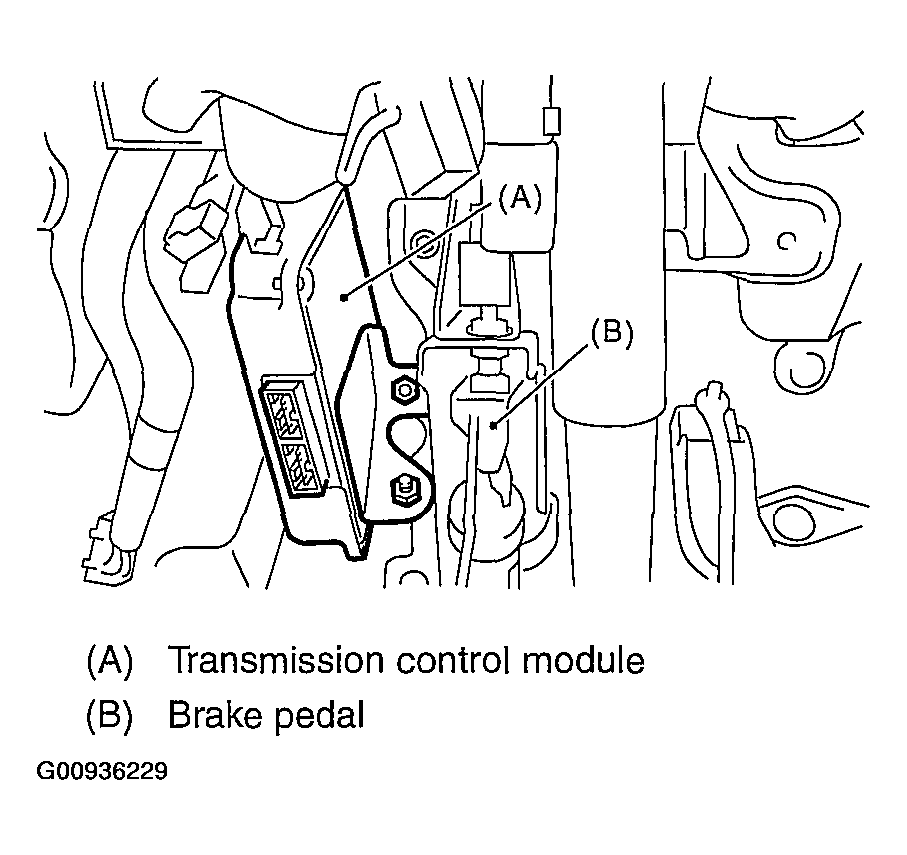

- Install the transmission control module.
- Tightening torque: 7.5 N.m (0.75 kgf-m, 5.5 ft-lb)
Courtesy of SUBARU OF AMERICA, INC.
- Connect the connectors to transmission control module.
- Install in the reverse order of removal.
