Extension Case: Disassembly

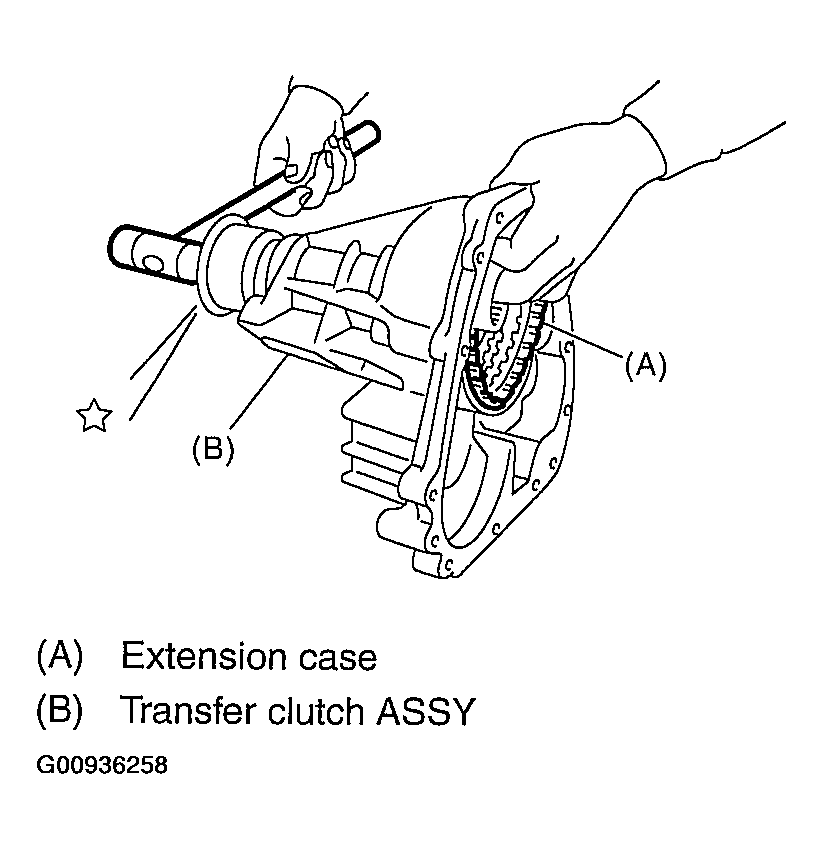

- Take out the transfer clutch assembly by lightly tapping the end of the rear drive shaft using a plastic hammer.
NOTE:
Be careful not to damage the oil seal in the extension.
Courtesy of SUBARU OF AMERICA, INC.

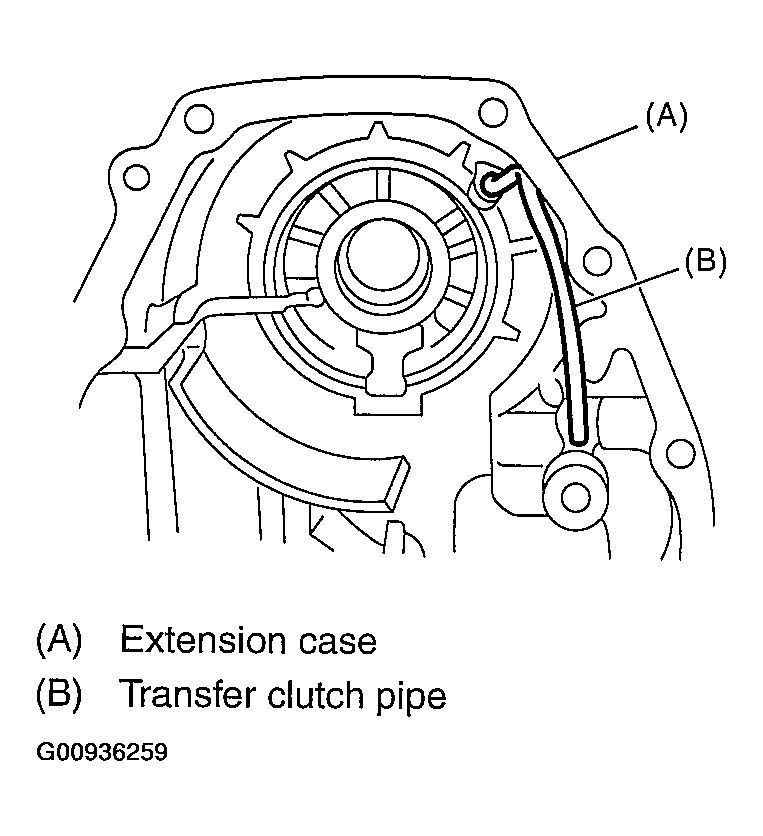

- Remove the transmission clutch pipe without bending pipe.
Courtesy of SUBARU OF AMERICA, INC.
- Remove the dust cover from the extension case.
- Remove the oil seal from the extension case.
