Tumble Generator Valve Assembly: Removal

Release the fuel pressure. Refer to FUEL .
Open the fuel filler lid and remove the fuel filler cap.
Disconnect the ground cable from battery.

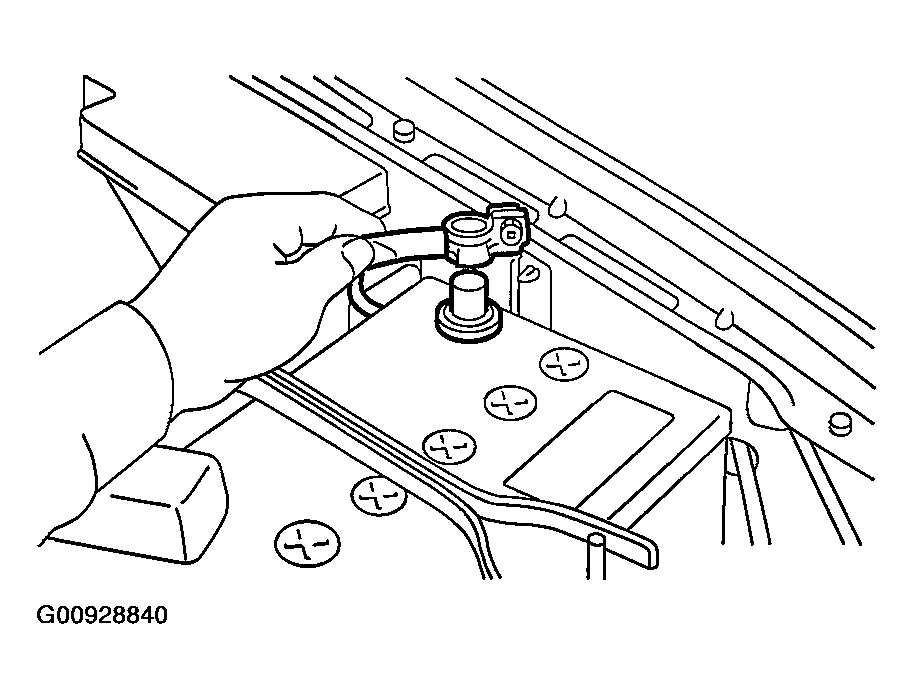

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the intake manifold. Refer to INTAKE MANIFOLD .
Disconnect the connector from the tumble generator valve sensor.

Fig 2: Disconnecting Connector
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from the tumble generator valve actuator.

Fig 3: Disconnecting Connector From Tumble Generator Valve Actuator
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel injector. Refer to FUEL INJECTOR .
Remove the tumble generator valve body from the intake manifold.

Fig 4: Removing Tumble Generator Valve Body From Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.
