Electronic Control Throttle Relay: Removal

  1. Disconnect ground cable from battery.

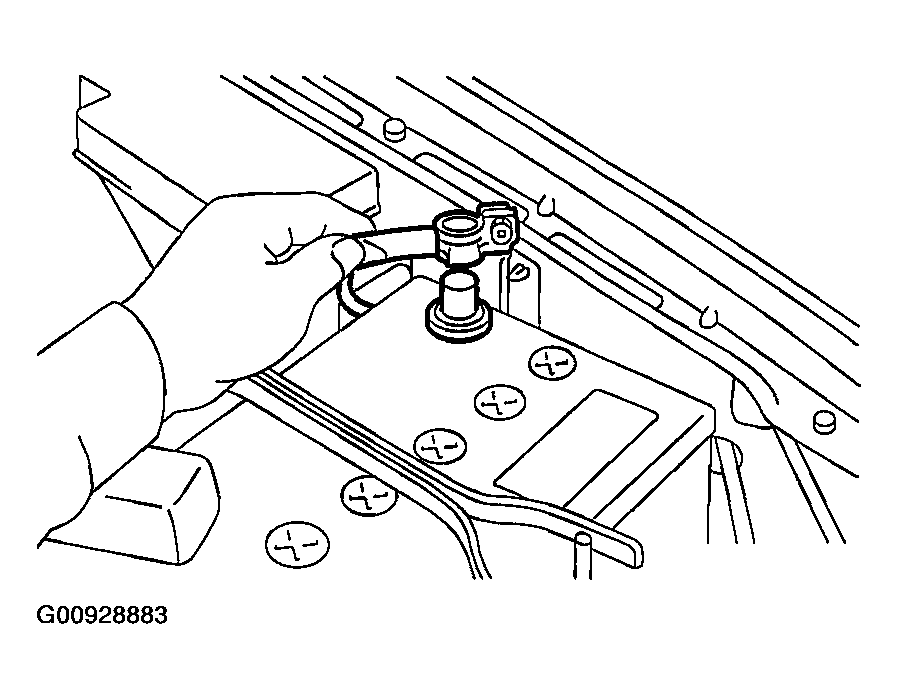

    Fig 1: Disconnecting Ground Cable From Battery
    G00928883Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect connector form the passenger's side electronic control throttle relay.
  3. Remove the electronic control throttle relay from the bracket.

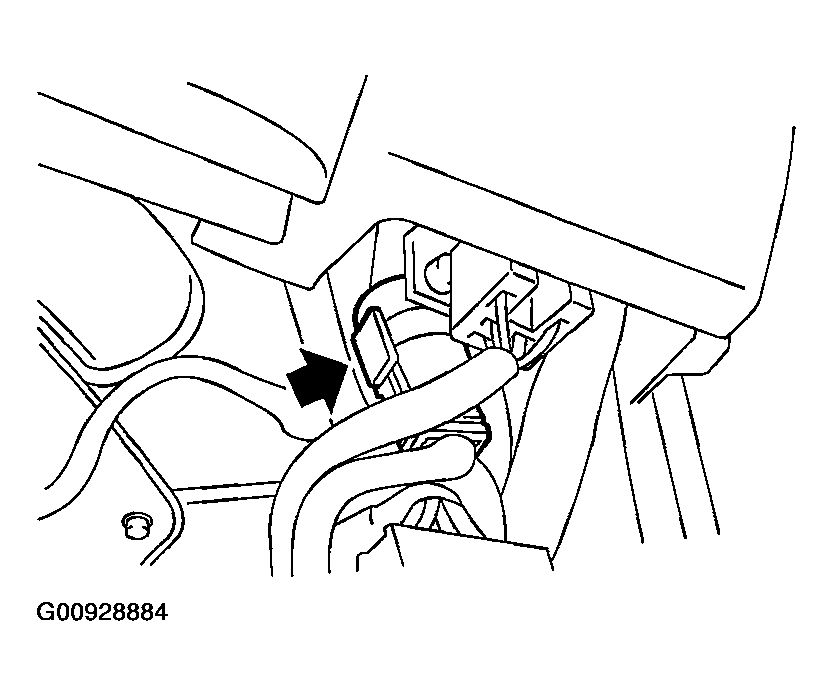

    Fig 2: Removing Electronic Control Throttle Relay From Bracket
    G00928884Courtesy of SUBARU OF AMERICA, INC.
