Clutch - Mechanism & Function
>>
Cross Sectional View
>>
Non-Turbo Models
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Non-Turbo Models

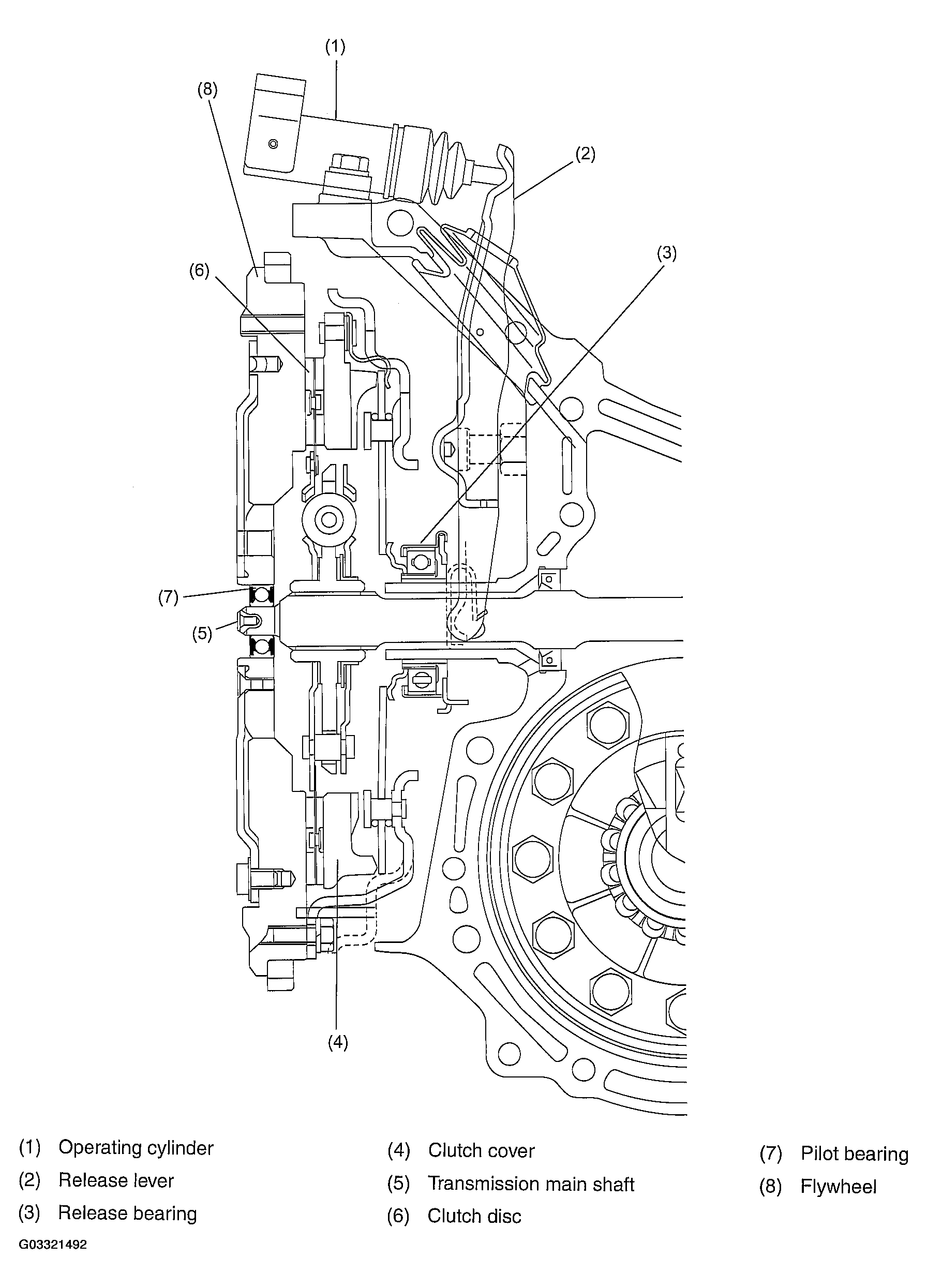

Fig 1: Identifying Cross Sectional View (NON-Turbo Models)
Courtesy of SUBARU OF AMERICA, INC.
