A/T & M/T Control Systems: General Description: Component

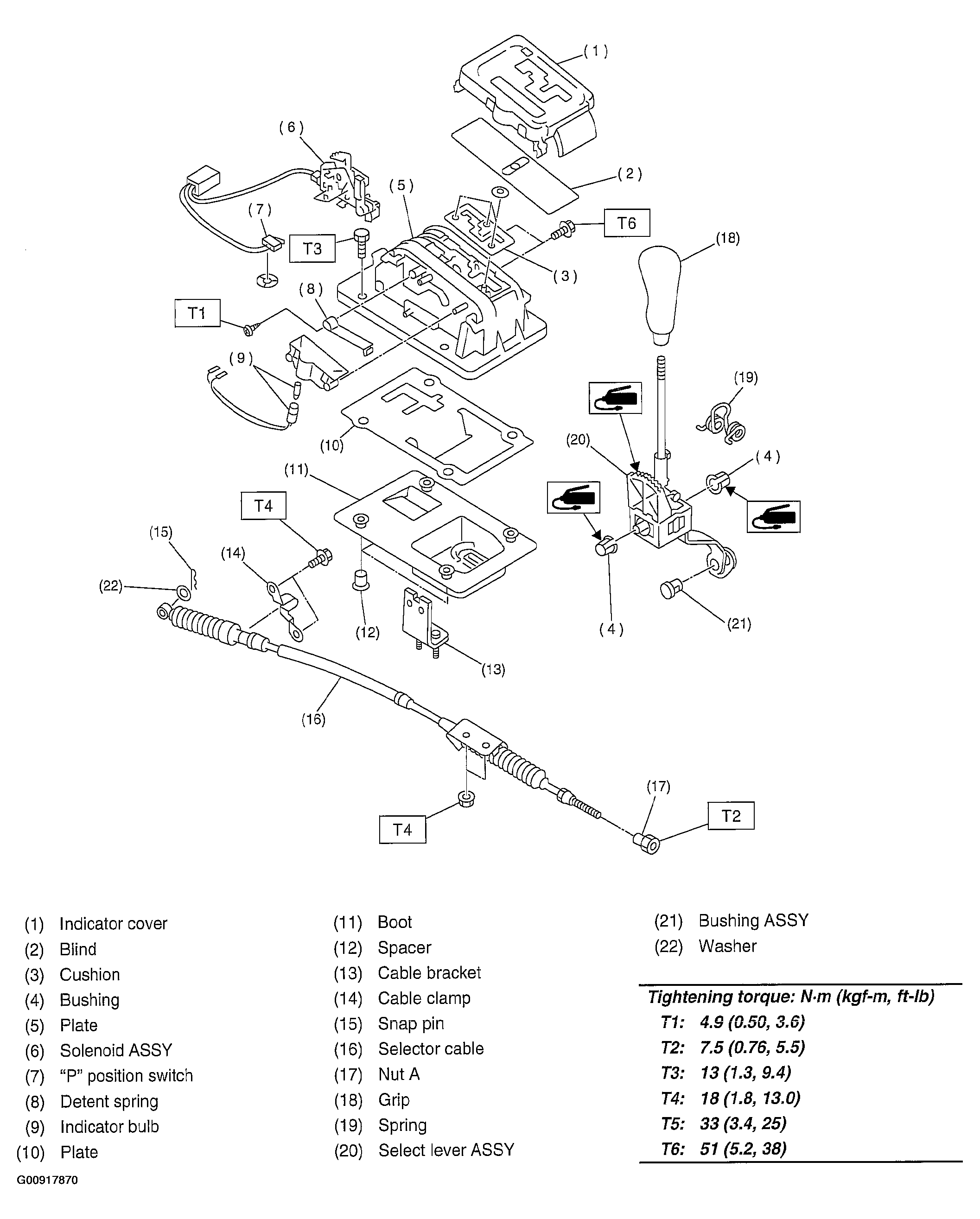

AT SELECT LEVER (EXCEPT SPORT SHIFT MODEL)

Fig 1: Exploded View Of AT Select Lever (Except Sport Shift Model) Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.

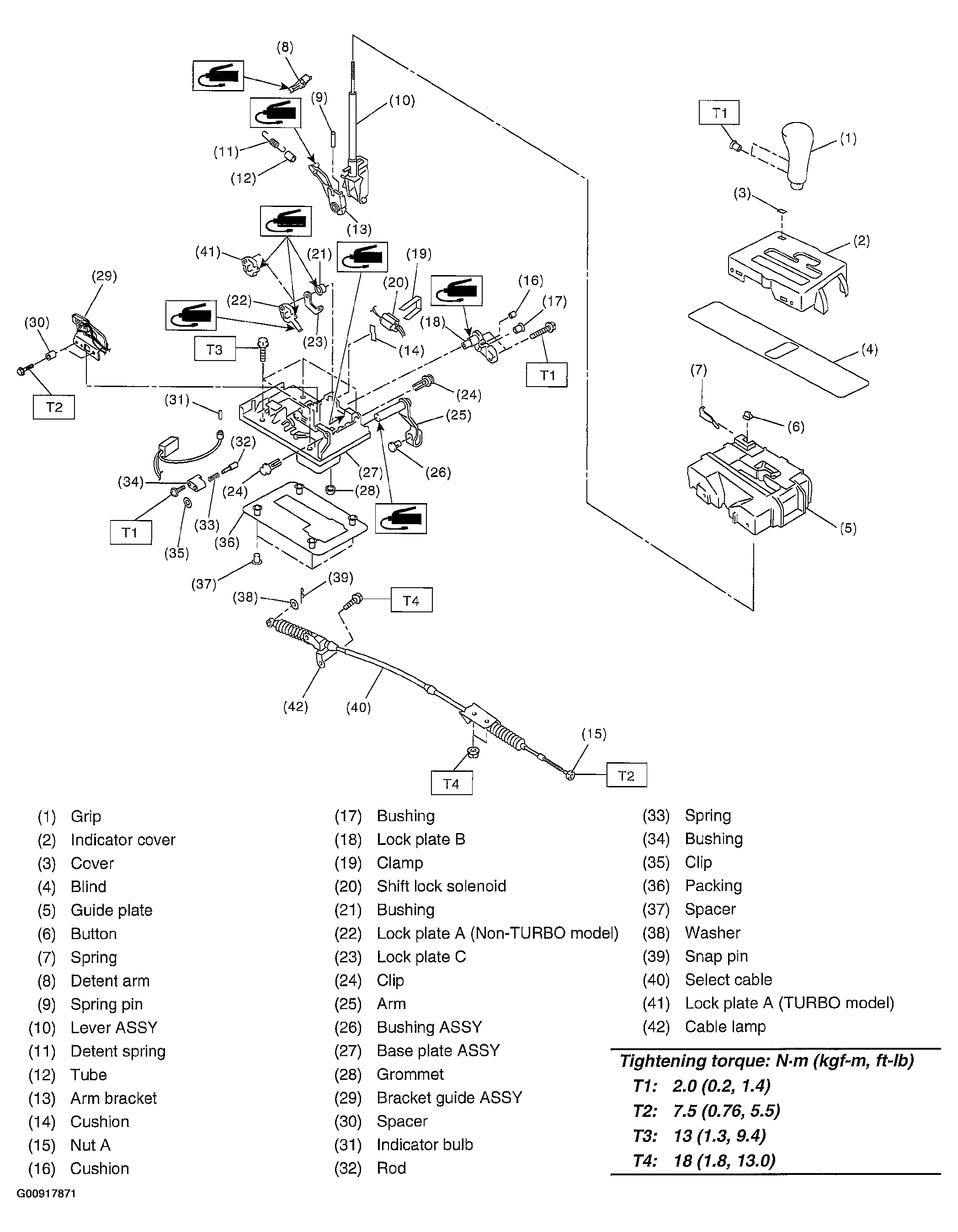

AT SELECT LEVER (SPORT SHIFT MODEL)

Fig 2: Exploded View Of AT Select Lever (Sport Shift Model) Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.

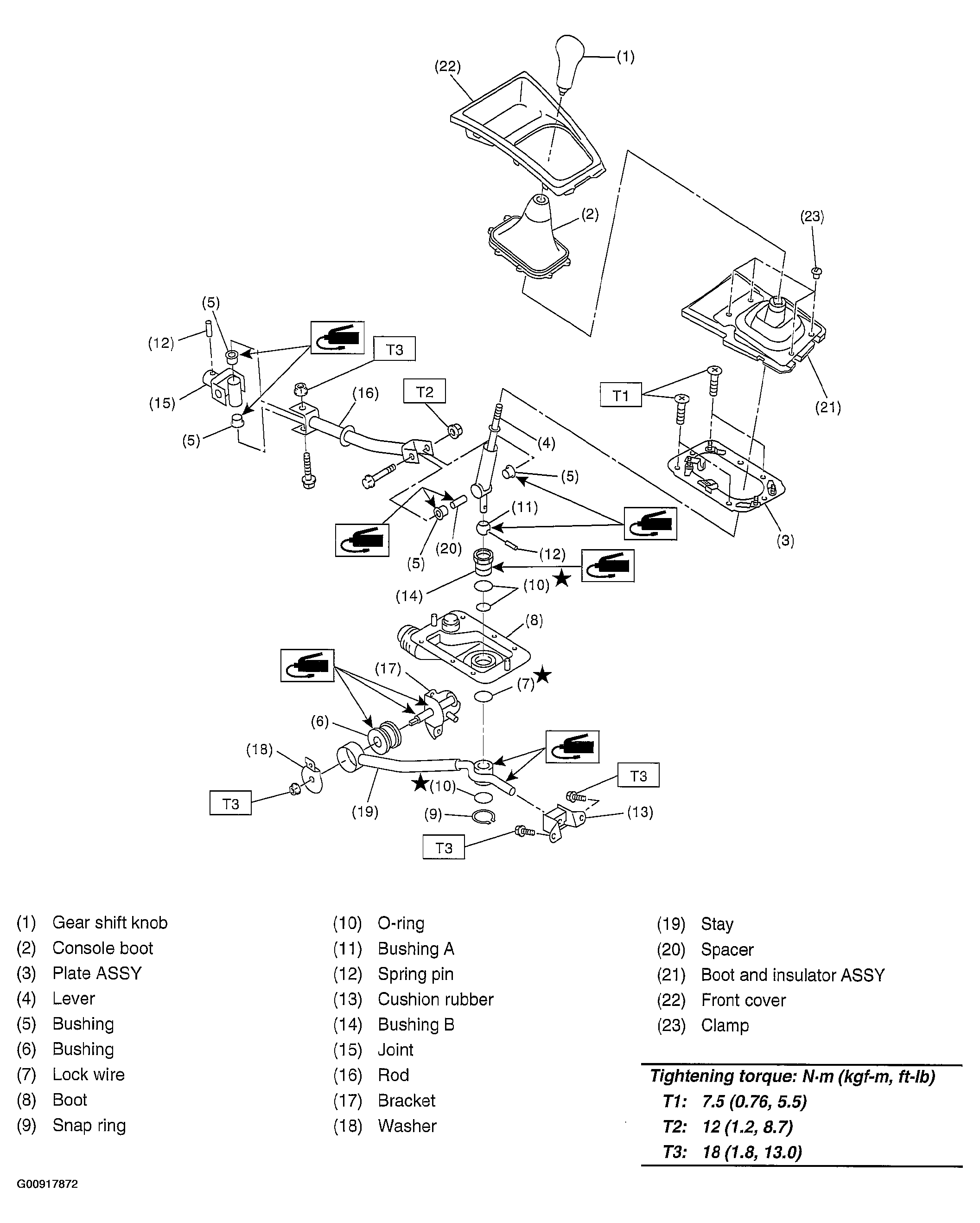

MT GEAR SHIFT LEVER

Fig 3: Exploded View Of MT Gear Shift Lever Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
