Operation Table

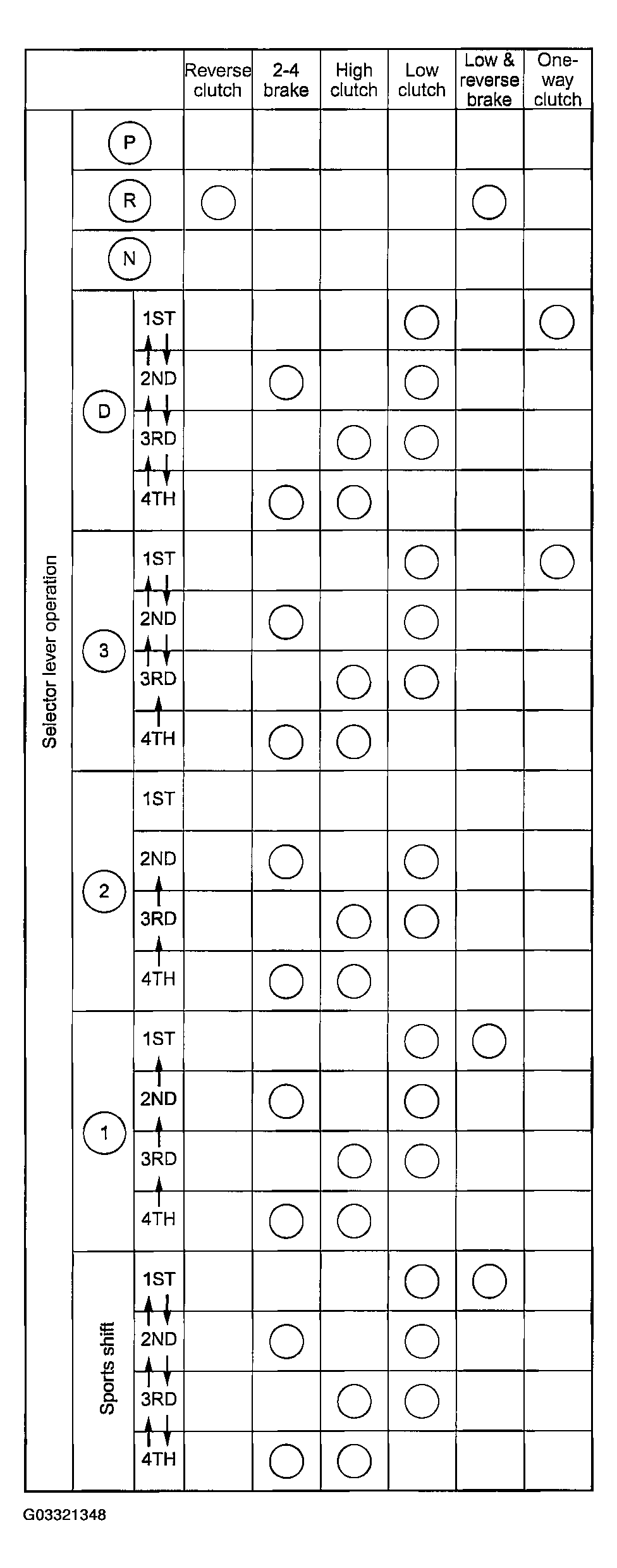

Fig 1: Operation Specification Table

G03321348

Courtesy of SUBARU OF AMERICA, INC.
