Section 12 (Clutch System): Flywheel: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transmission assembly. Refer to REMOVAL , Manual Transmission Assembly.
  2. Remove the clutch cover and clutch disc. Refer to CLUTCH DISC AND COVER .
  3. Using the ST, remove the flywheel.
    1. ST 498497100 CRANKSHAFT STOPPER

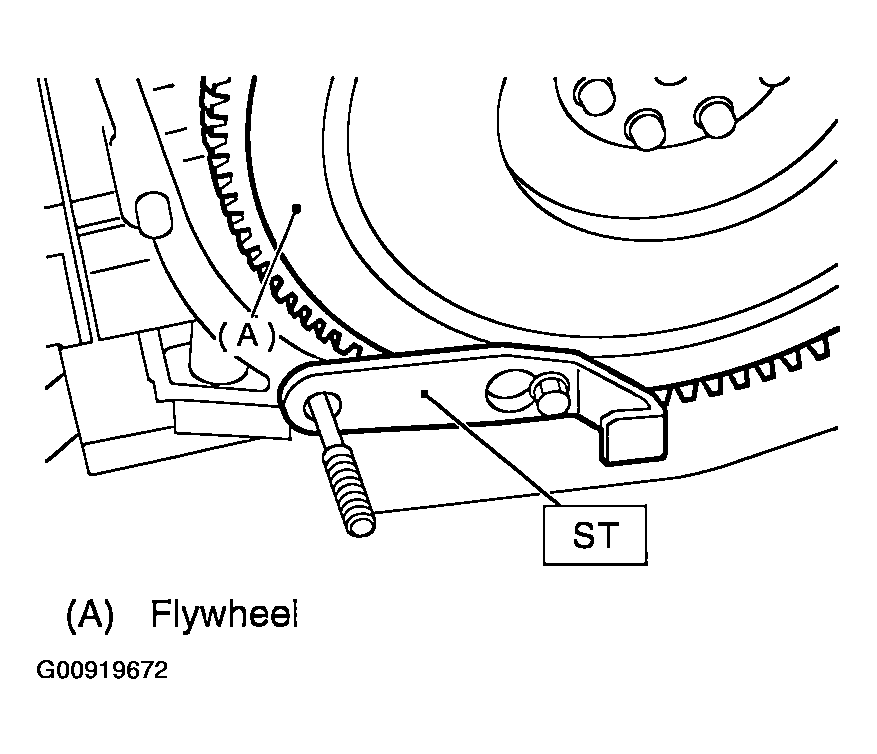

    Fig 1: Removing Flywheel
    G00919672Courtesy of SUBARU OF AMERICA, INC.
