Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

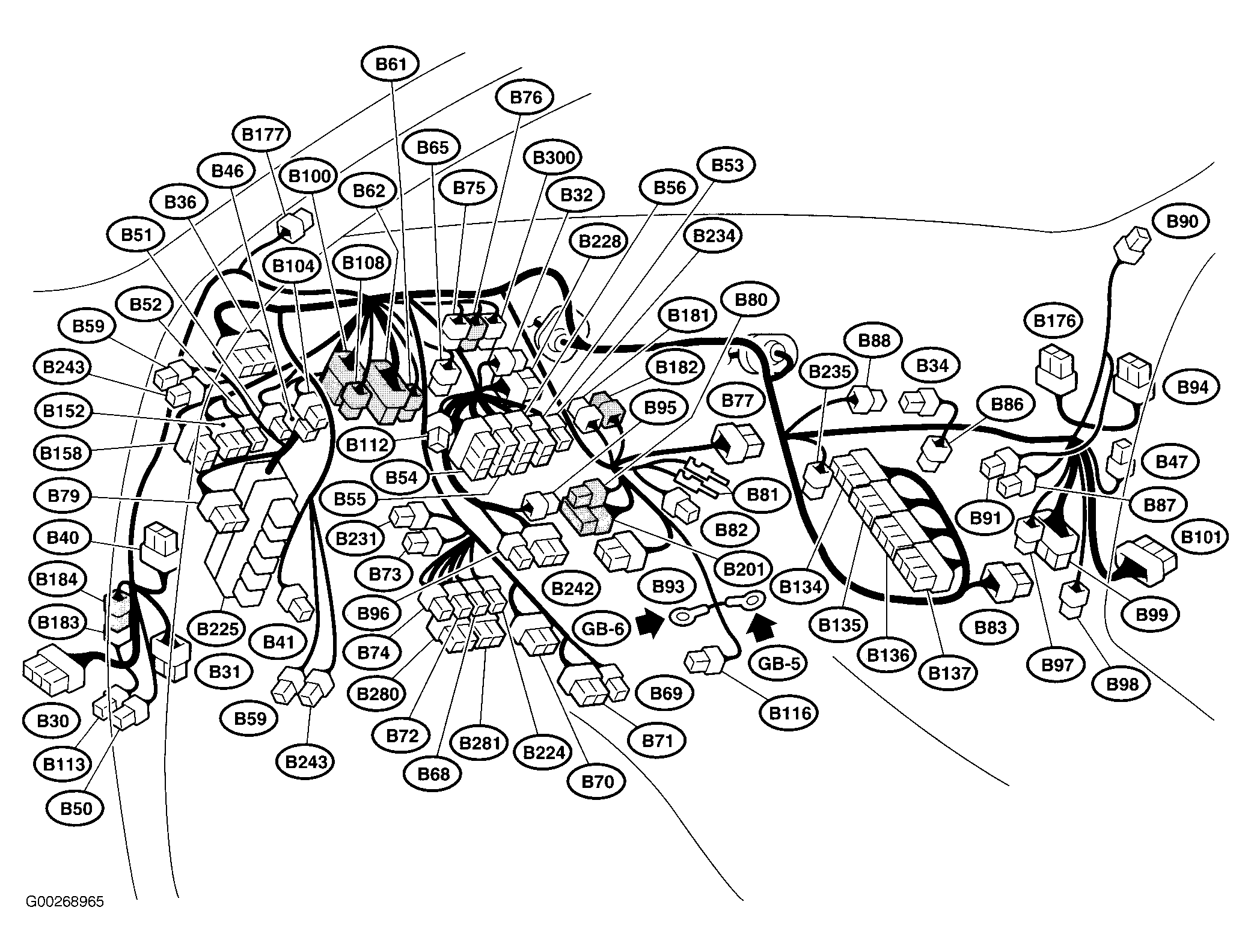

| Fuse (Relay Block) (2.5L) (B225) | Left end of dash. See Figure. |

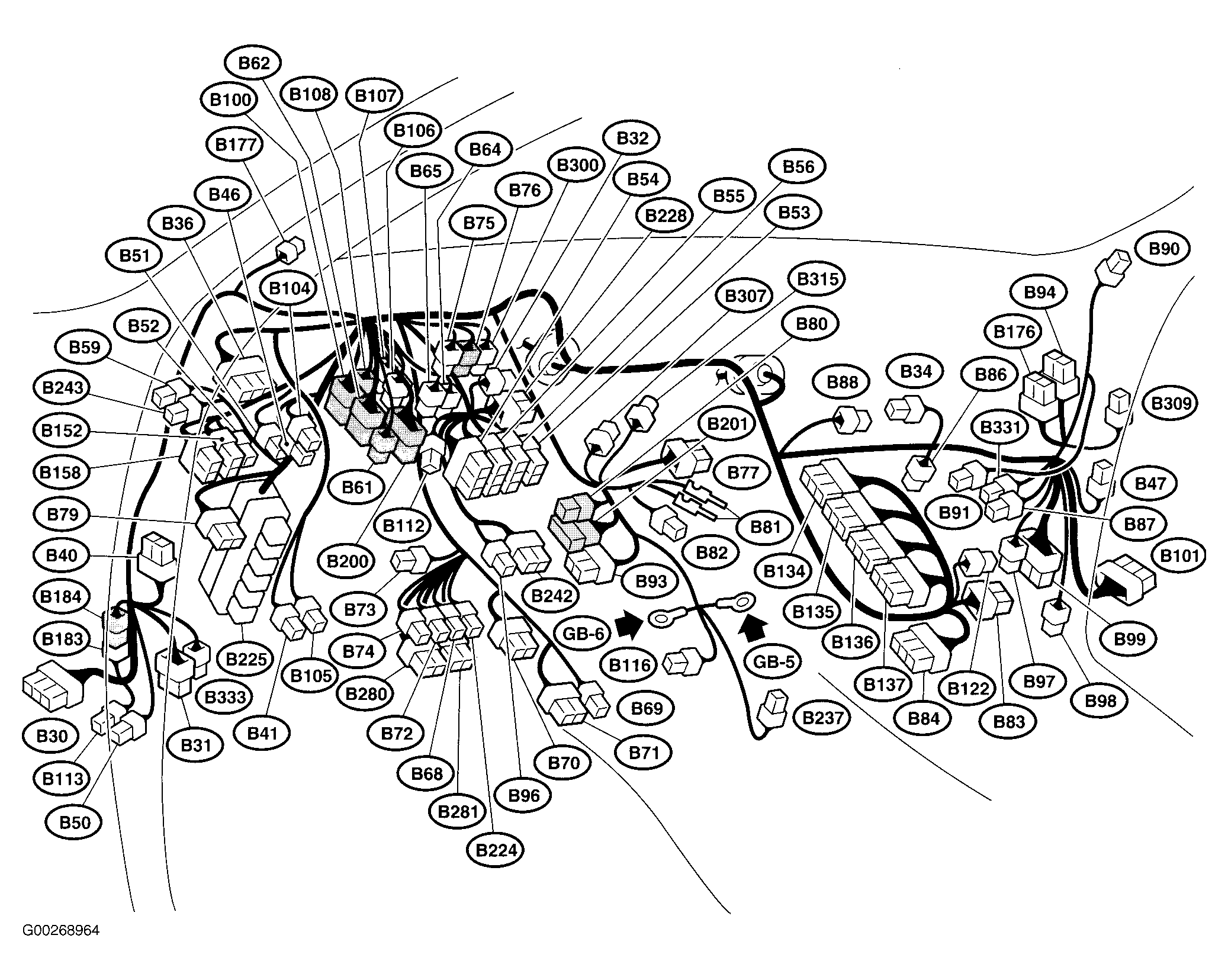

| Fuse (Relay Block) (3.0L) (B225) | Left end of dash. See Figure. |

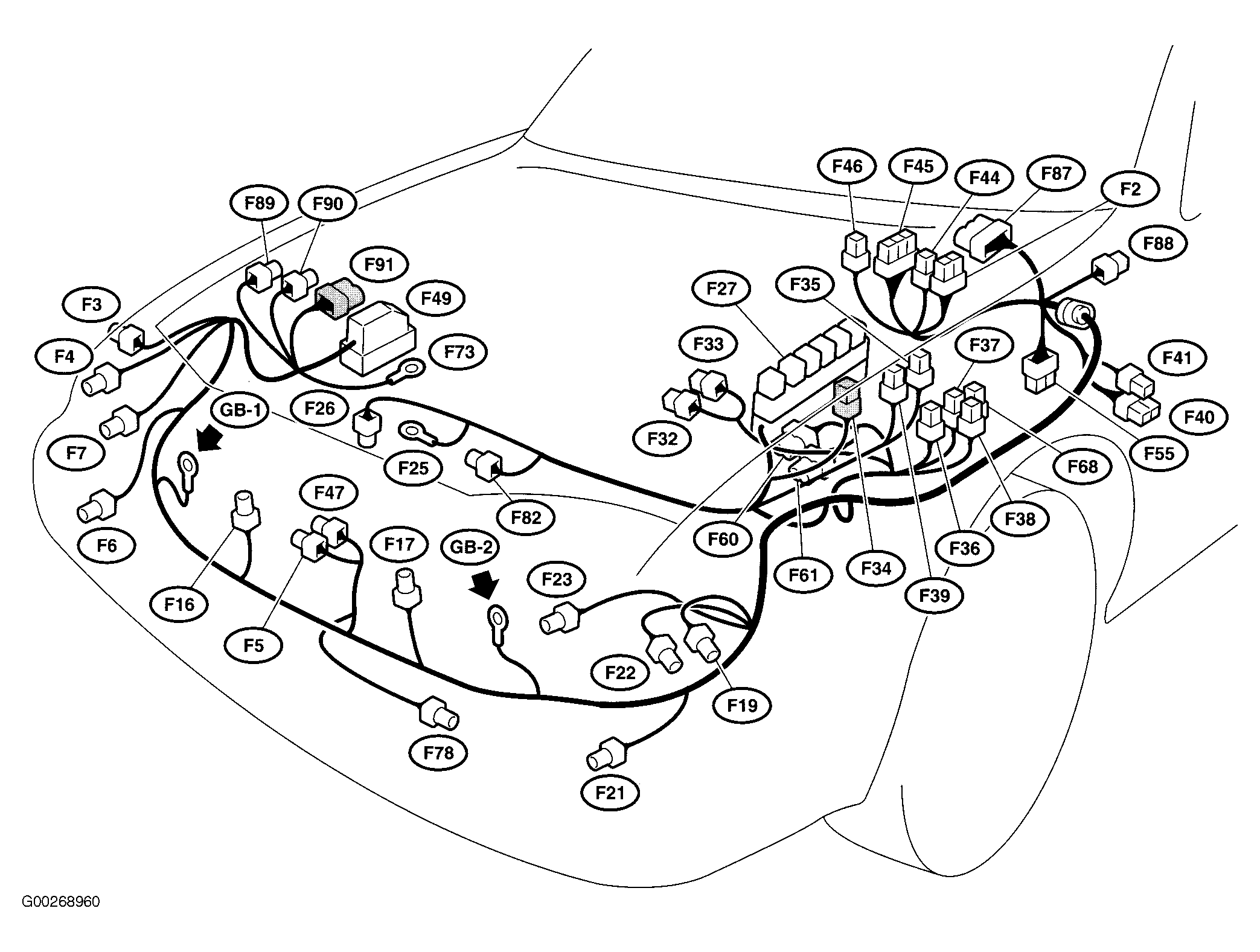

| Fuse & Relay Box (F40. F41) | Left rear of engine compartment. See Figure. |
| Fuse & Relay Box (2.5L) (B51, B52, B152, B158) | Left end of dash. See Figure. |
| Fuse & Relay Box (3.0L) (B51, B52, B152, B158) | Left end of dash. See Figure. |
| Main Fuse Box (F35, F26, F37, F38, F39, F68) | Left side of engine compartment. See Figure. |
| Power Window Circuit Breaker (2.5L) (B41) | Lower left end of dash. See Figure. |
| Power Window Circuit Breaker (3.0L) B41) | Lower left end of dash. See Figure. |
| Relay Block (VDC) (F89, F90) | Right side of engine compartment. See Figure. |
| Relay Holder (F27) | Left side of engine compartment. See Figure. |
| SBF Holder (F34) | Left side of engine compartment. See Figure. |
