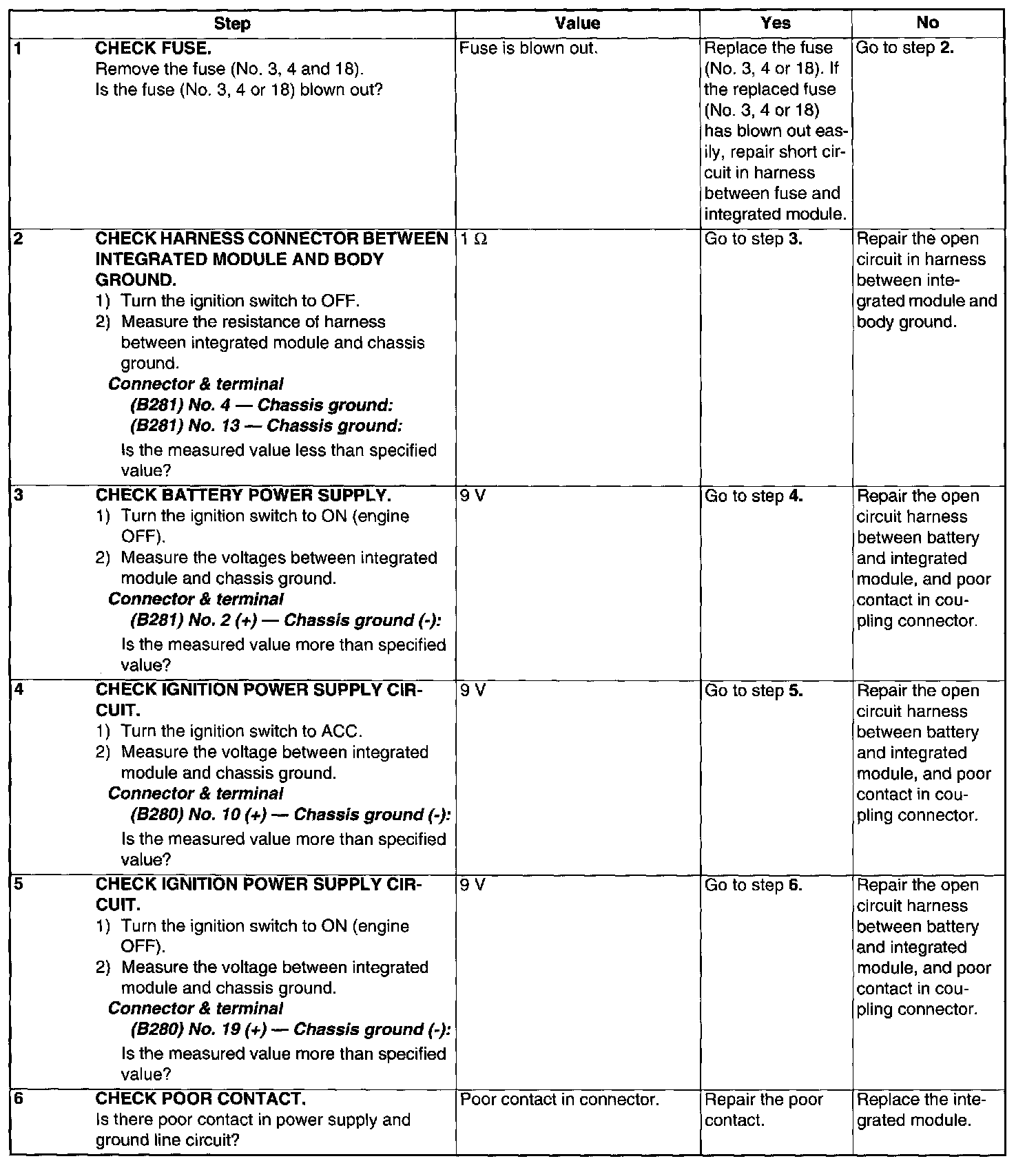

Integrated Module Power Supply and Ground Line
INTEGRATED MODULE POWER SUPPLY AND GROUND LINE
WIRING DIAGRAM:
