Removal and Installation

REMOVAL

1. Disconnect battery ground cable.

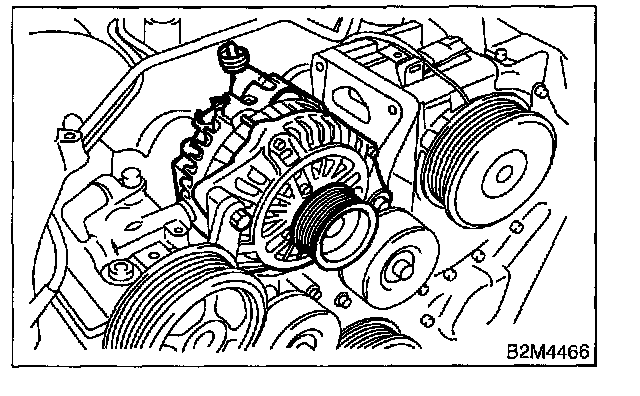

2. Disconnect connector and terminal from generator.
3. Remove V-belt.

4. Remove bolt (A), and loosen bolt (B). Then, remove generator from bracket.

INSTALLATION
Install in the reverse order of removal.
