Compartment Temperature Does Not Change

COMPARTMENT TEMPERATURE DOES NOT CHANGE FROM "SET" TEMPERATURE OR AIR CONDITIONING SYSTEM DOES NOT RESPOND QUICKLY

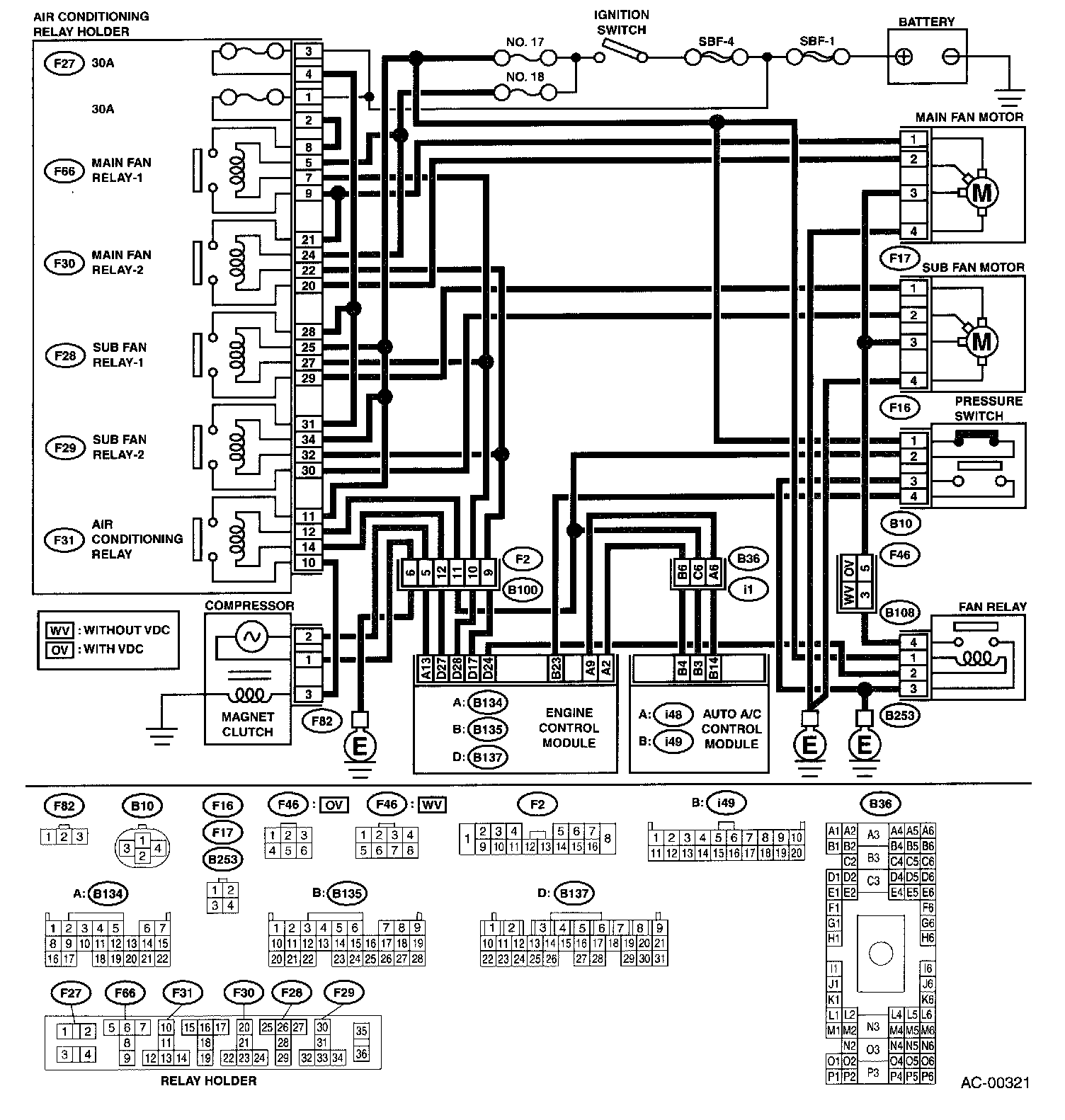

Wiring Diagram:




WIRING DIAGRAM:

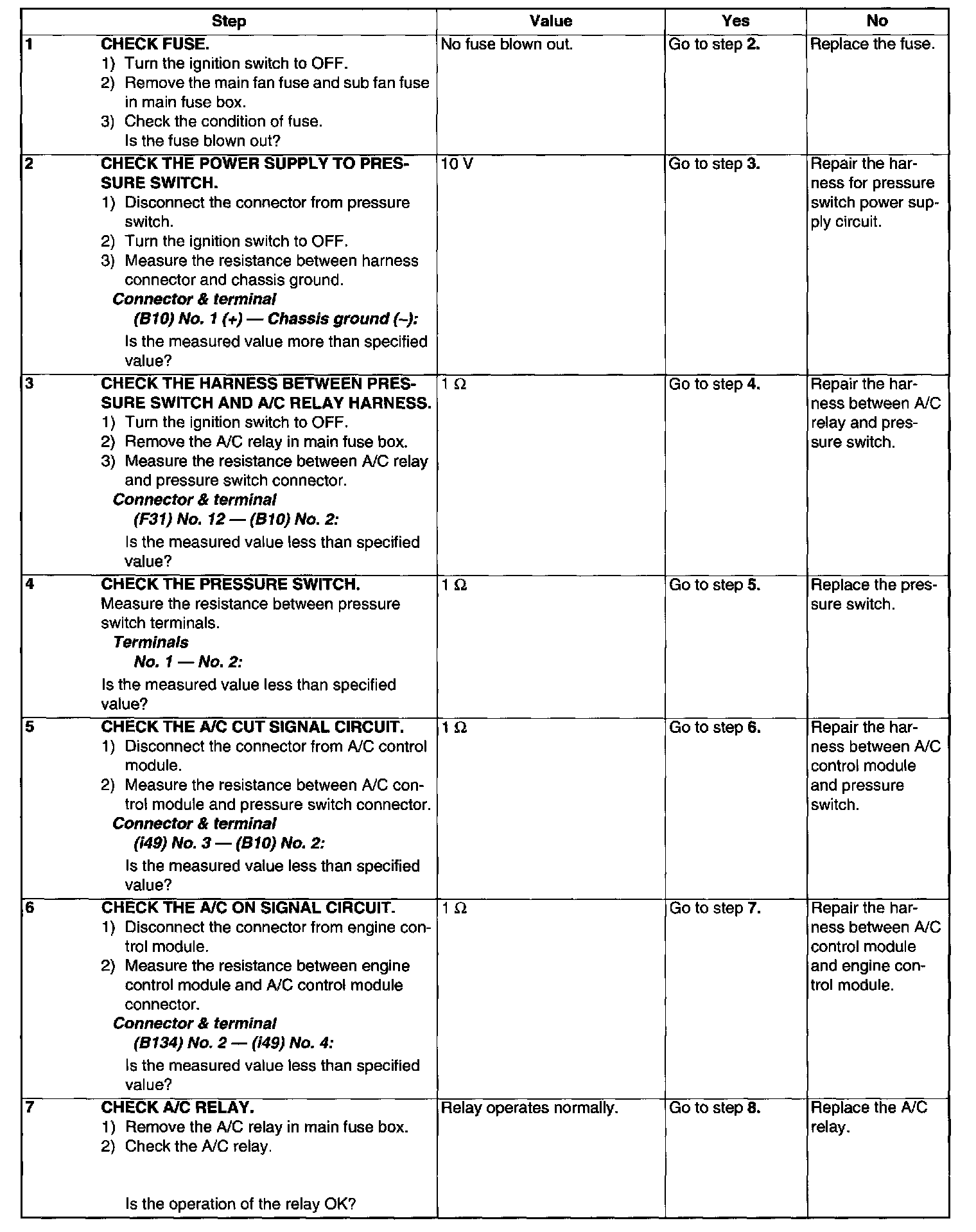

Step 1 - 7:

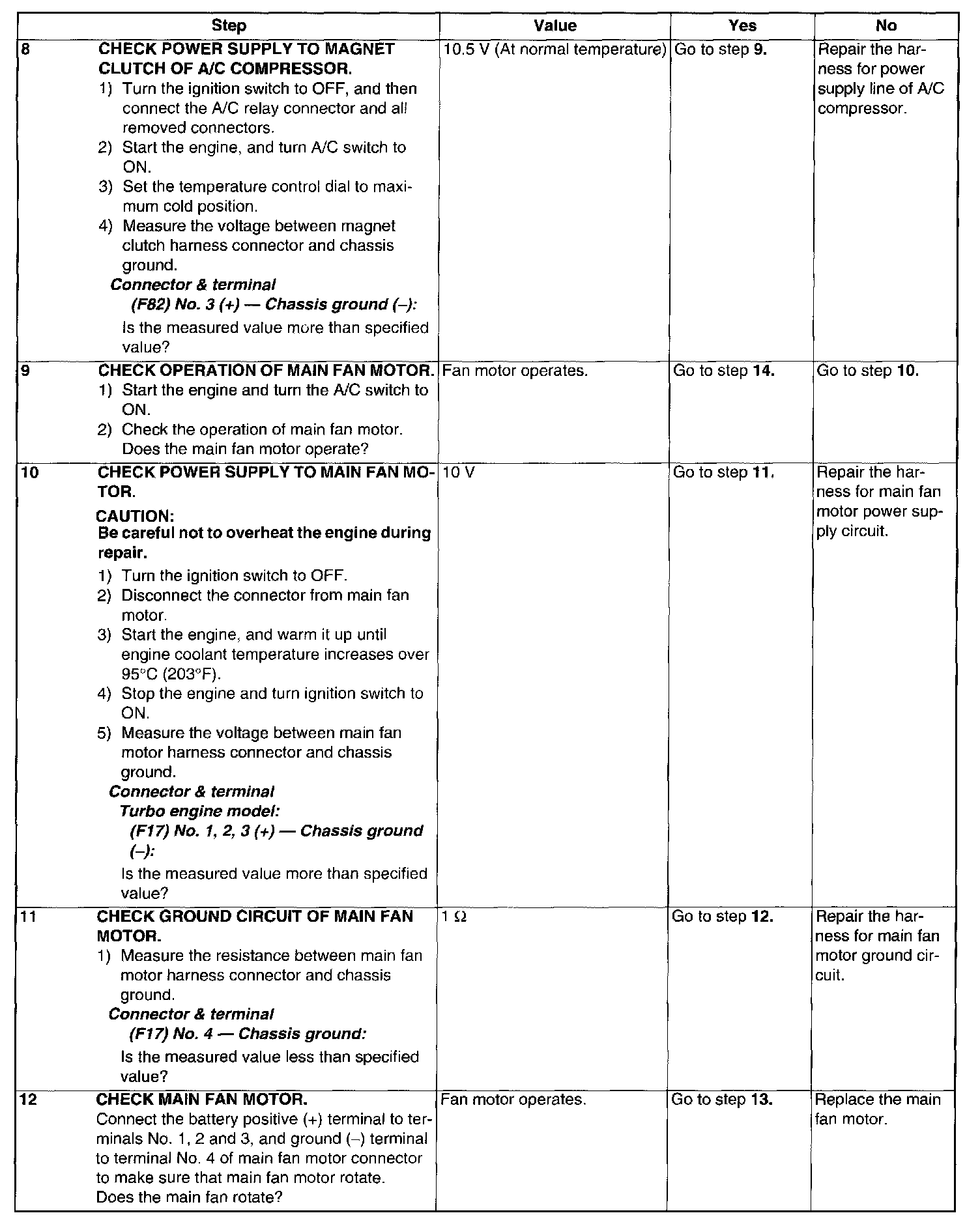

Step 8 - 12:

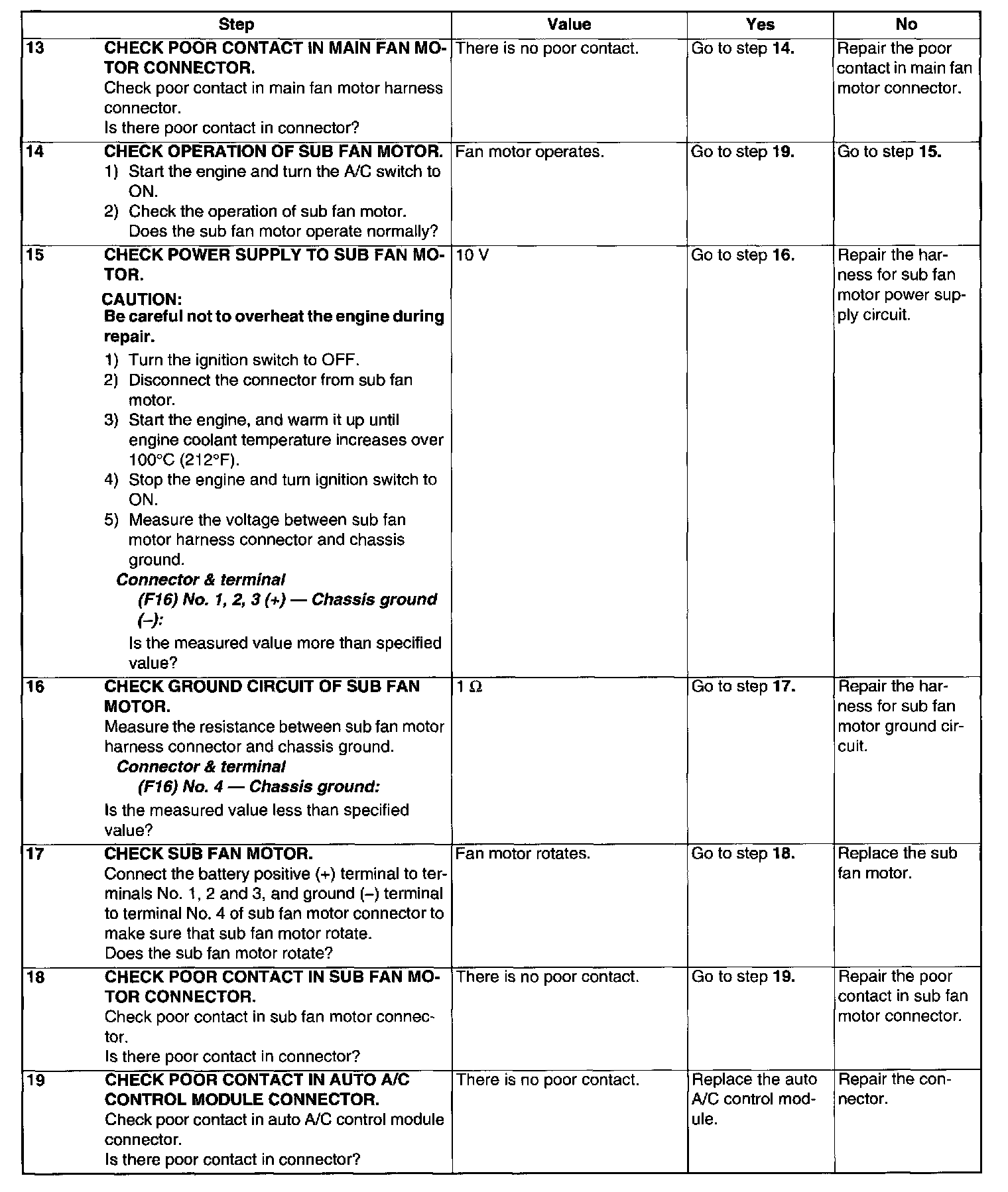

Step 13 - 19:
