Mode Selector Switch and Air Flow





Air Distribution Ratio

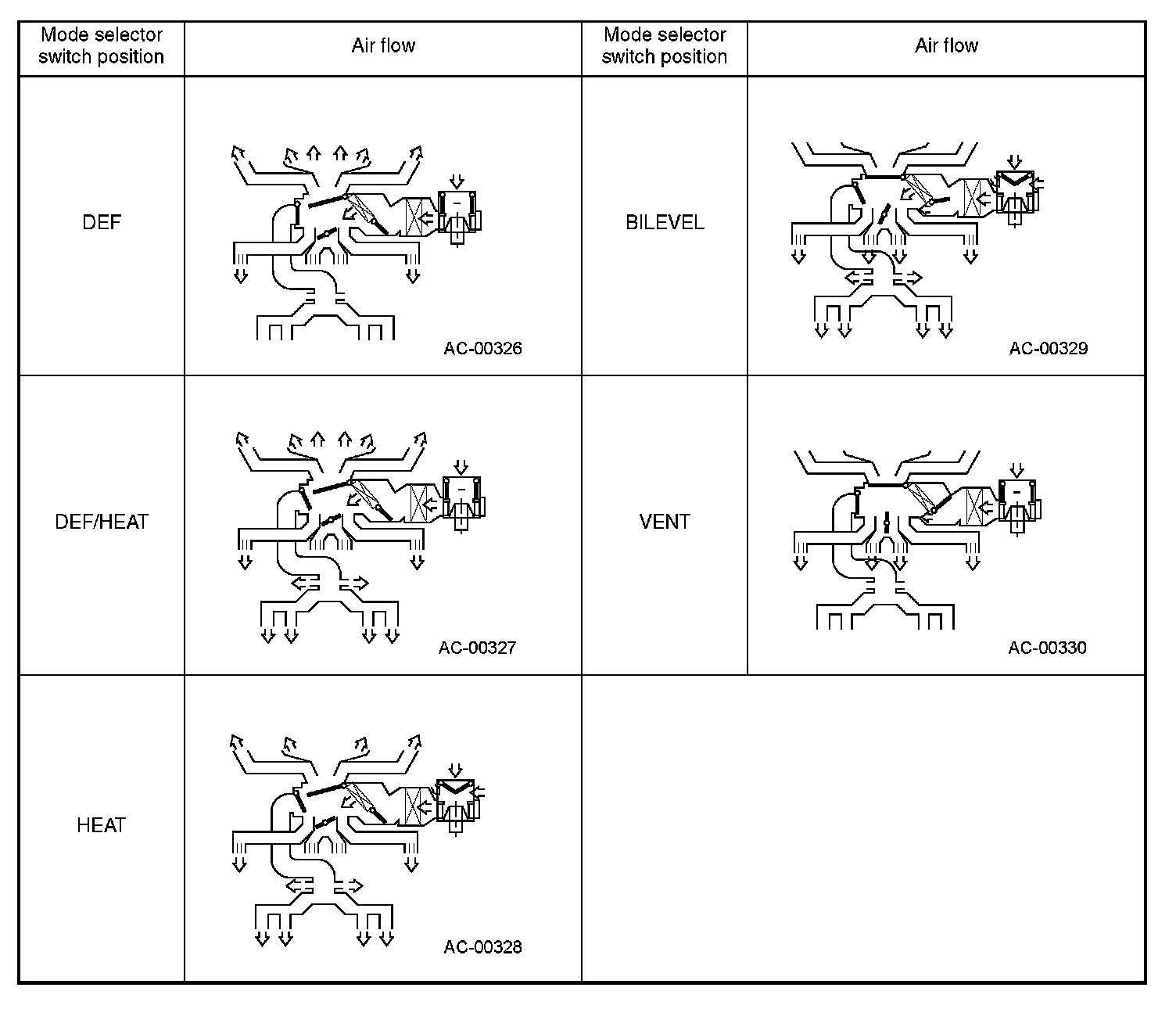

The above diagram shows air distribution for each position of the mode selector switch.

Air Flow:





System Control Flow:
