Release Bearing And Lever: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transmission assembly from vehicle body. < Ref. to REMOVAL , Manual Transmission Assembly.>
  2. Remove the two clips from clutch release lever and remove the release bearing.
    CAUTION: Be careful not to deform clips.
  3. Remove the release lever seal.

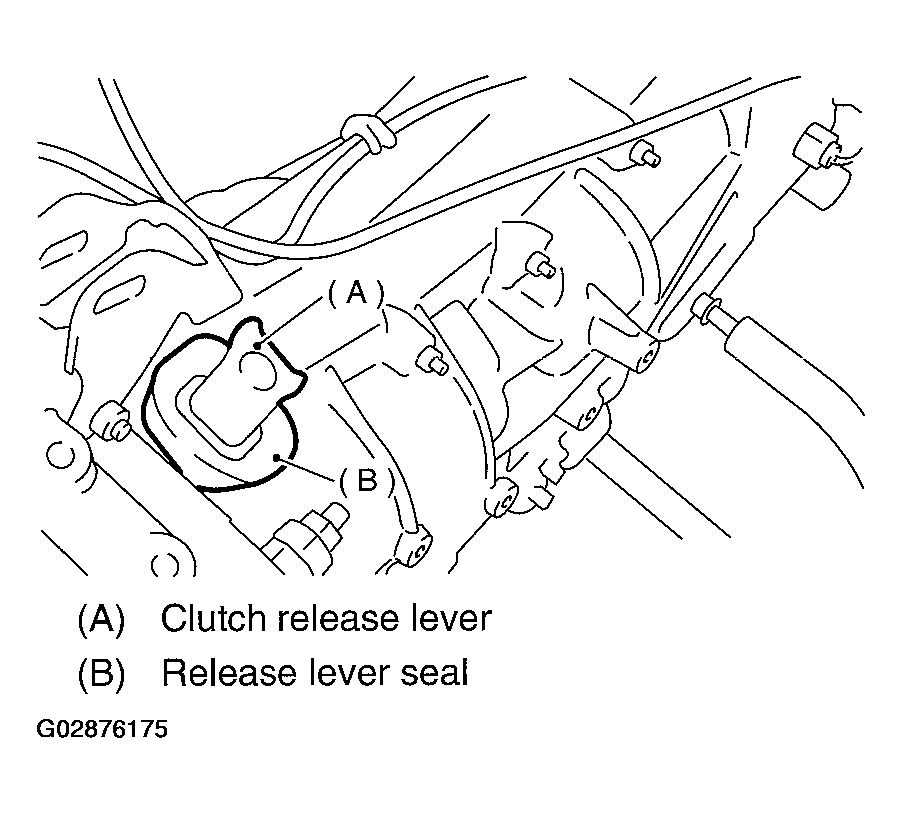

    Fig 1: Removing Release Lever Seal
    G02876175Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the release lever retainer spring from release lever pivot with a screwdriver by accessing it through clutch housing release lever hole. Then remove the release lever.

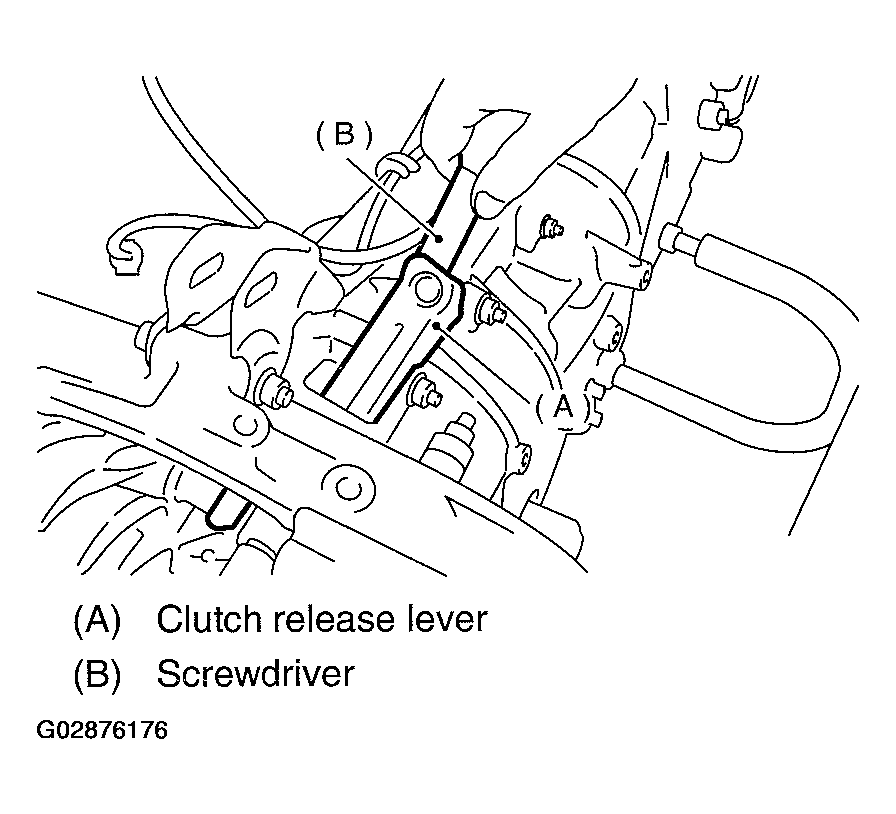

    Fig 2: Removing Release Lever Retainer Spring From Release Lever Pivot
    G02876176Courtesy of SUBARU OF AMERICA, INC.
