Lateral G Sensor Signal

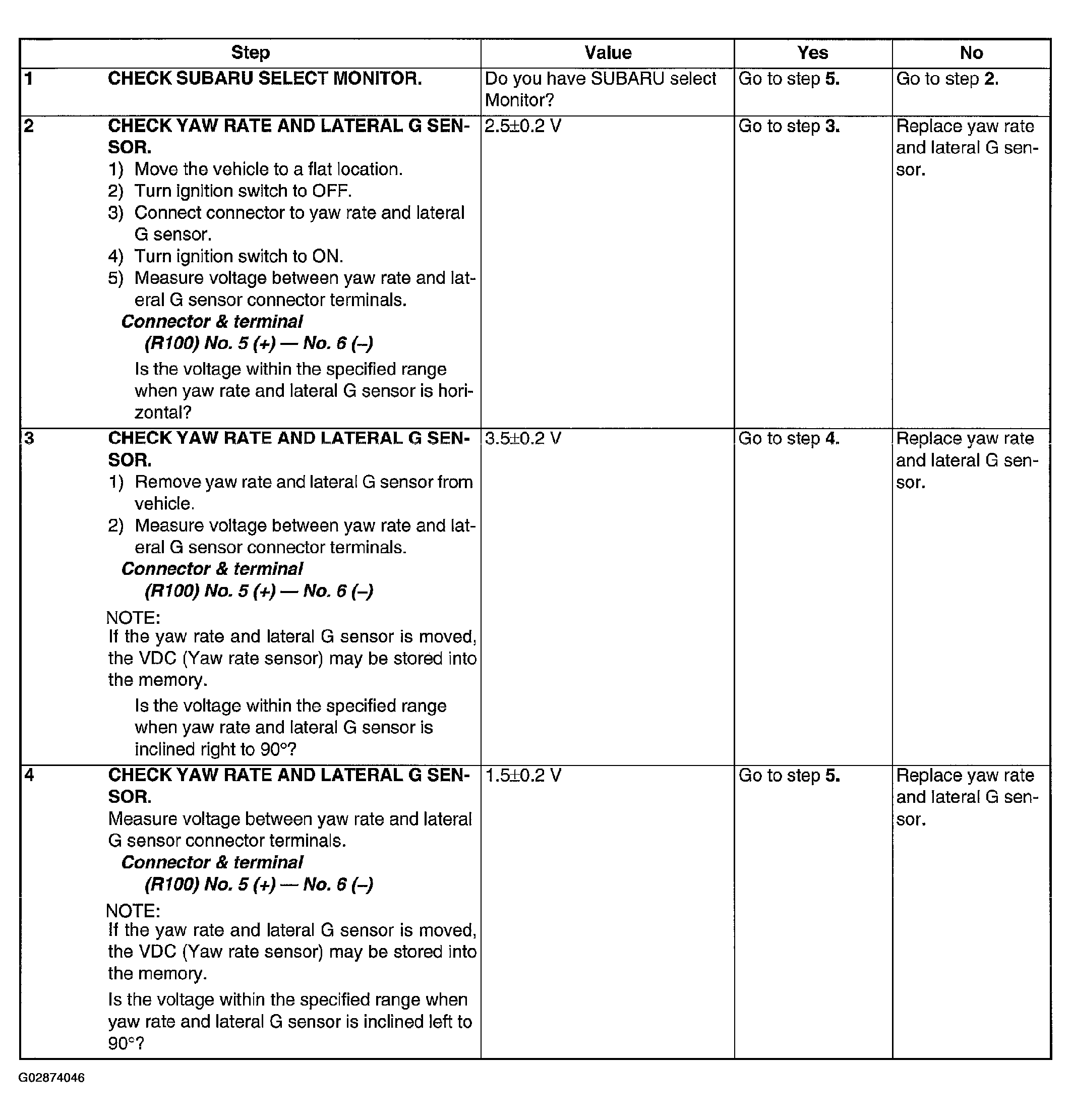

Fig 1: Lateral G Sensor Signal Chart (1 Of 2)
G02874046Courtesy of SUBARU OF AMERICA, INC.

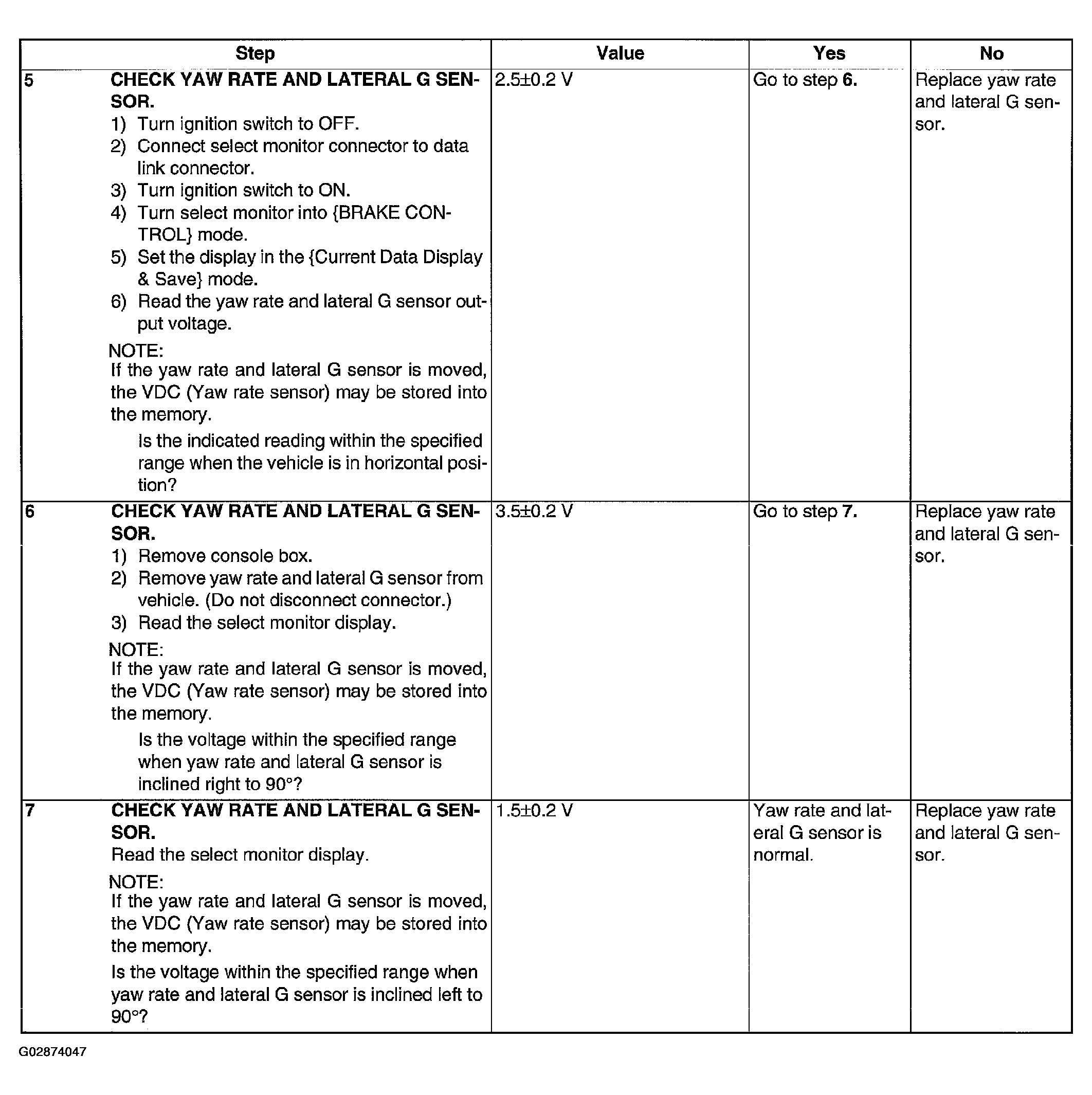

Fig 2: Lateral G Sensor Signal Chart (2 Of 2)
G02874047Courtesy of SUBARU OF AMERICA, INC.
