Vehicle Speed Sensor (VSS)

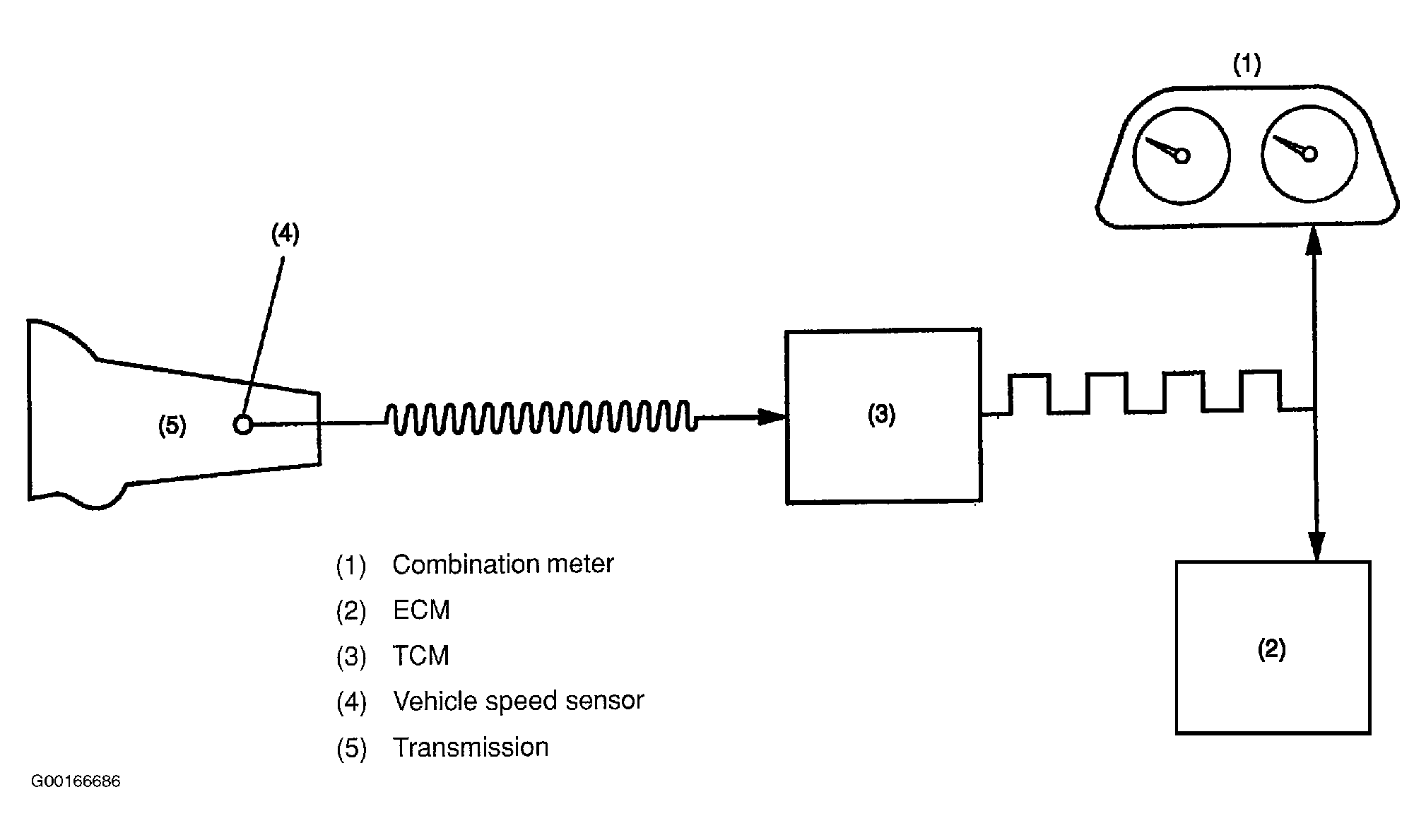

- A/T -
The vehicle speed sensor is mounted on the transmission. The vehicle speed sensor generates a 16-pulse signal for every rotation of the front differential and sends it to the transmission control module (TCM). The signal sent to the TCM is converted there into a 4-pulse signal, and then sent to the ECM and the combination meter.

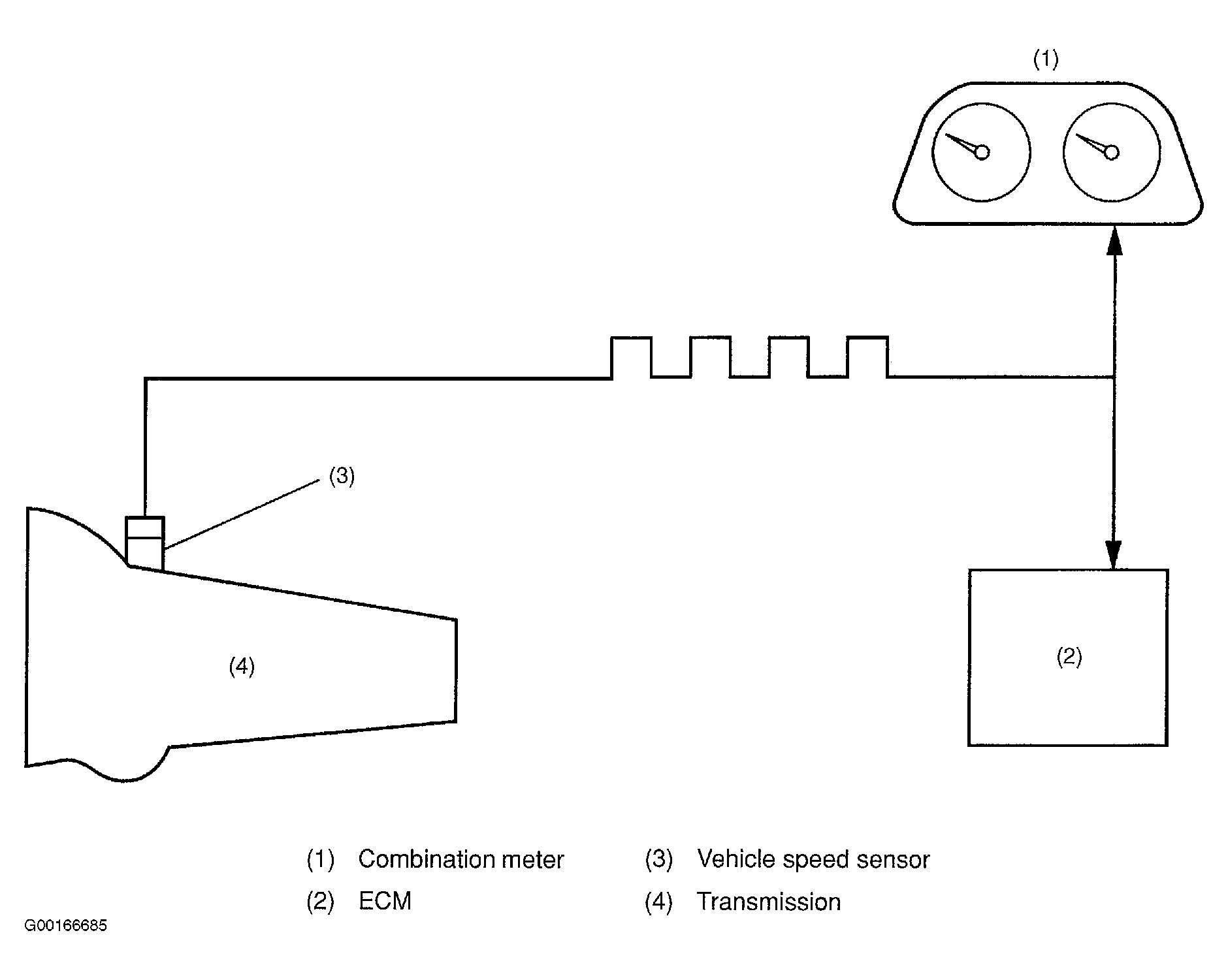

- M/T -
The vehicle speed sensor is mounted on the transmission. The vehicle speed sensor generates a 4-pulse signal for every rotation of the front differential and sends it to the ECM and the combination meter.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
