Knock Sensor: Installation
- Install knock sensor to cylinder block.
- Tightening torque:
25 N.m (2.5 kgf-m, 18 ft-lb)
NOTE:

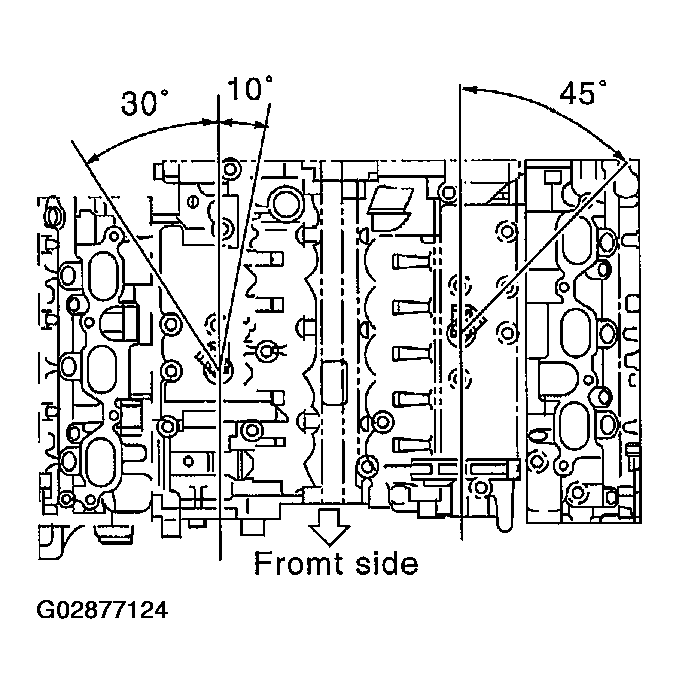

For the knock sensor's installation angle, refer to, See Fig 1.
Courtesy of SUBARU OF AMERICA, INC.
- Connect knock sensor connector.
- Install intake manifold. < Ref. to
INSTALLATION , Intake Manifold.>
- Connect battery ground cable.
Courtesy of SUBARU OF AMERICA, INC.
