Control Module I/O Signal: Schematic

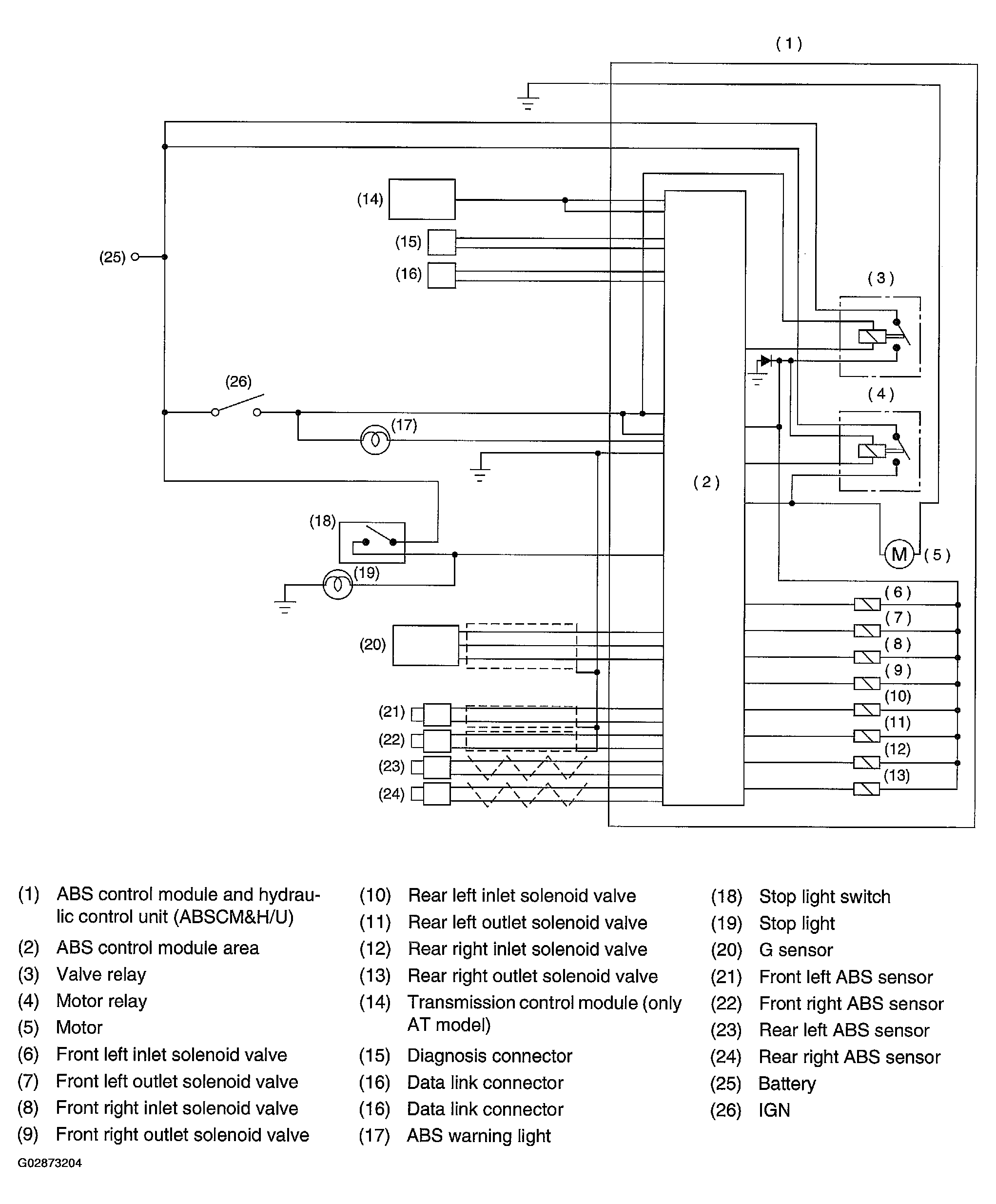

Fig 1: Control Module I/O Signal Schematic
G02873204Courtesy of SUBARU OF AMERICA, INC.
