Security Control Module: Removal
- Disconnect the ground cable from battery.
- Remove front cover (A).
- Remove screws (B) and then detach center panel (C) while disconnecting connector.
Courtesy of SUBARU OF AMERICA, INC.

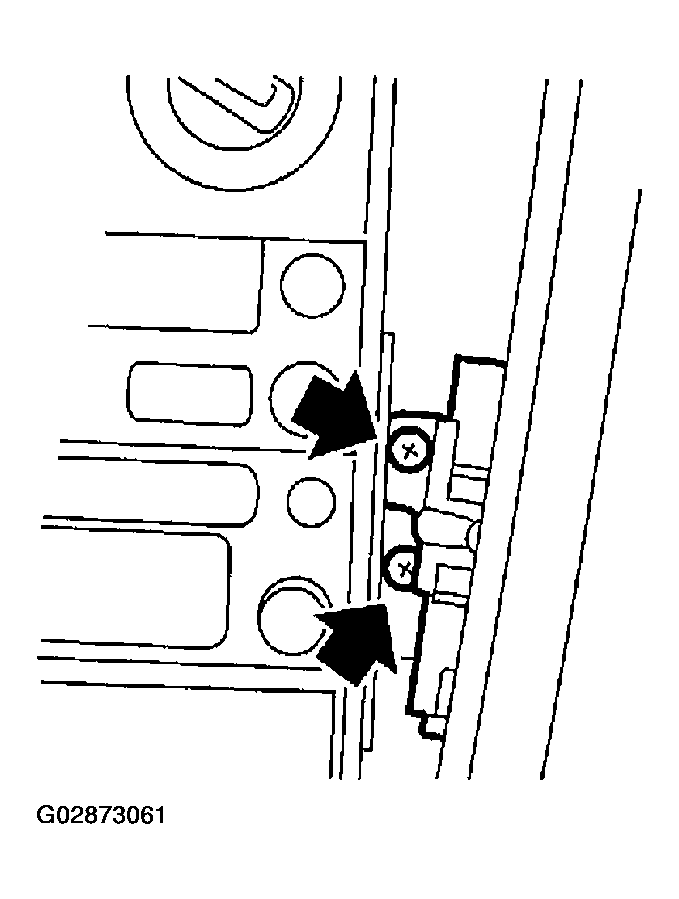

- Remove two screws.
NOTE:
Before removing the screw, apply a few turns of butyl tape to the tip of the service tool. This prevents the screw from falling during removal.
Courtesy of SUBARU OF AMERICA, INC.
- Remove radio and security control module together while disconnecting connector. < Ref. to
REMOVAL
, Radio Body.>
