Automatic Transmission - Mechanism & Function
>>
ELECTROHYDRAULIC Control System
>>
Input Signals
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Input Signals

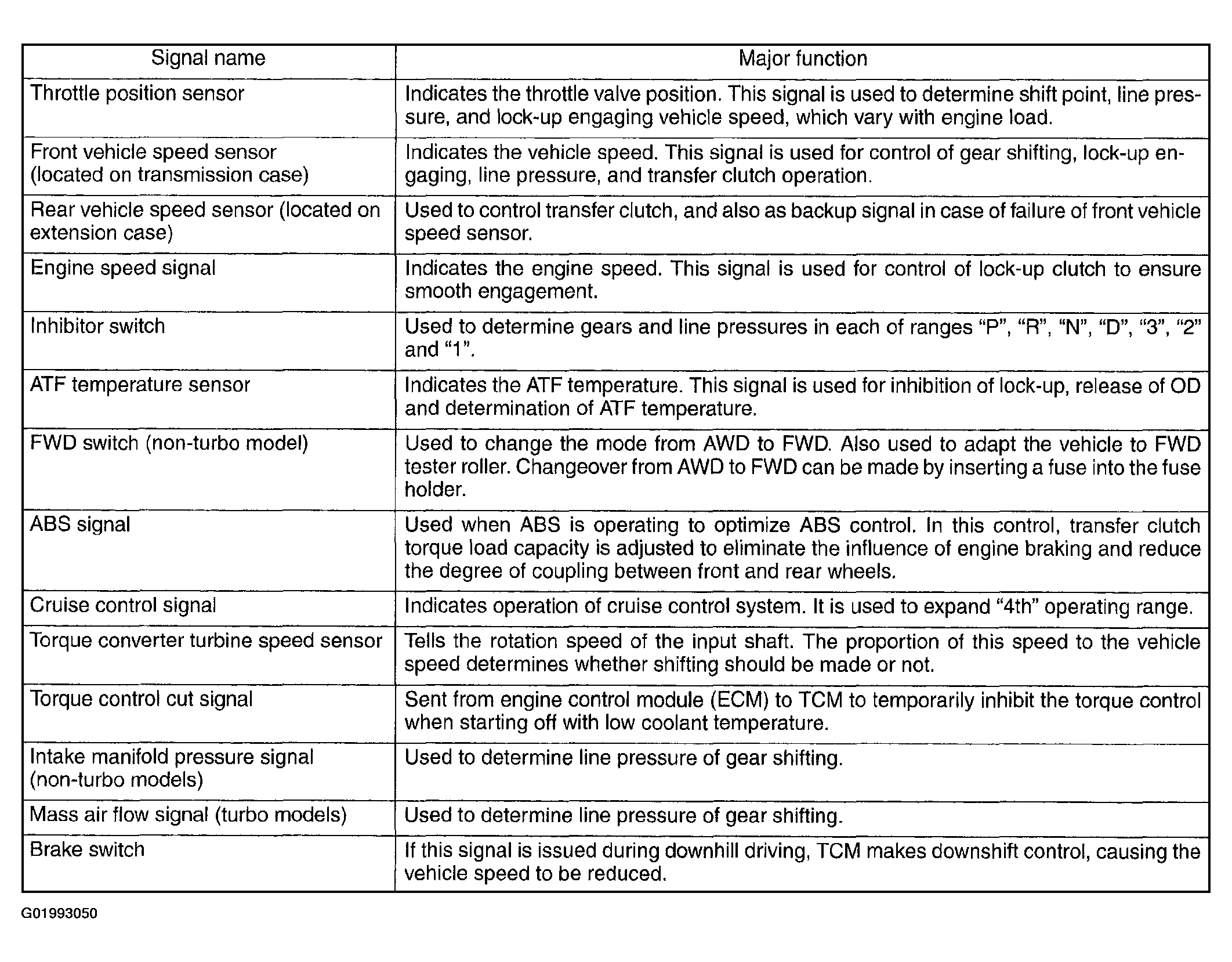

Fig 1: Electrohydraulic Control System Input Signals chart
Courtesy of SUBARU OF AMERICA, INC.
