Anti-Lock Brake Systems: General Description: Components: Sensor

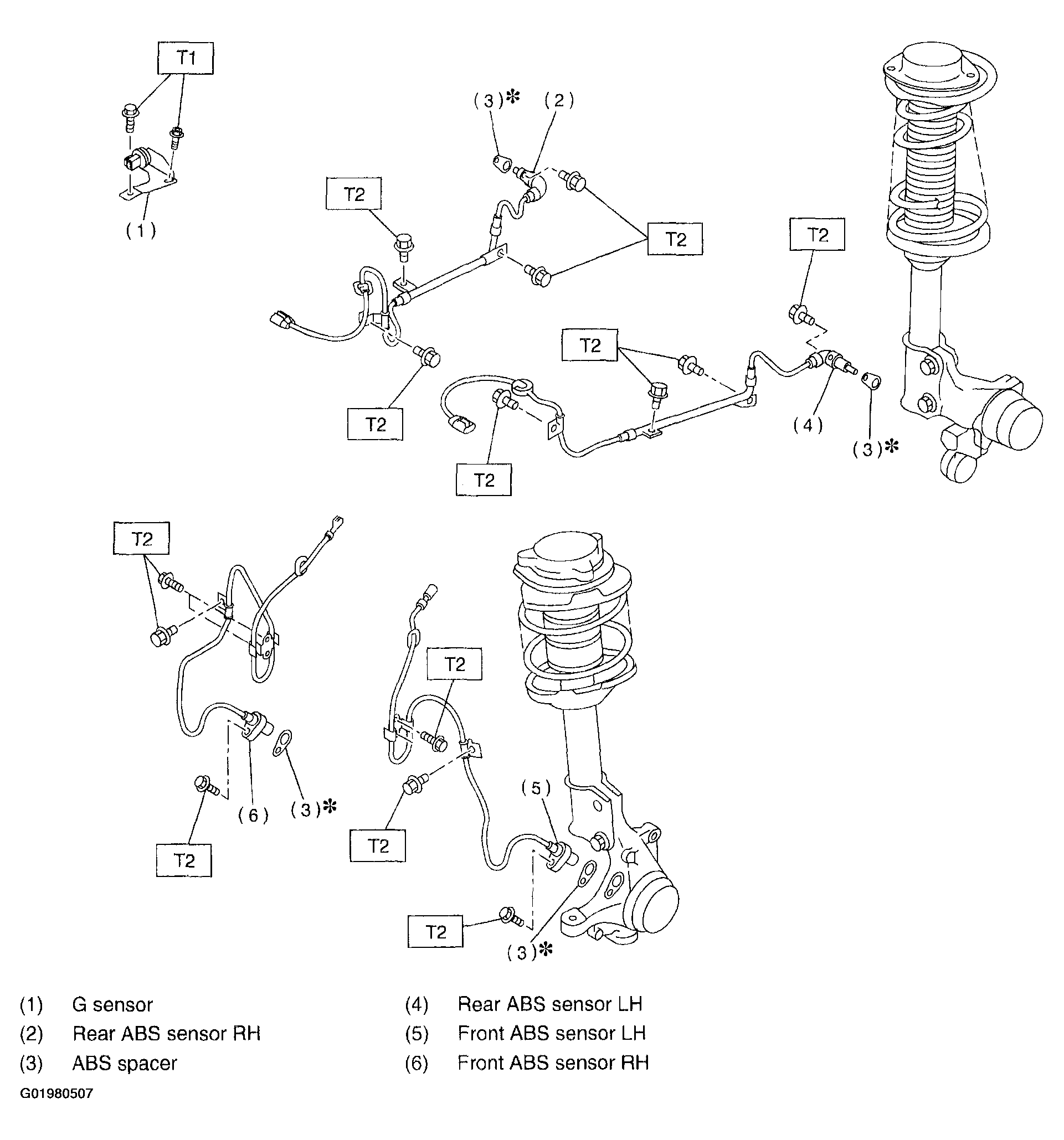

Fig 1: Identifying Sensor Components
G01980507Courtesy of SUBARU OF AMERICA, INC.
