Diagnostics Chart with Subaru Select Monitor
>>
Communication For Initializing Impossible
>>
Diagnostic Procedures:
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Diagnostic Procedures:

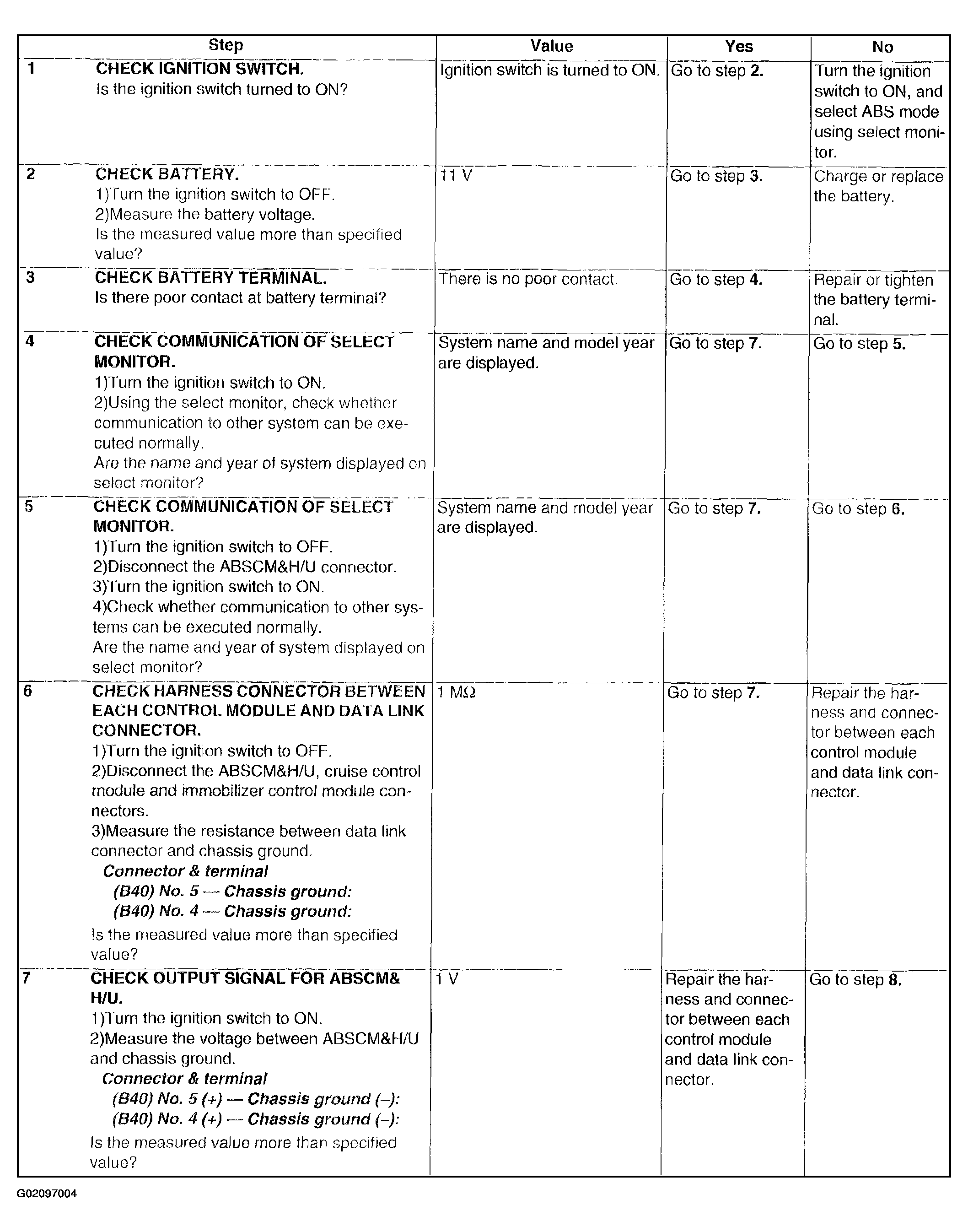

Fig 1: Communication For Initializing Impossible Diagnostic Procedure Chart (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

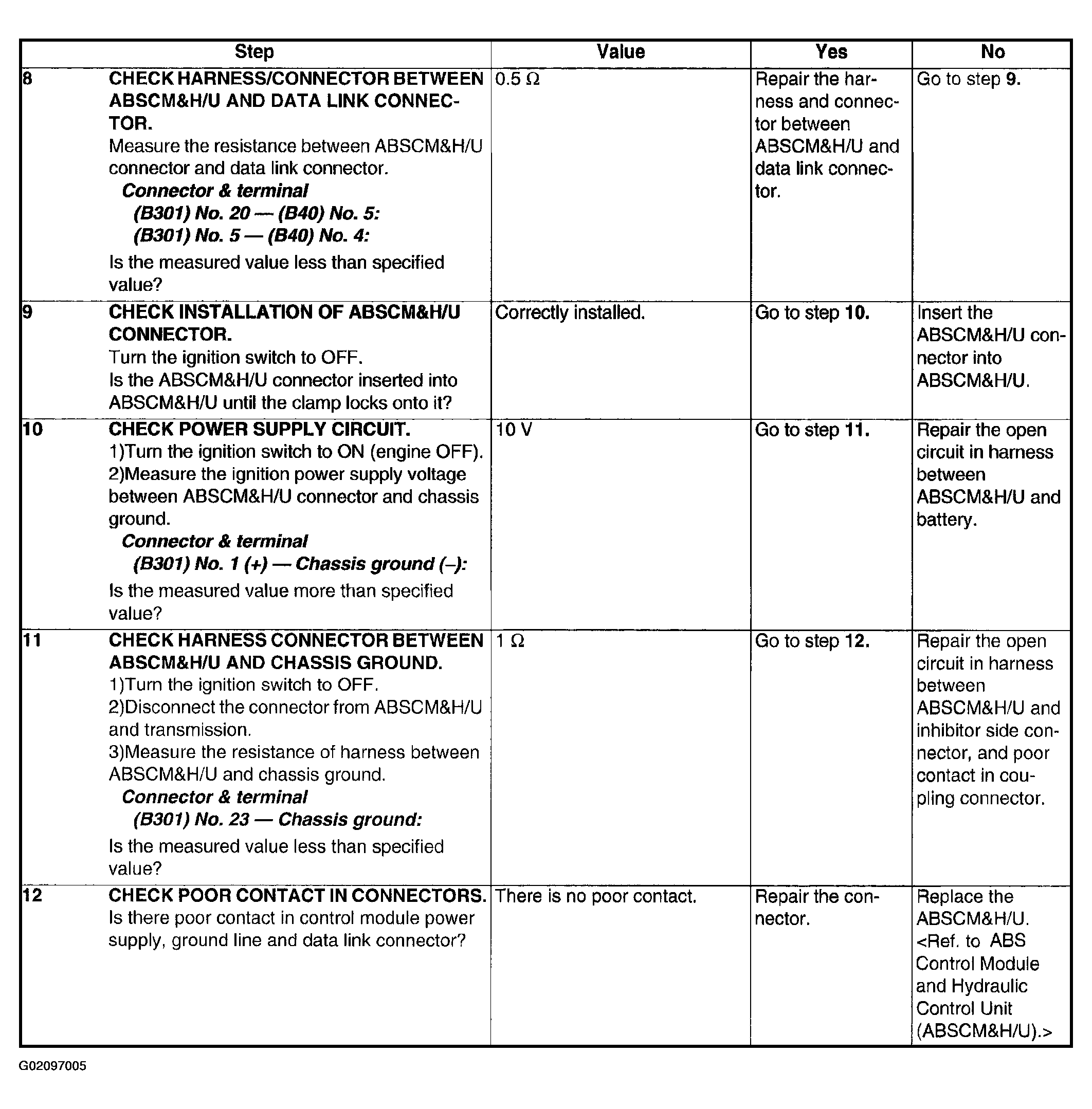

Fig 2: Communication For Initializing Impossible Diagnostic Procedure Chart (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
